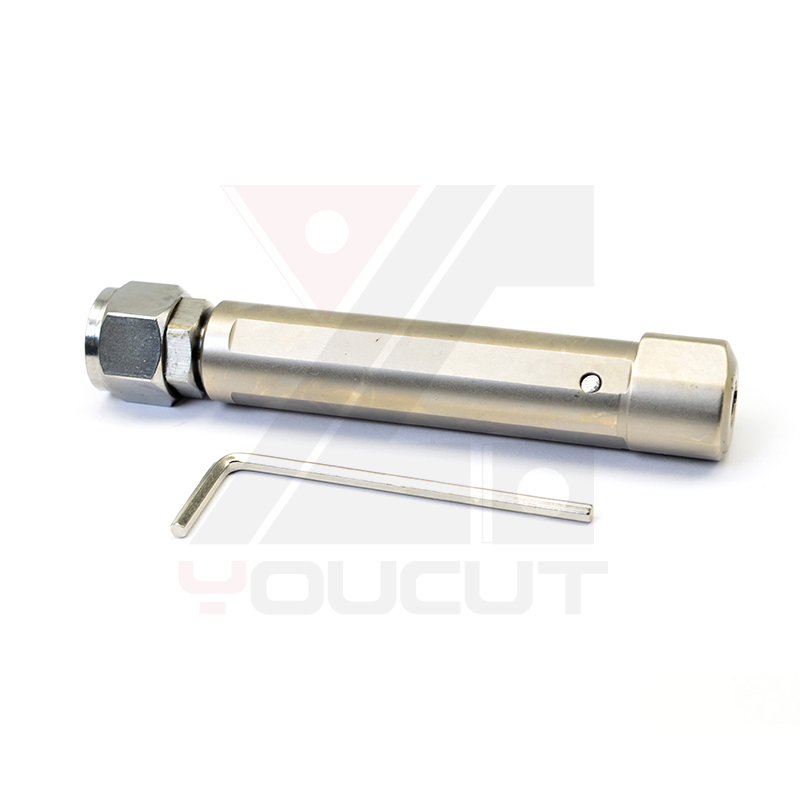

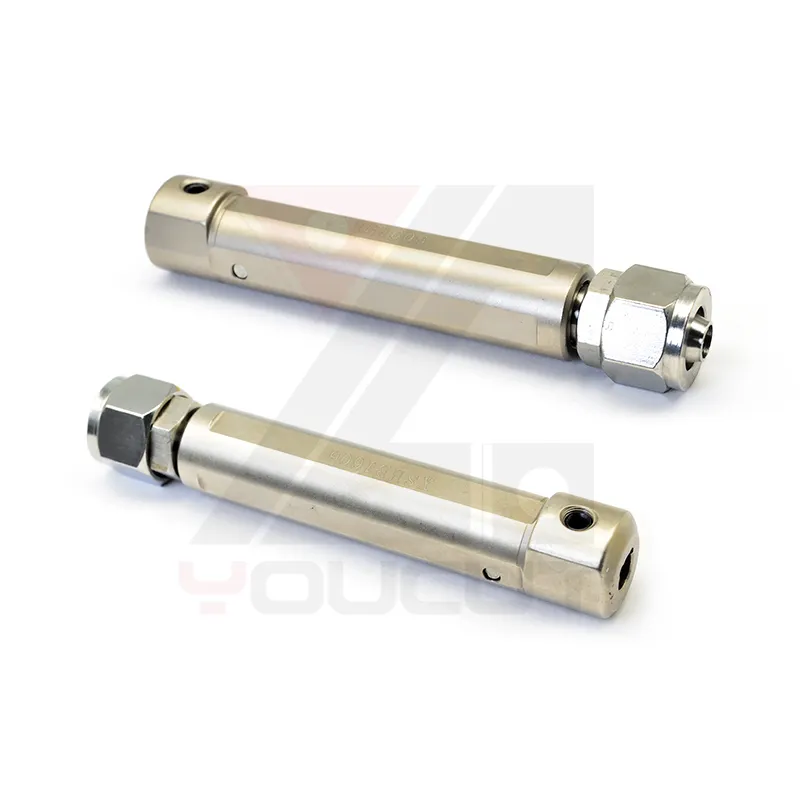

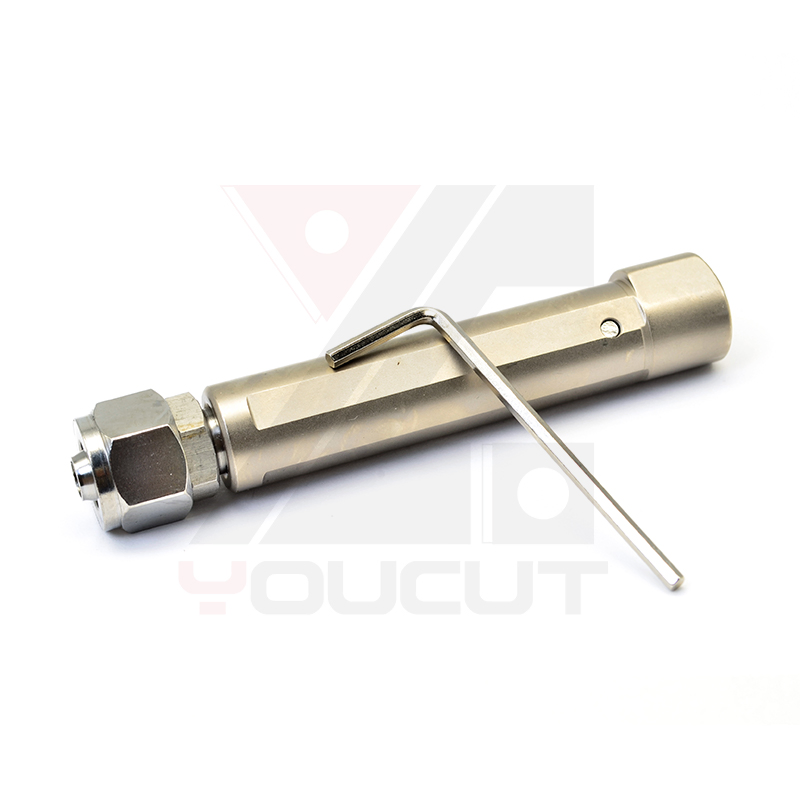

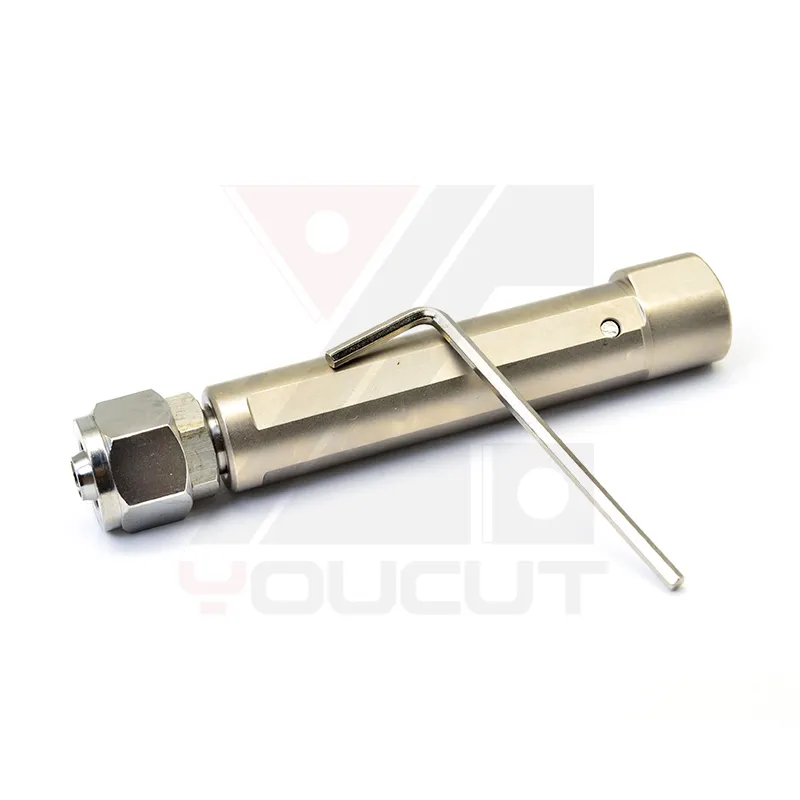

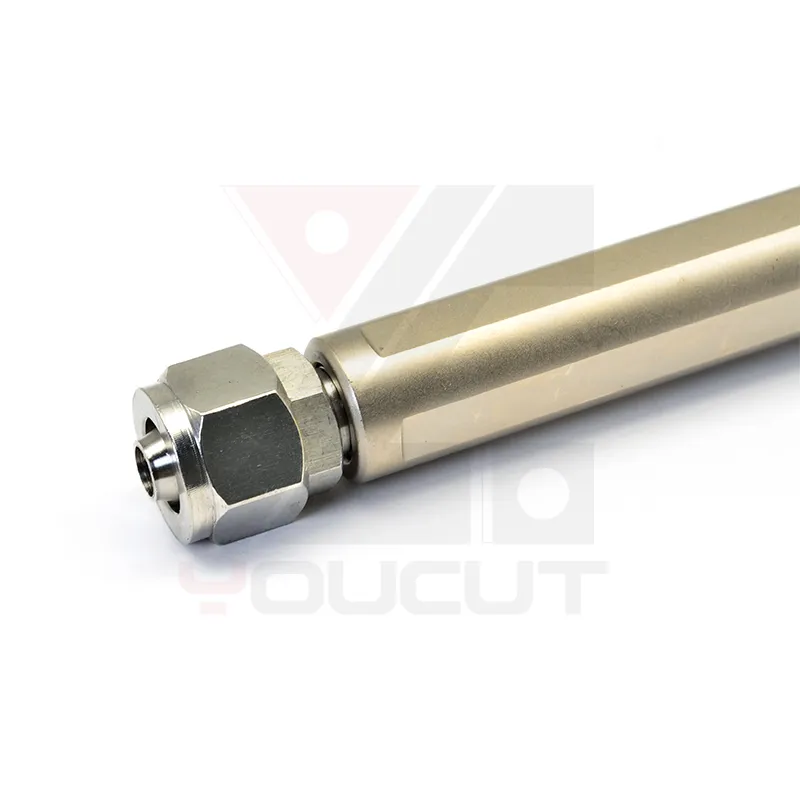

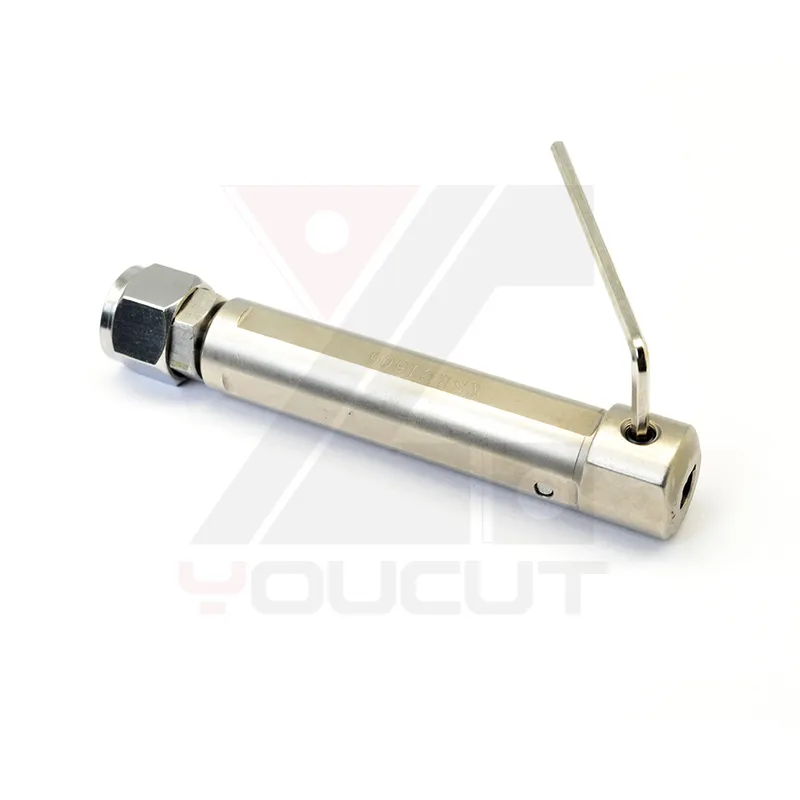

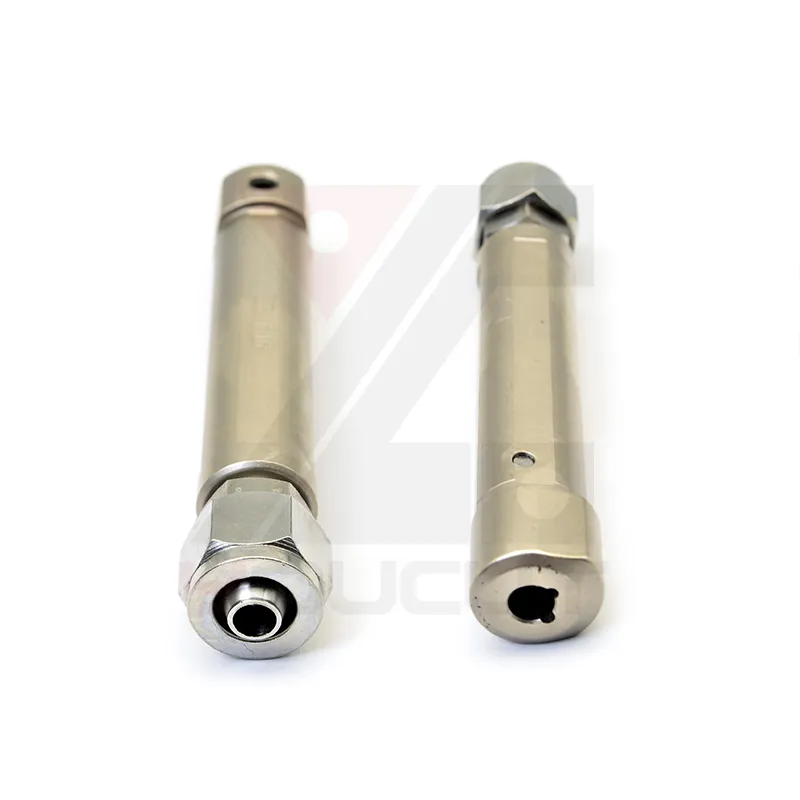

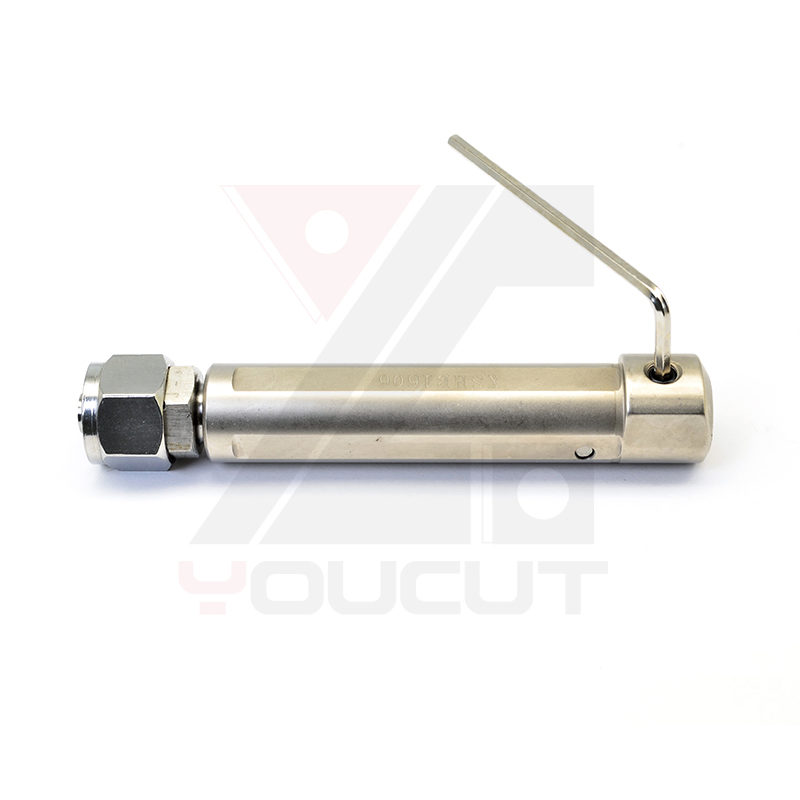

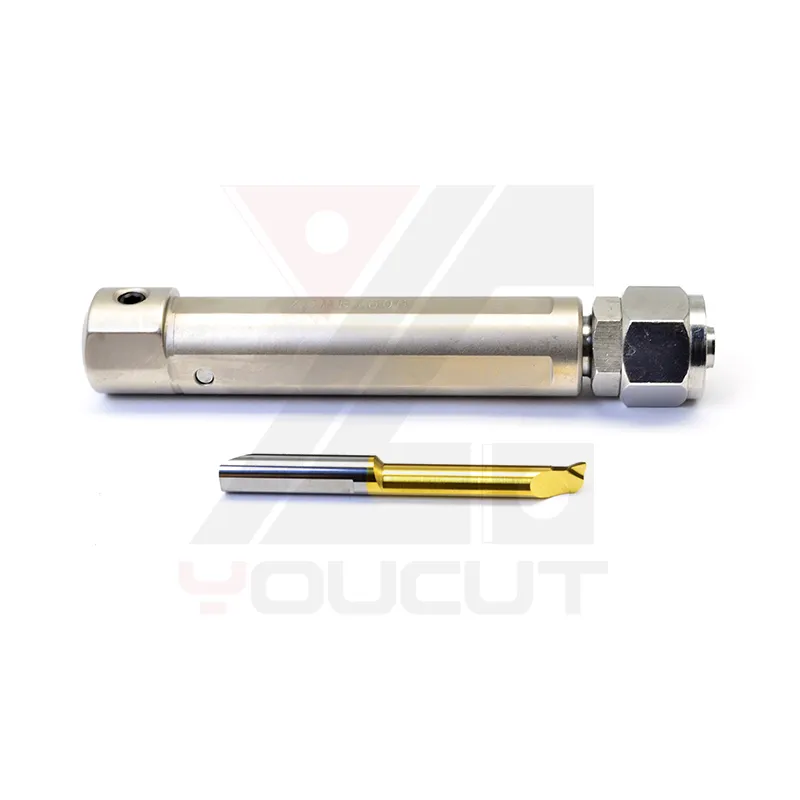

The XSHB1606 rear inclined plane positioning toolholder is a specialized accessory engineered for precise clamping, storage, and positioning of CNC cutting tools (e.g., end mills, drills, boring tools). Its design ensures smooth tool insertion while protecting both the sleeve and tool shank from wear.

Ideal for CNC machining centers, automated production lines, and tool libraries, this sleeve bridges the gap between tool storage and machining accuracy, ensuring consistent tool alignment for stable cutting performance.

Key Application Scenarios

• CNC Machining Centers: Secures 16mm-shank tools during non-use storage, preventing shank deformation and maintaining tool concentricity.
• Automatic Tool Changer (ATC) Systems: Compatible with ATC tool magazines, delivering ≤0.005mm repeat positioning accuracy to minimize tool changeover time.
• Tool Library Management: Organizes precision cutting tools with clear model marking (XSHB1606) for quick identification.
• High-Precision Machining: Supports critical processes like mold cavity machining and aerospace component drilling.

Core Advantages

• Rear Chamfered Design: The 45° rear chamfer eliminates sharp edges, guiding 16mm tool shanks into place without jamming or scraping.
• Exceptional Locating Precision: Features a ground inner bore with H7 tolerance and repeat positioning accuracy of ≤0.005mm.
• Stable Clamping Performance: Made from high-strength aluminum alloy (6061-T6) or hardened steel, providing uniform clamping force.
• Broad Compatibility: Fits standard 16mm-diameter tool shanks and is compatible with most CNC tool magazines.
• Durable Surface Treatment: Coated with anodized oxide or zinc-nickel plating to resist corrosion and oil contamination.

Performance Advantages

Certifications: ISO 9001. Trusted by 1,000+ CNC workshops globally.

Packaging: Products are packed in plastic boxes (10 pcs/box), wrapped in bubble wraps, and sealed in thickened hard paper cartons.

Shipping: We use FedEx, TNT, DHL, and UPS for fast delivery (5-15 days to any country). Standard specifications ship within 24 hours.

Payment: T/T, Western Union accepted.
