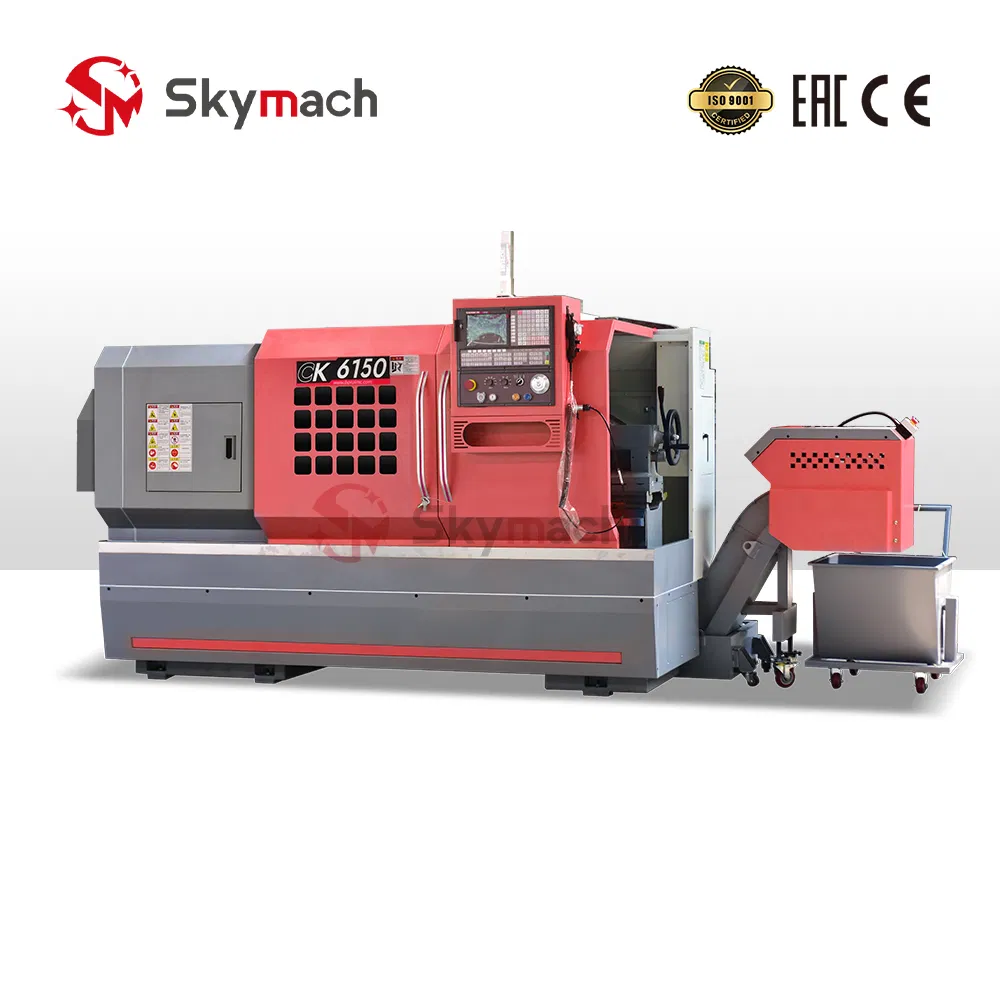

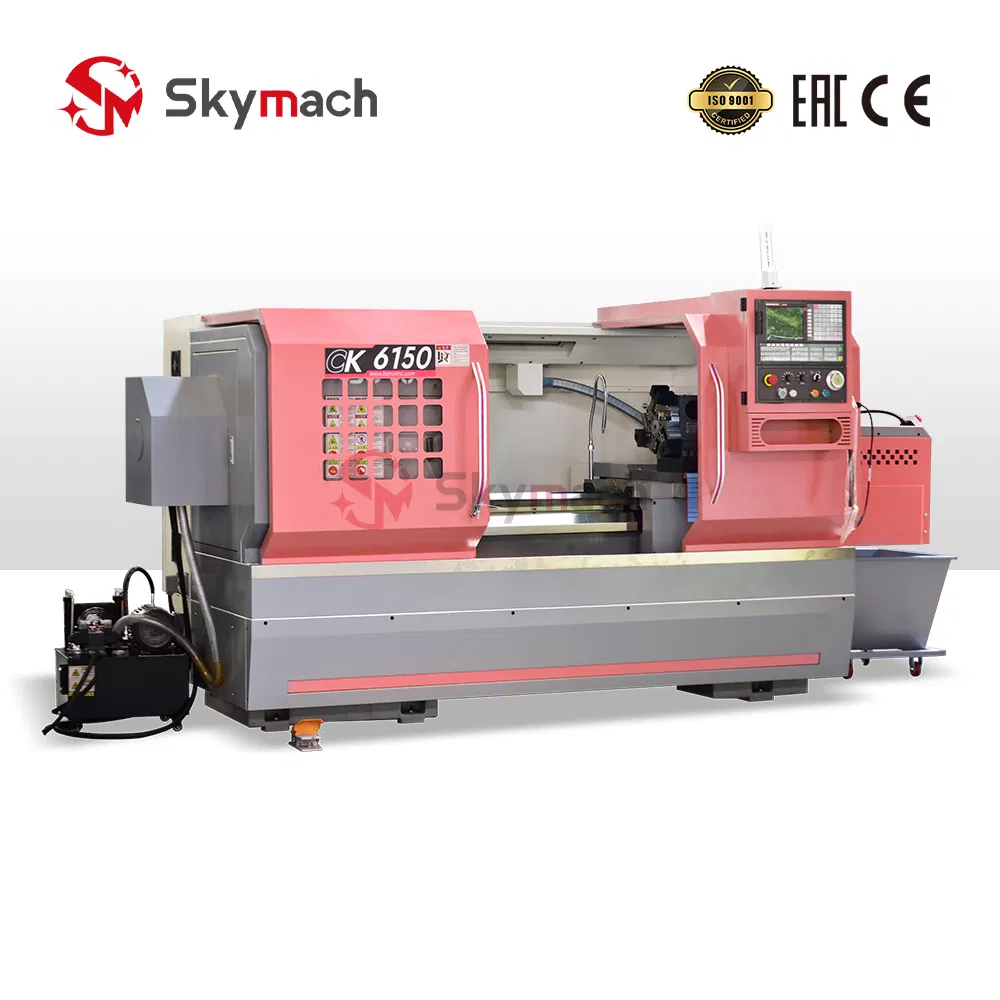

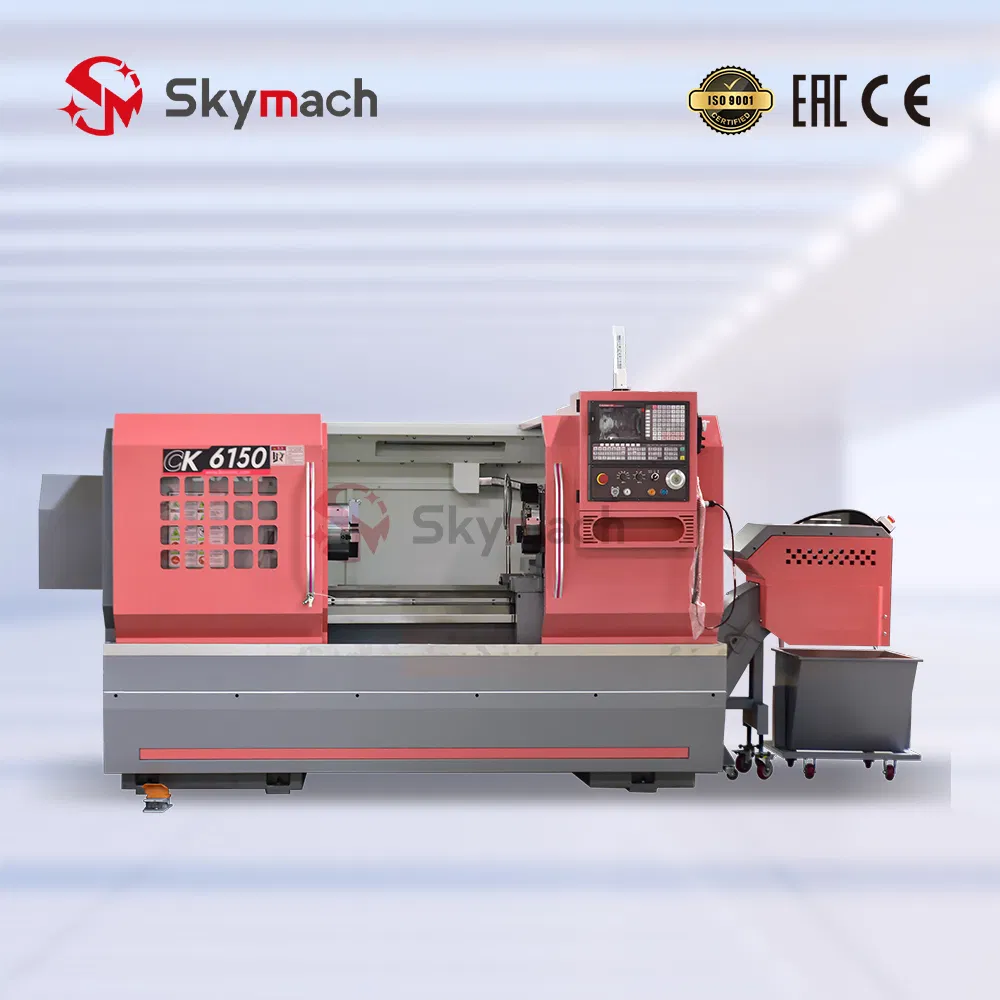

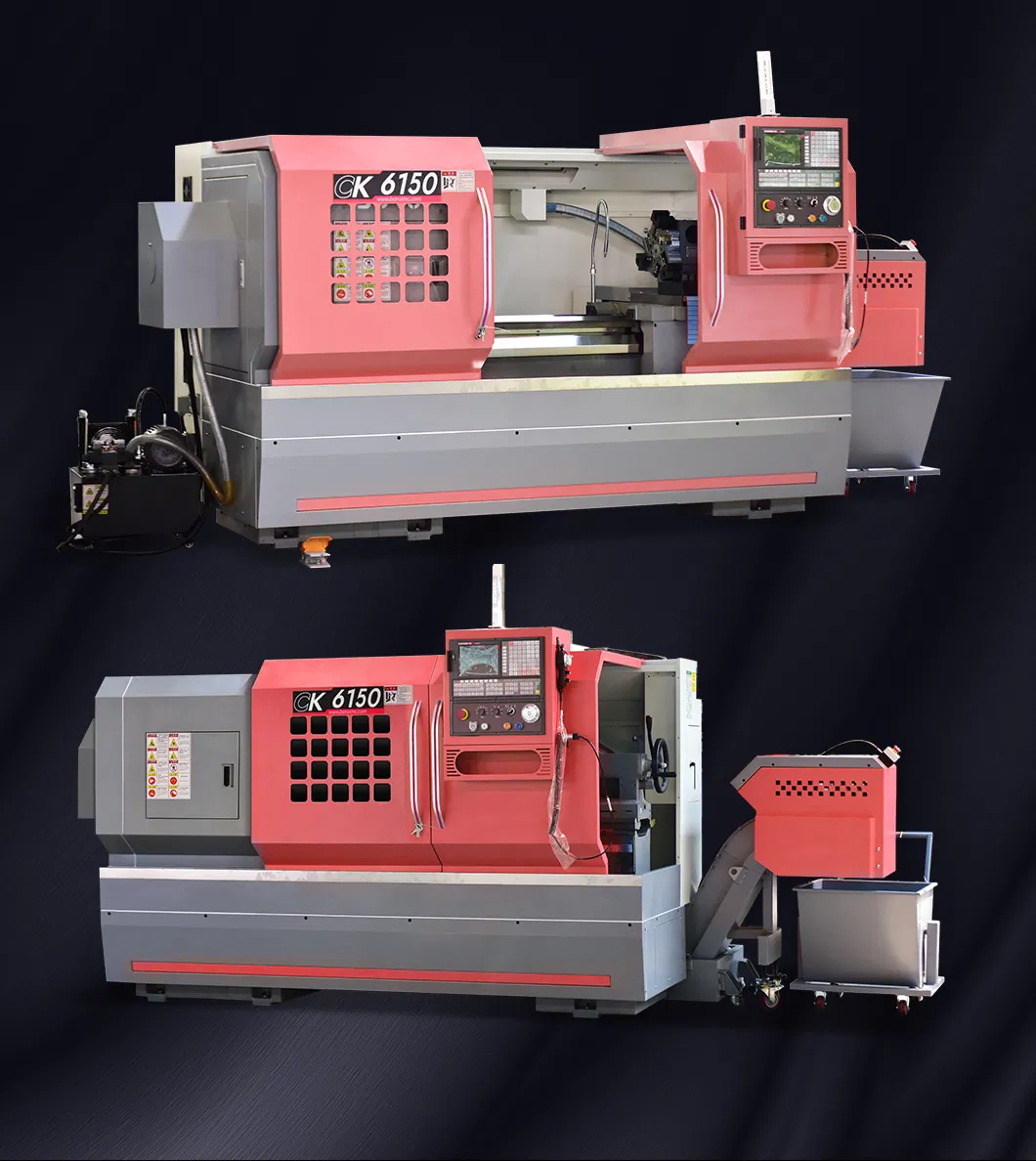

The CK6150 is a high-performance CNC Flat Bed Lathe Machine designed for precision metal-cutting. It offers semi-closed loop control and features a point-to-point movement method, making it an ideal choice for economical yet high-precision machining tasks.

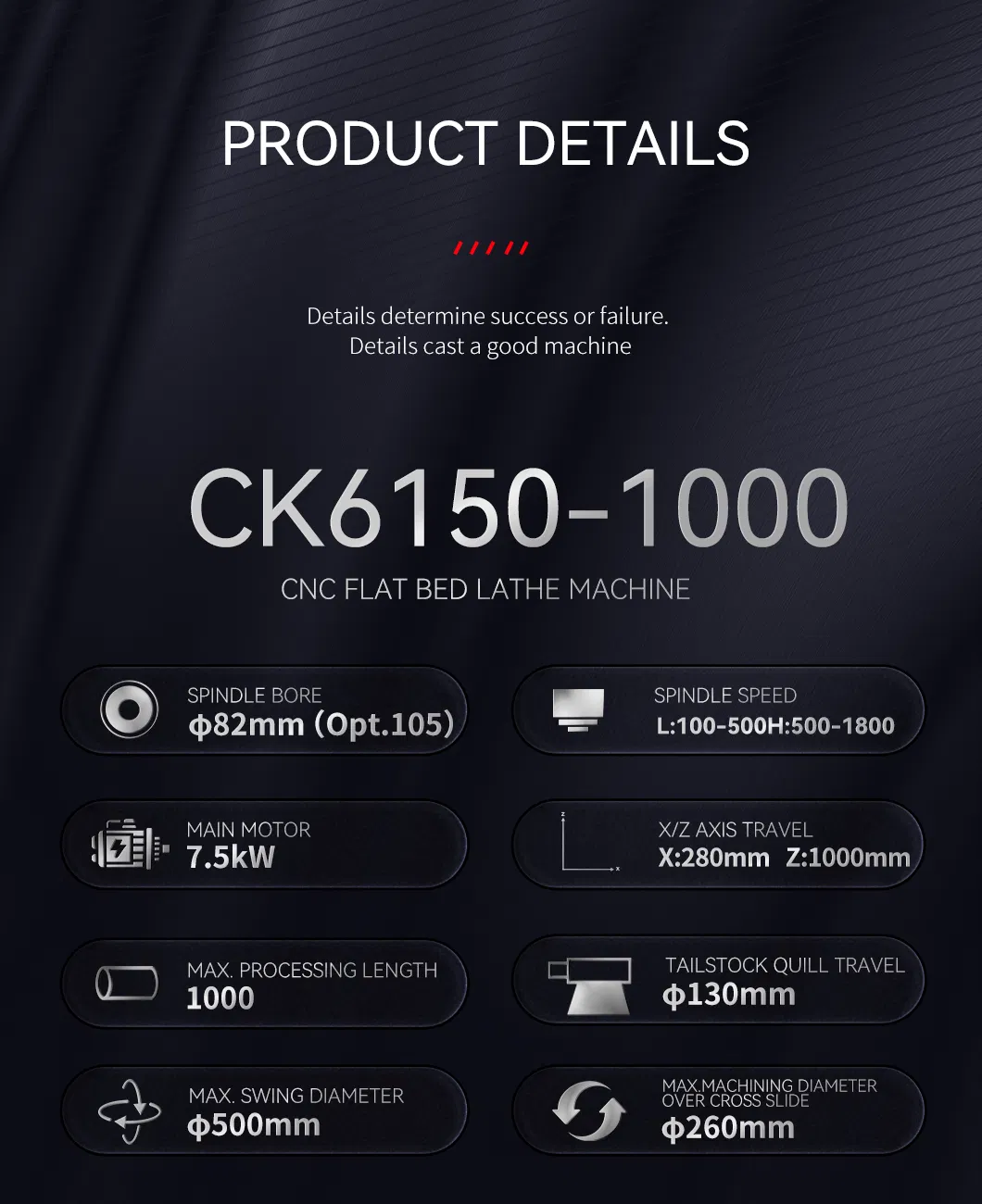

| Main Technical Parameters | Unit | CK6150B-1500 |
|---|---|---|
| Max. rotation diameter of bed | mm | Ф500 |
| Max. rotation diameter of slide plate | mm | Ф285 |
| Max. turning length | mm | 350 - 2850 |
| Max. distance between centers | mm | 500 - 3000 |
| Max. diameter of bar stock through spindle | mm | Ф80 |
| Max. travel of X-axis (horizontal) | mm | 330 |
| Max. travel of Z-axis (vertical) | mm | 500 - 3000 |
| Guide rail width | mm | 400 |
| Spindle hole diameter | mm | Ф82 (Optional Ф77) |
| Spindle speed (three gears) | r/min | 65-210 / 195-620 / 510-1600 |

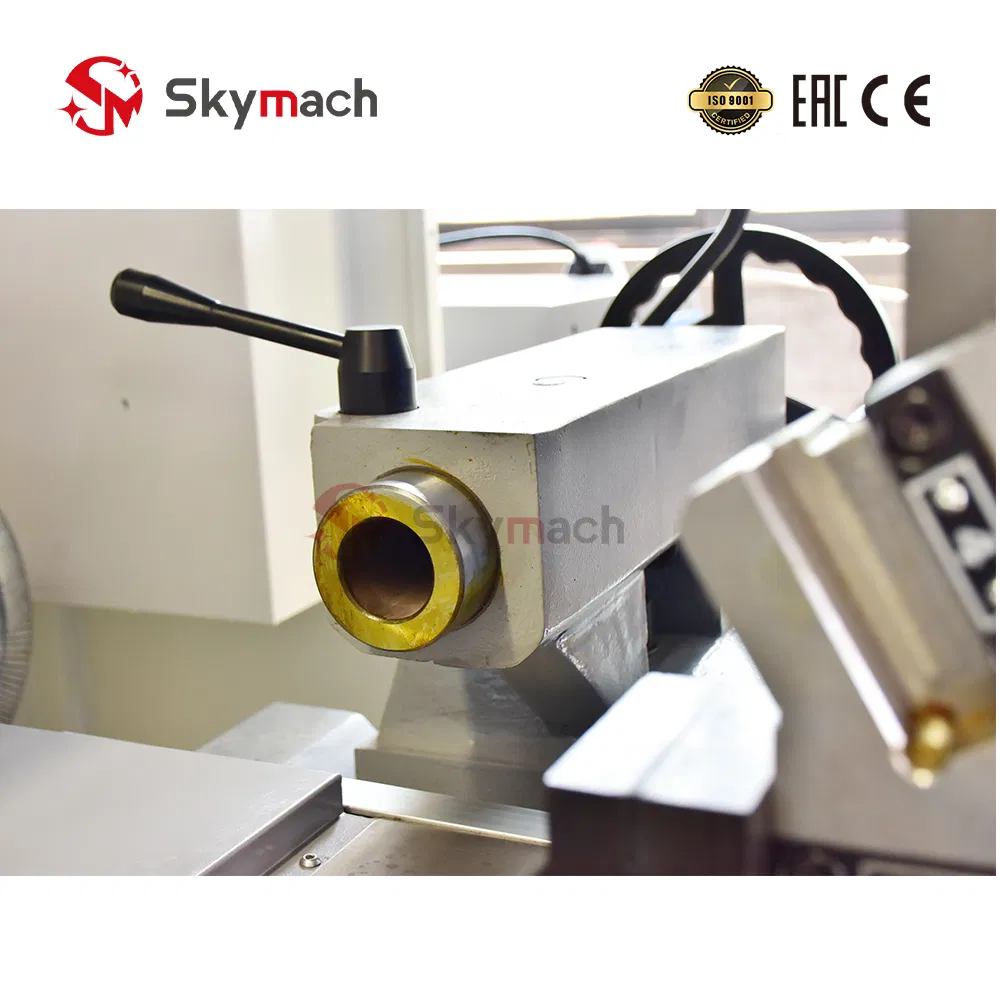

| Tailstock sleeve travel | mm | 150 |
| Net weight | KG | 1650 - 2950 |
