Product Description

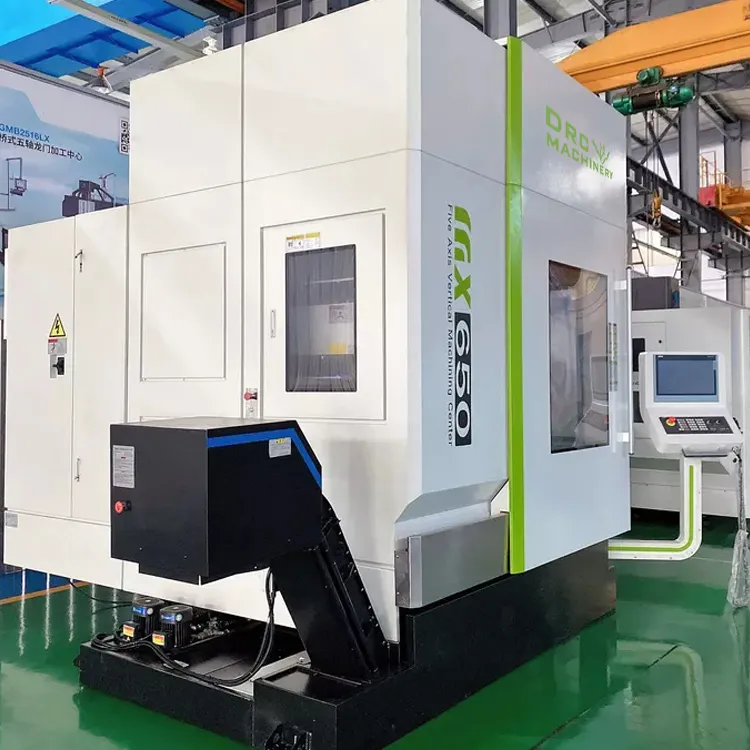

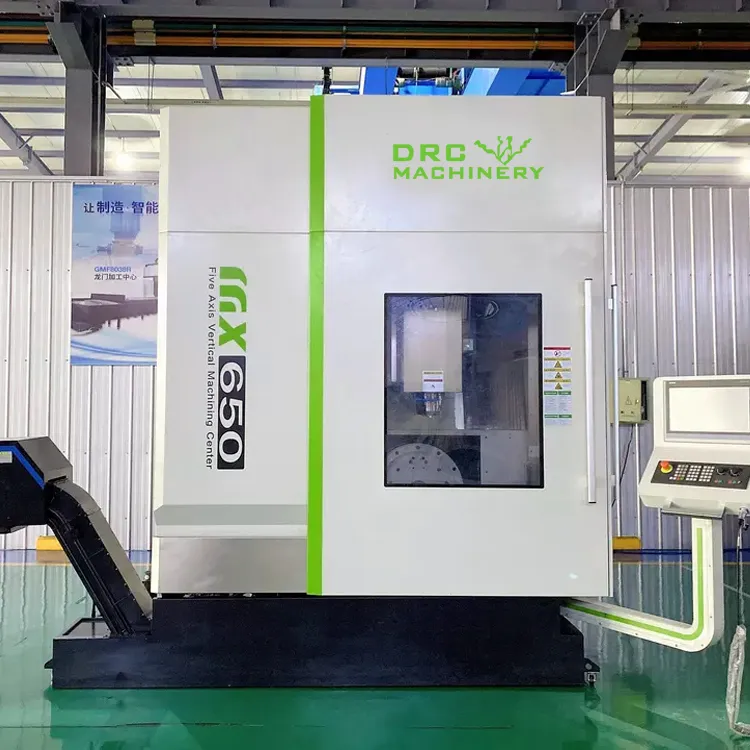

MX650 CNC Vertical Milling Machine Center for Complex Surface Processing

●

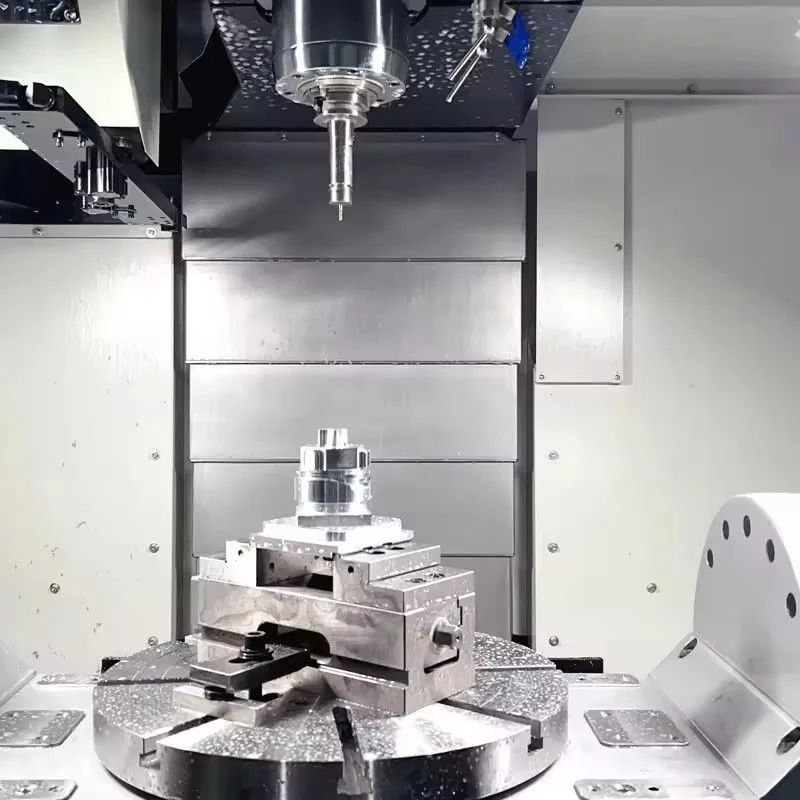

5-Axis Linkage: Full closed-loop control, suitable for complex surface machining of precision molds.
●

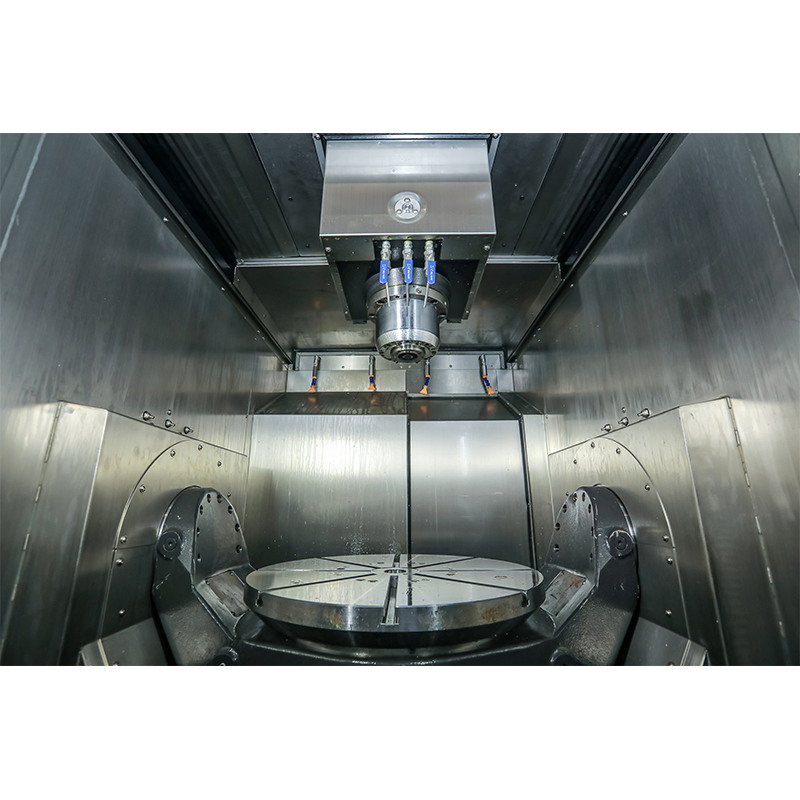

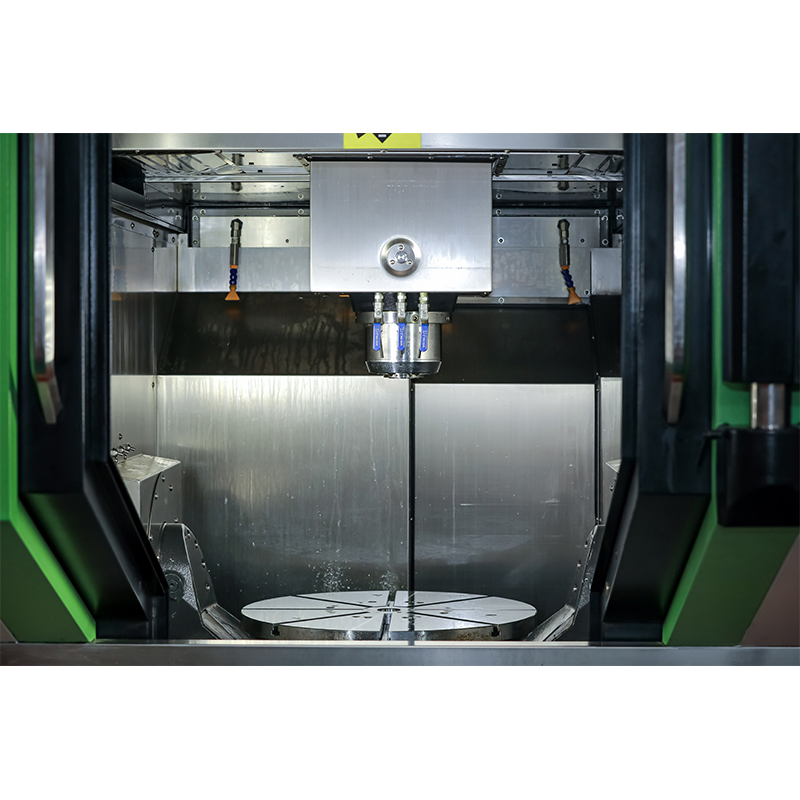

Optimized Layout: Forward cantilever and longitudinal cradle layout, with the straight spindle separated from the processing area for best dynamic performance.
●

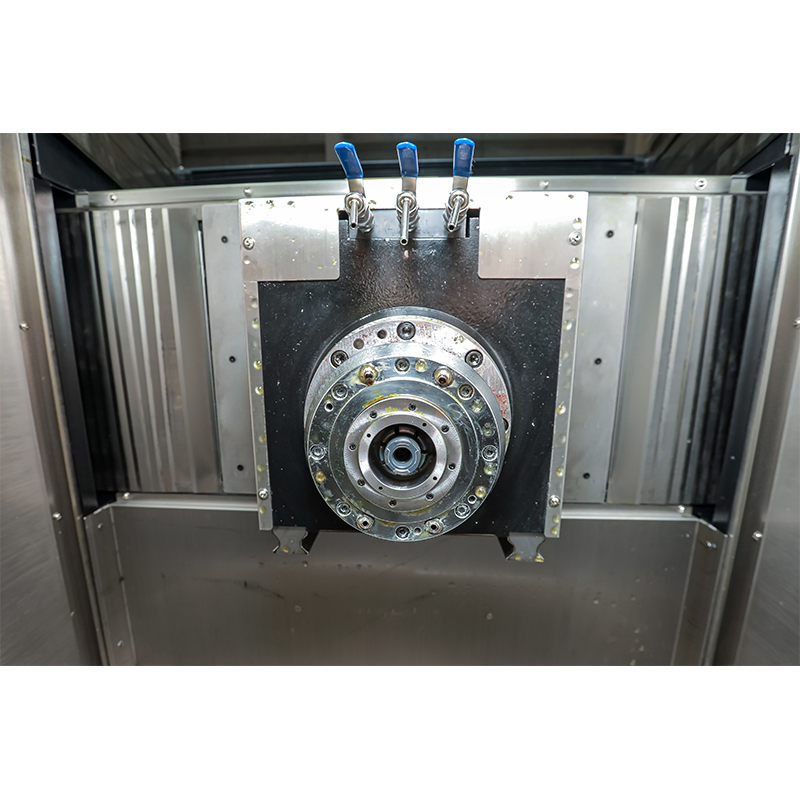

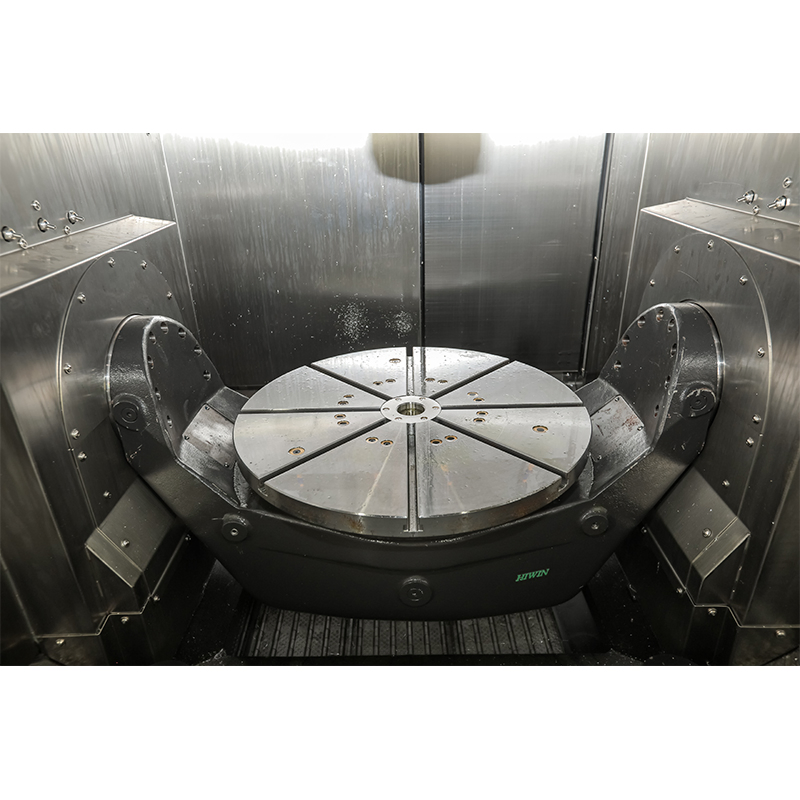

High Precision: B and C axis driven by precision worm gear transmission with Heidenhain circular grating for accuracy retention.
●
Heavy Load Stability: Worktable equipped with tailstock unit to maintain high precision under full load.
●

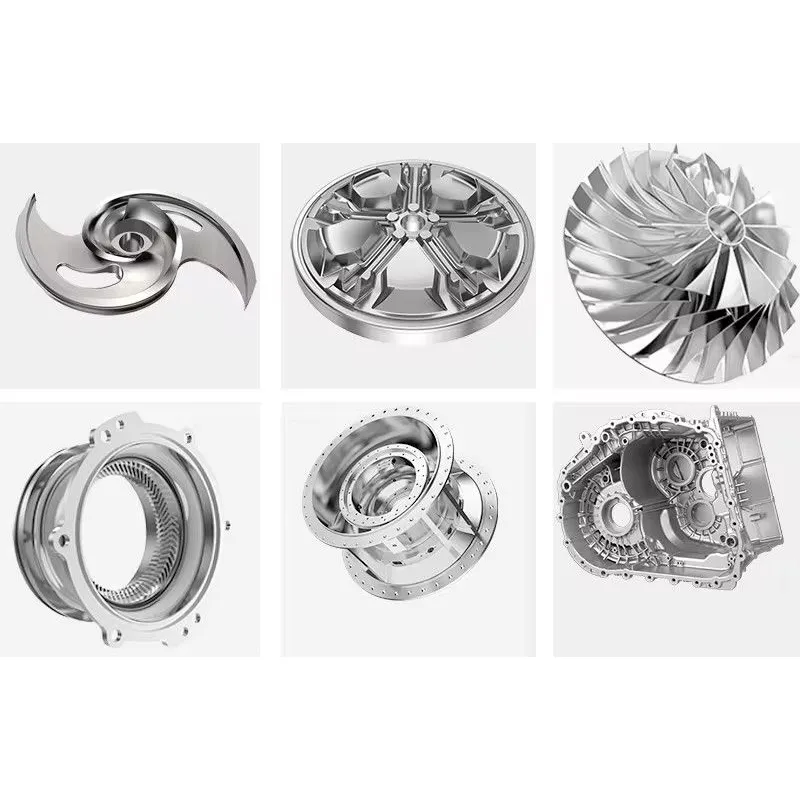

Versatile Application: High torque and quick response, suitable for automobile, mould, aerospace, and hardware industries.

Technical Specifications

Parameter Item	Unit	MX650 Specification
Worktable
Table size	mm	600
Max. load on worktable	kg	350
T-slot	mm	5-14*100
Travel
X-axis / Y-axis / Z-axis	mm	650 / 550 / 500
B-axis Range	deg	-40° / +110°
C-axis Range	deg	360°
Spindle
Spindle taper	-	BT40
Rotating spindle speed	rpm	15000
Spindle motor	kw	11
Feed Speed
Fast feed speed	m/min	36
Max rotation speed (B/C axis)	rpm	25
Tool Magazine
Capacity of tool magazine	pcs	40
Max. tool weight / length	kg/mm	8 / 200
Tool change time	sec	2.5
Accuracy
Positioning accuracy (X/Y/Z)	mm	0.008
Repeated Positioning accuracy (X/Y/Z)	mm	0.005
Control System
Control system	-	Siemens 840DSL

Frequently Asked Questions

1. What are the primary applications for the MX650 CNC center?

The MX650 is designed for complex surface machining of precision molds, making it ideal for the automobile, aerospace, hardware, and various mechanical processing fields.

2. Which control system does this machine utilize?

The machine is equipped with the high-end Siemens 840DSL control system, offering reliable performance and precise operation.

3. What is the capacity of the tool magazine?

The MX650 features a large tool magazine capacity of 40 tools, with a fast tool change time of only 2.5 seconds.

4. How does the machine ensure high precision during 5-axis machining?

It uses full closed-loop control, precision worm gear transmissions for B and C axes, and Heidenhain circular gratings to ensure superior accuracy retention even under full load.

5. What is the maximum spindle speed and power?

The MX650 features a high-performance spindle with a rotating speed of up to 15,000 RPM and an 11 kW motor.

6. Is the machine suitable for heavy workpieces?

Yes, the worktable is designed to handle a maximum load of 350 kg and is equipped with a tailstock unit to maintain precision during heavy-duty operations.
