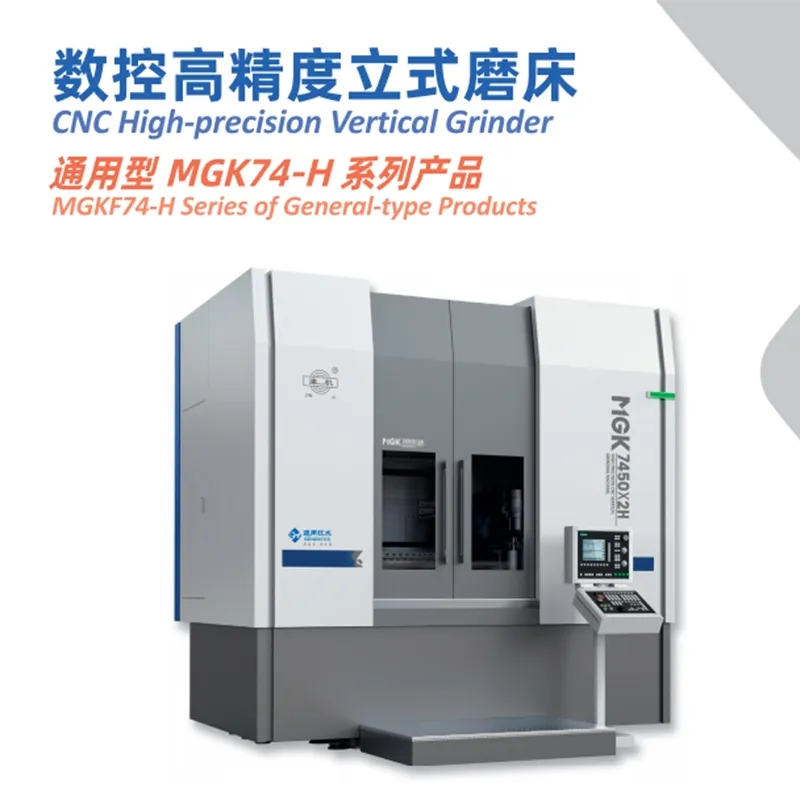

MGKF74-H Series of General-type Products
The MGKF74-H series of CNC high-precision vertical compound grinding centers features a novel and compact structural design, good rigidity, and strong practicability, achieving a high degree of integration of high precision, high speed, and high performance. This series of grinding machines can grind inner holes, outer circles, and end faces in one clamping. It has functions such as automatic tool changing, automatic workpiece measurement, and on-line dynamic balancing of the grinding wheel, enabling a wide processing range.
| Items | Unit | MGK7450H | MGK7463H | MGK7480H | MGK74100H |
|---|---|---|---|---|---|
| Worktable Dia. | mm | 500 | 630 | 800 | 1000 |
| Workpiece Height | mm | 300/400 | 300/400 | 450/600 | 650/800 |
| Max. Bearing Capacity | kg | 600 | 800 | 1500 | 3000 |
| Max. Rotation Speed | r/min | 120 | 120 | 100 | 80 |

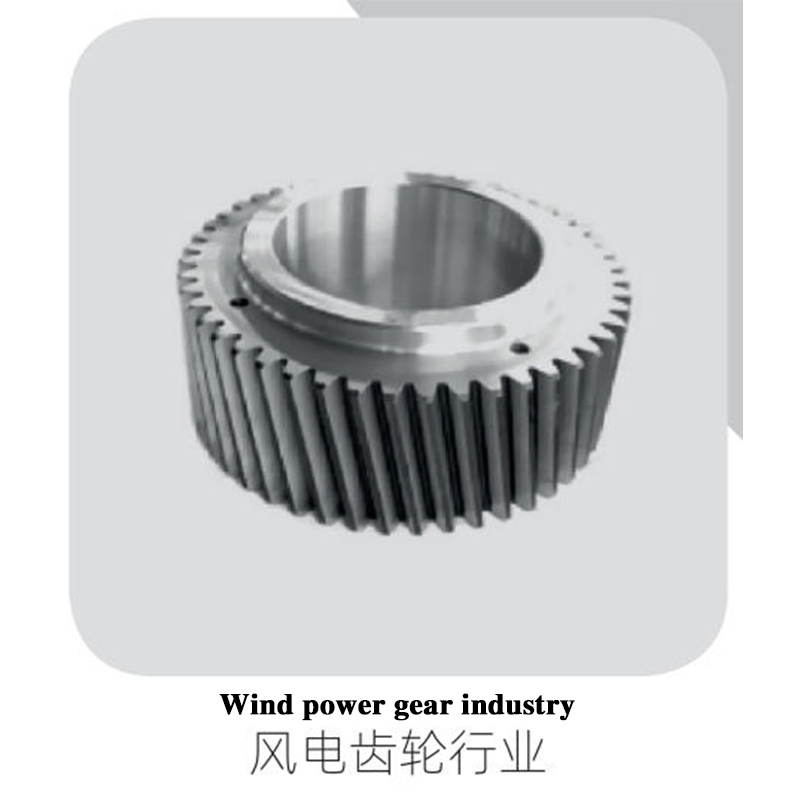

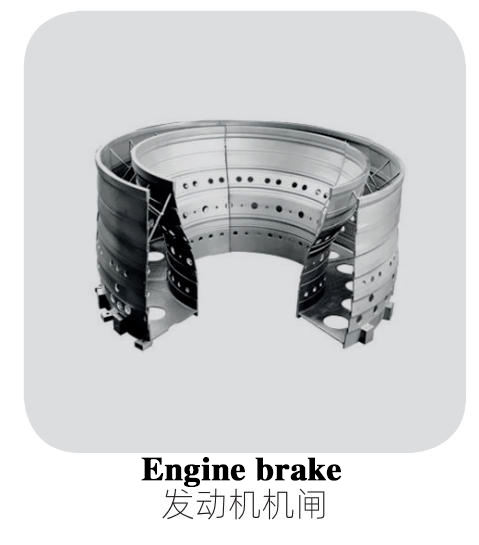

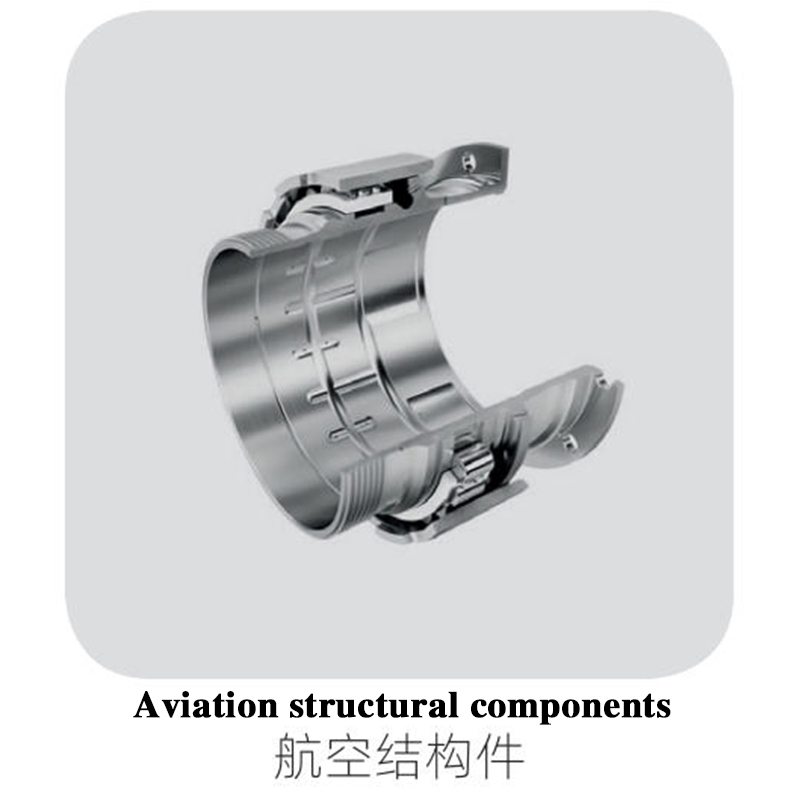

The machine tool is mainly used for the machining and grinding of engine shafts and disk-type parts. It can process materials such as titanium alloys, stainless steels, and high-temperature alloys. It is also suitable for circular disk-type parts and gear-type parts in industries like aerospace, precision machine tools, bearings, molds, automobiles, and new energy.
