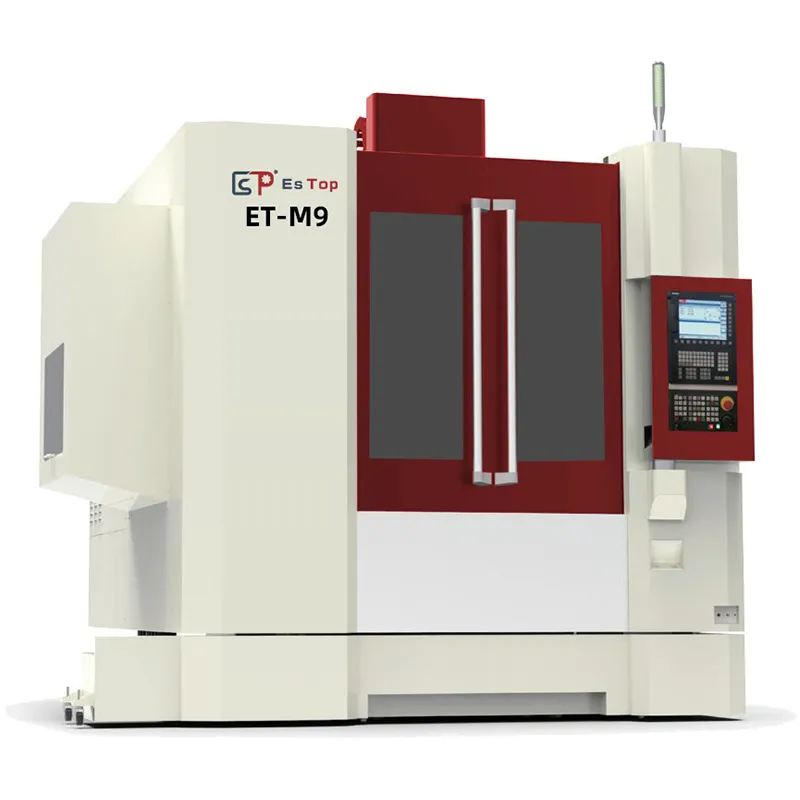

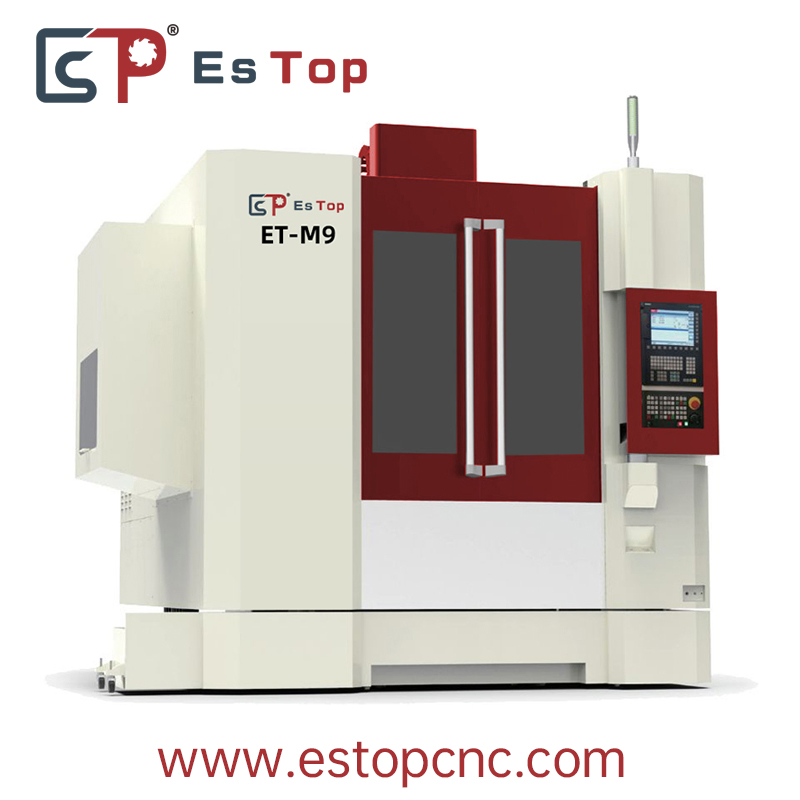

Robotic CNC
1 / 5

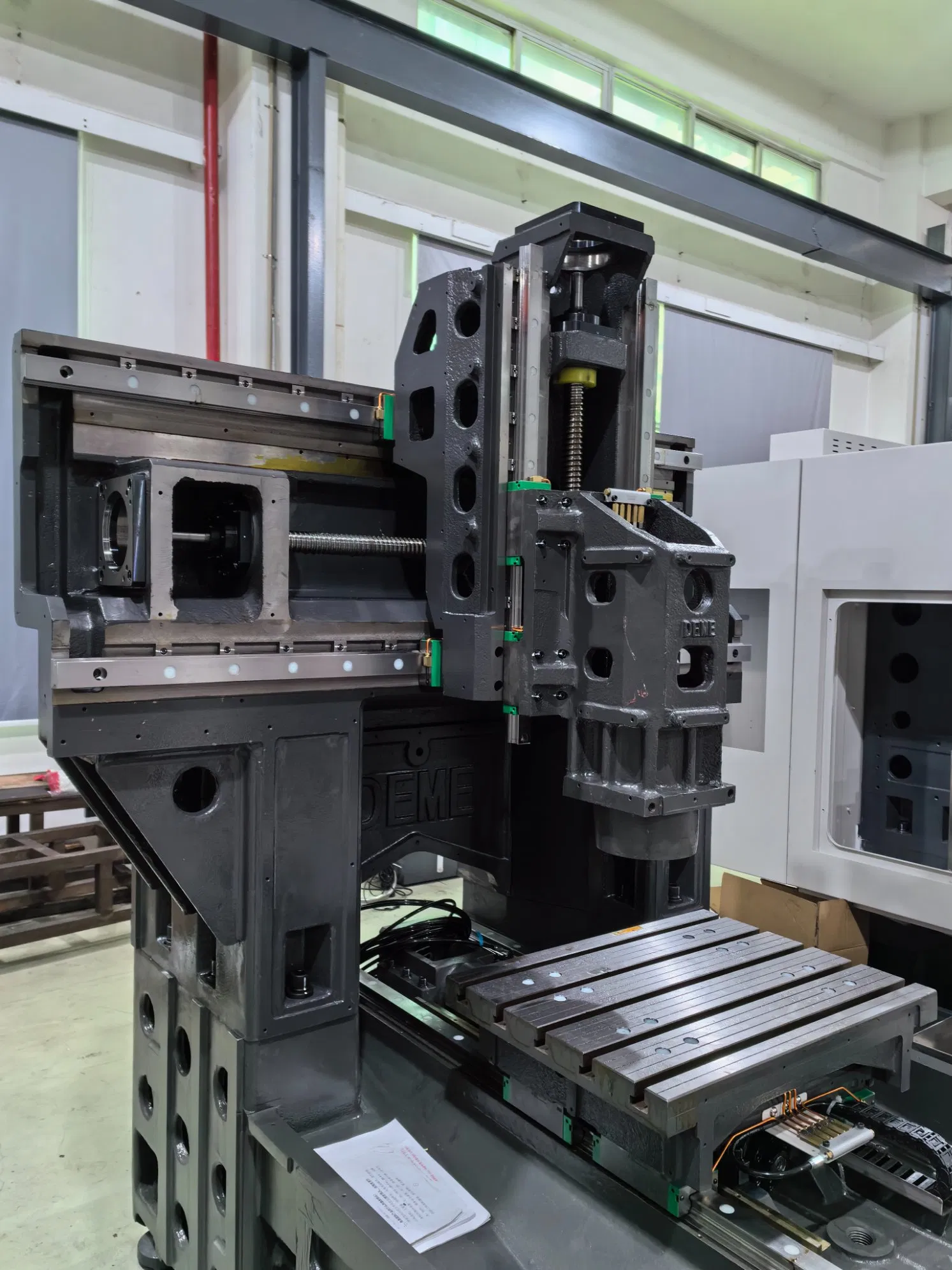

- Uses a granite bed with strong shock absorption and anti-magnetic interference capabilities.

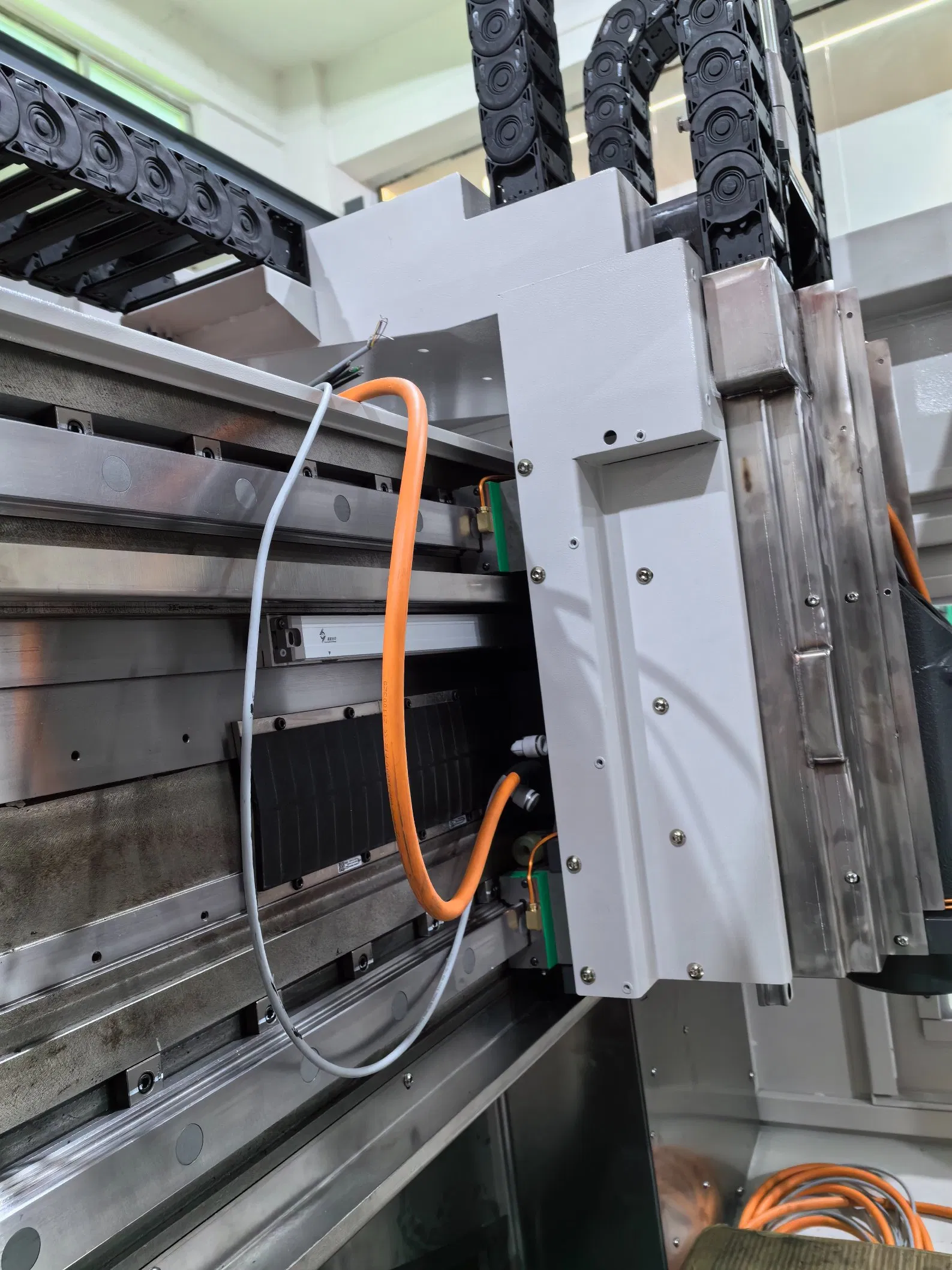

- Linear motor drive to achieve zero transmission and no backlash, achieving high-mirror effects.
- Equipped with a 24-tool magazine (optional 48 or 60) and automatic tool changing function.
- Plane error within 2μ and curved surface error within 5μ.

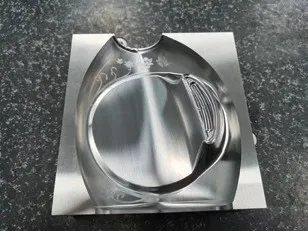

Perfect for industries such as precision mold, ultra-precision parts, semiconductor, medical, ceramics, graphite, and electronics.
| Type | Parameter | Unit | M9 Value |
|---|---|---|---|
| Travel | X / Y / Z axis | mm | 900 / 600 / 425 |
| Load | Worktable Dimension | mm | 940 * 600 |
| Load | Table Max Loading | kg | 700 |
| Spindle | Speed | rpm | 15000 |
| Spindle | Motor Power | kw | 9 |
| Accuracy | Positioning Accuracy | mm | ±0.0025 |
| Accuracy | Repeat Positioning | mm | ±0.0015 |
| Weight | Machine Weight | kg | 8500 |

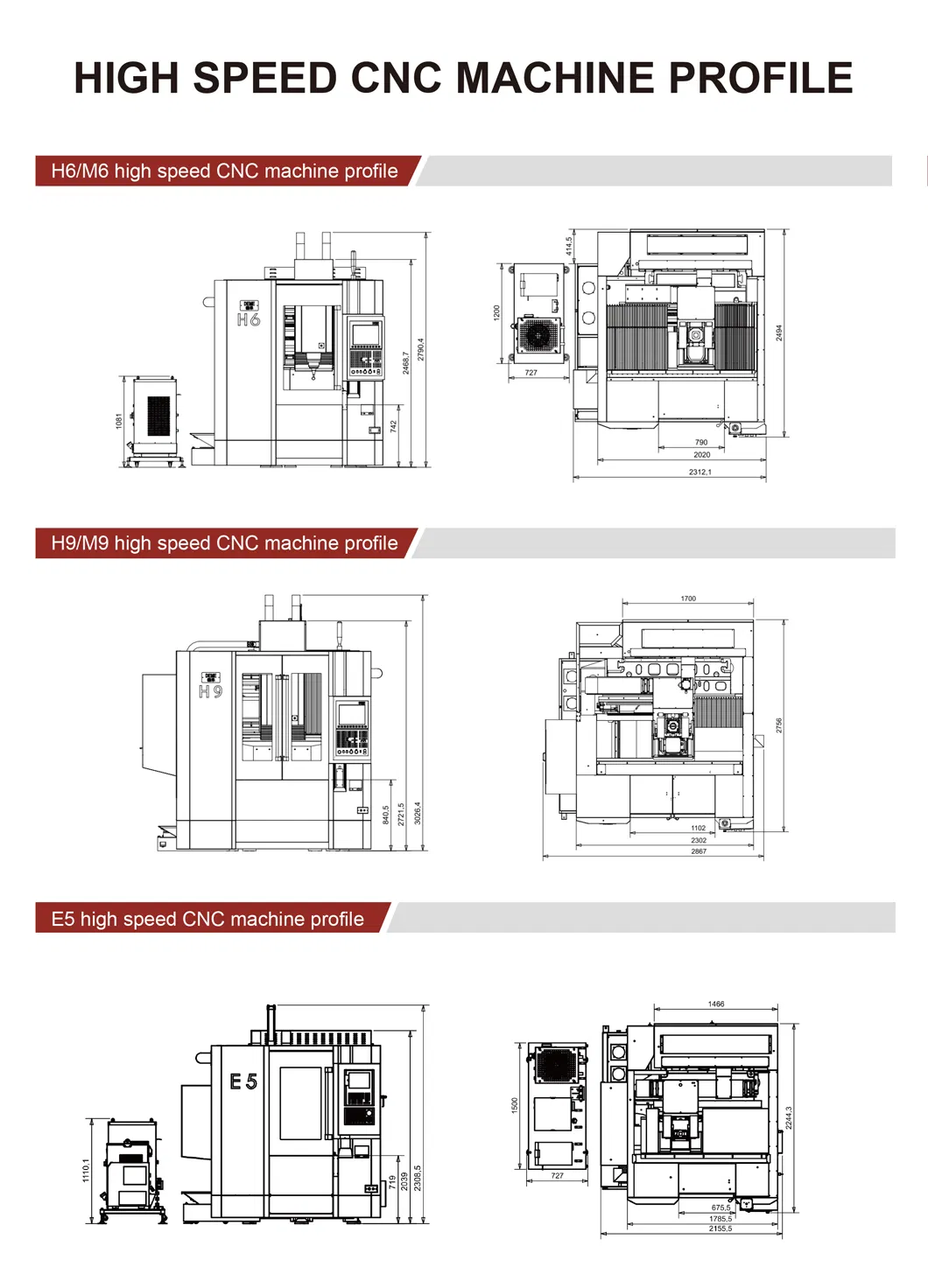

| Dimension | L * W * H | mm | 2600 * 2550 * 2800 |
* Technical parameters are subject to change without prior notice.
| Item | Name | Configuration |
|---|---|---|

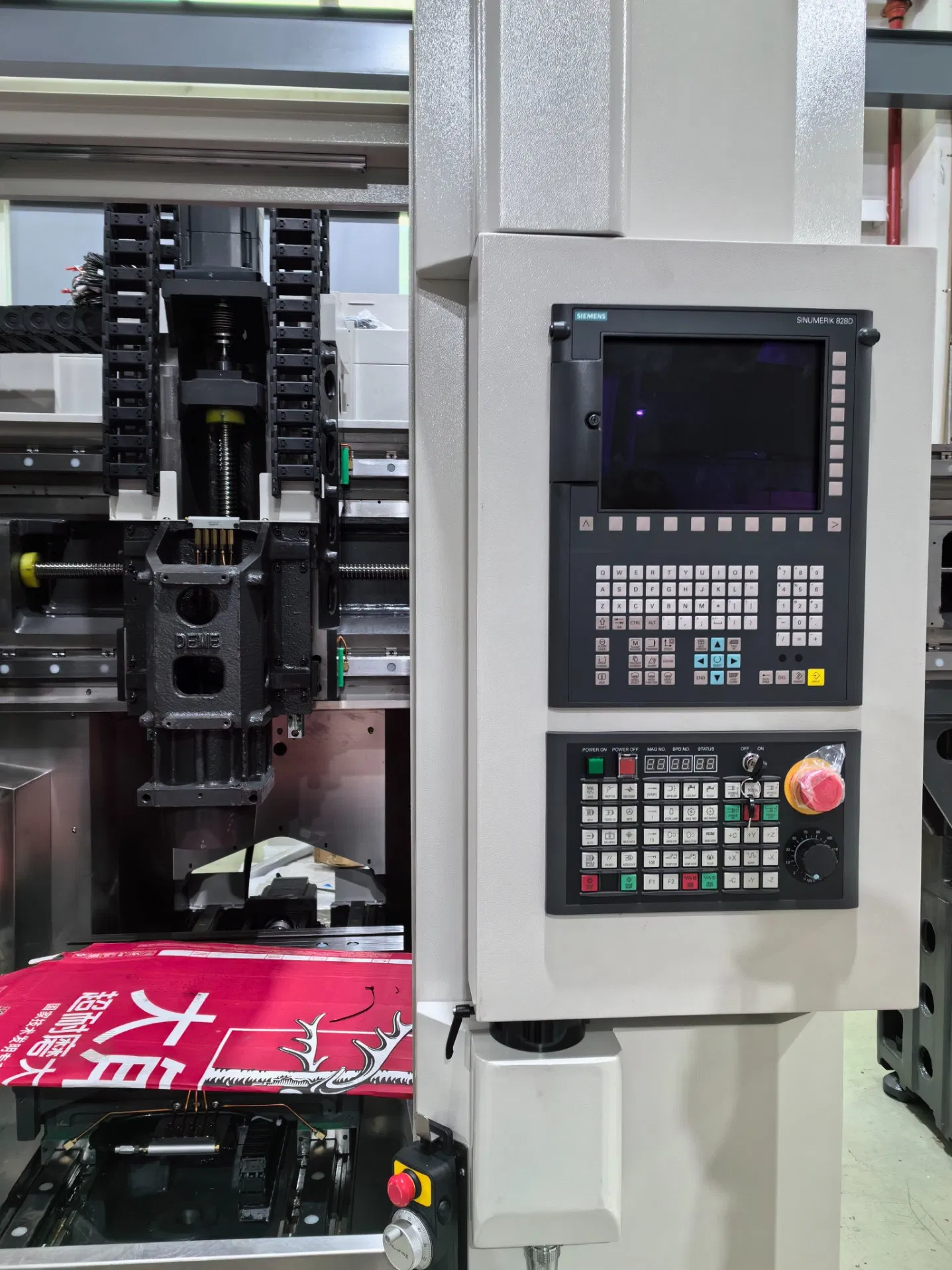

| 1 | Numerical Control System | Siemens 828D |
| 2 | Three Axis Ball Screw | Japan NSK |
| 3 | Three Axis Line Rail | Germany INA |
| 4 | Measuring System | Renishaw (Optional) |
| 5 | Linear Scales | HEIDENHAIN (Optional) |
