Customization: Available
After-sales Service: on-Line/off-Line Service
Warranty: 1 Year
Send Inquiry

Product Description

Basic Specification
Model NO.
VMC855
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Numerical Control
CNC/MNC
X-Axis Travel
800mm
Y-Axis Travel
550mm
Z-Axis Travel
550mm
Table Size
1000*550mm
Maximum Load
600kg
Spindle Power
7.5-11kw
Spindle Speed
8000rpm
Origin
China

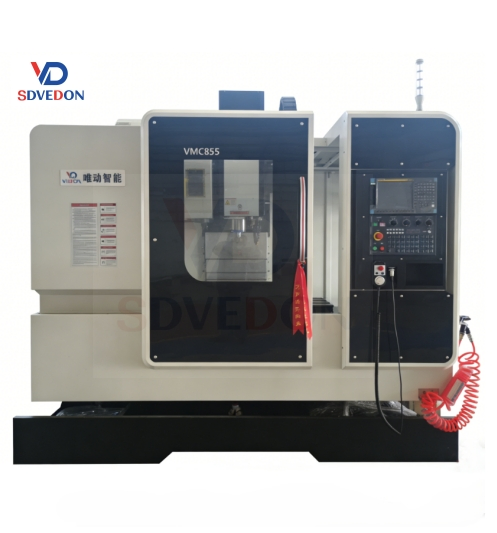

VMC855 Vertical Machining Center
Product Overview
The VMC855 is a high-rigidity, high-precision, and high-efficiency 3-axis vertical machining center that integrates multiple processes such as milling, boring, drilling, and tapping. It is suitable for medium and small-batch complex parts processing and widely applied in automotive parts manufacturing, mold making, aerospace, general machinery, and other fields.

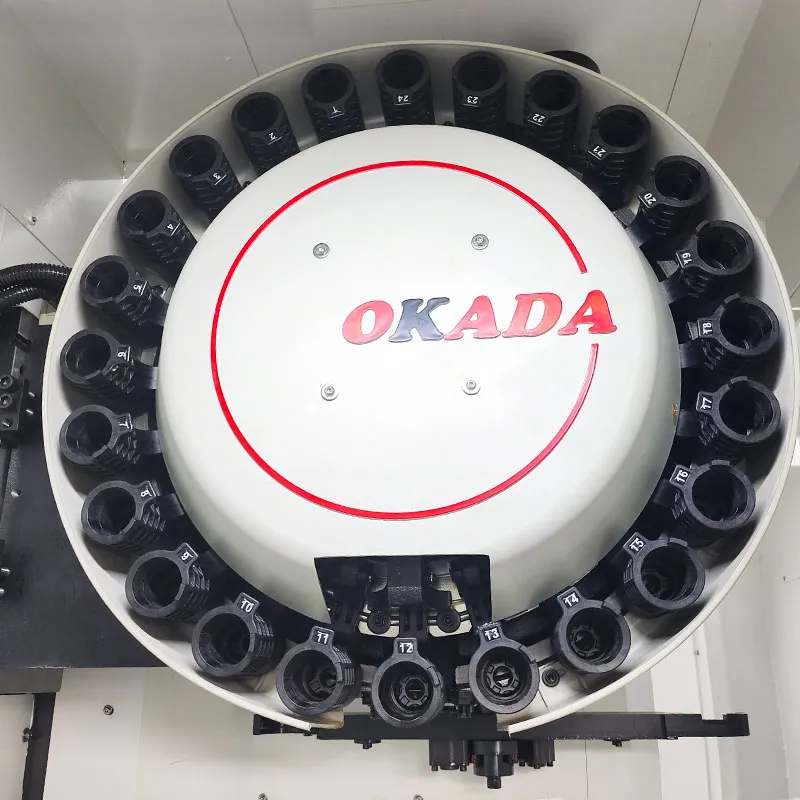

Tool Magazine System
⚡ Tool Magazine System
24-position disc-type robotic tool magazine (BT40 tool holder) with random tool change, T-T tool change time is about 2.2 seconds. The maximum tool diameter can reach Φ120mm when there is no adjacent tool, and the maximum weight of a single tool is 8kg.
🎯 Spindle & Structure
The spindle box adopts a heavy-duty box structure, integrally cast with HT250 cast iron and reinforced with internal grid ribs. The X/Y/Z axes adopt roller linear guides and precision ball screws, achieving excellent rigidity and stability.
Spindle System

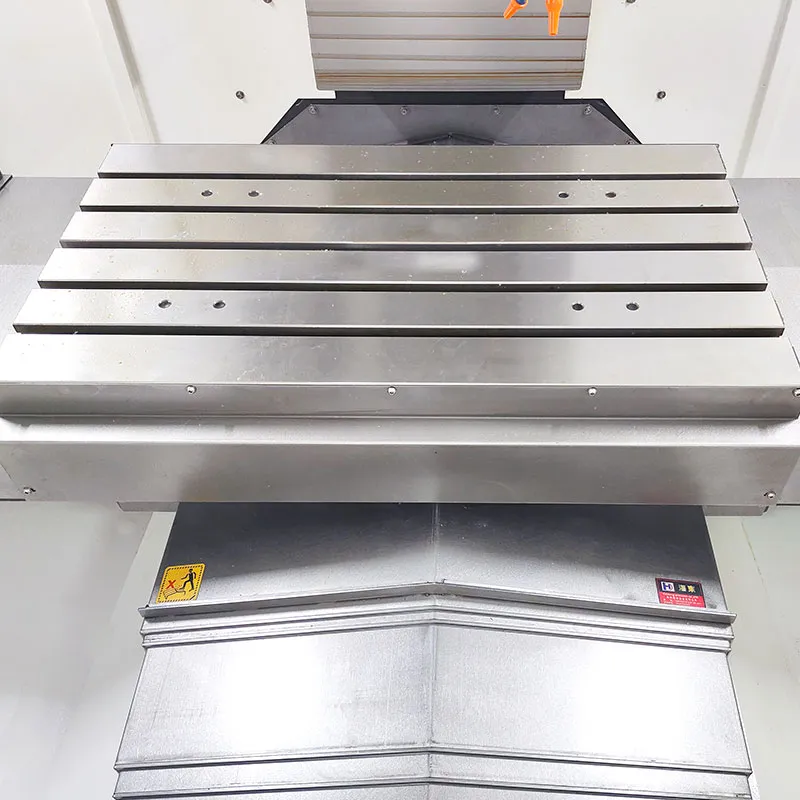

Worktable
⚙️ Worktable System
Size 1000×550mm, worktable load capacity 600kg. The worktable base adopts a box-type symmetrical rib structure with resin sand molding for high shock absorption and anti-deformation performance.
Technical Parameters
Category Item Unit VMC855 Data
Machine TravelX-axismm800
Y-axismm550
Z-axismm550
WorktableSizemm1000×550
Max. Loadkg600
Spindle Nose to Tablemm110-710
SpindleTaper—BT40
Speedrpm8000
Motor PowerkW7.5
AccuracyPositioning Accuracymm±0.008/300
Repeatabilitymm±0.005
Detail Gallery

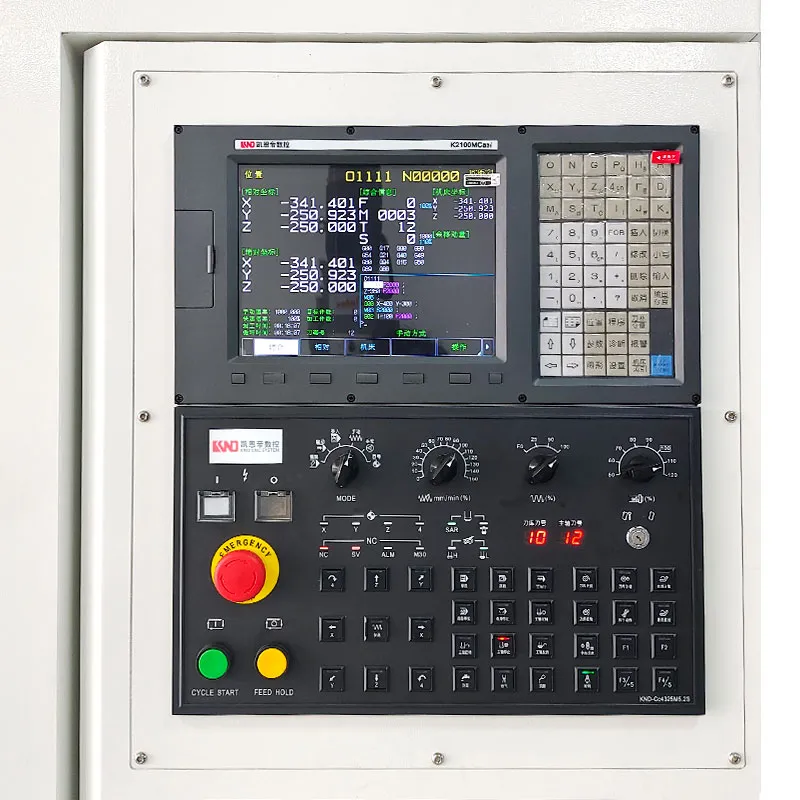

CNC System
Internal Parts
Processing View
Machine Structure
Frequently Asked Questions
What are the primary applications of the VMC855?
The VMC855 is ideal for metal-cutting processes including milling, boring, drilling, and tapping. It is widely used in automotive, aerospace, and precision mold making industries.
What type of tool magazine is equipped on this machine?
It standardly features a 24-position disc-type robotic tool magazine with a BT40 tool holder, offering a tool-to-tool change time of approximately 2.2 seconds.
What is the maximum workload the table can handle?
The reinforced worktable of the VMC855 can support a maximum load of 600kg, making it suitable for a wide range of workpiece sizes.
What CNC control systems are available?
The machine typically supports high-performance systems such as Syntec 22MA or GSK 25i, which include 10.4-15 inch color LCDs and support USB/Ethernet data transmission.
What is the positioning accuracy of the VMC855?
The machine achieves a high positioning accuracy of ±0.008/300mm and a repeatability of ±0.005mm across the X, Y, and Z axes.
