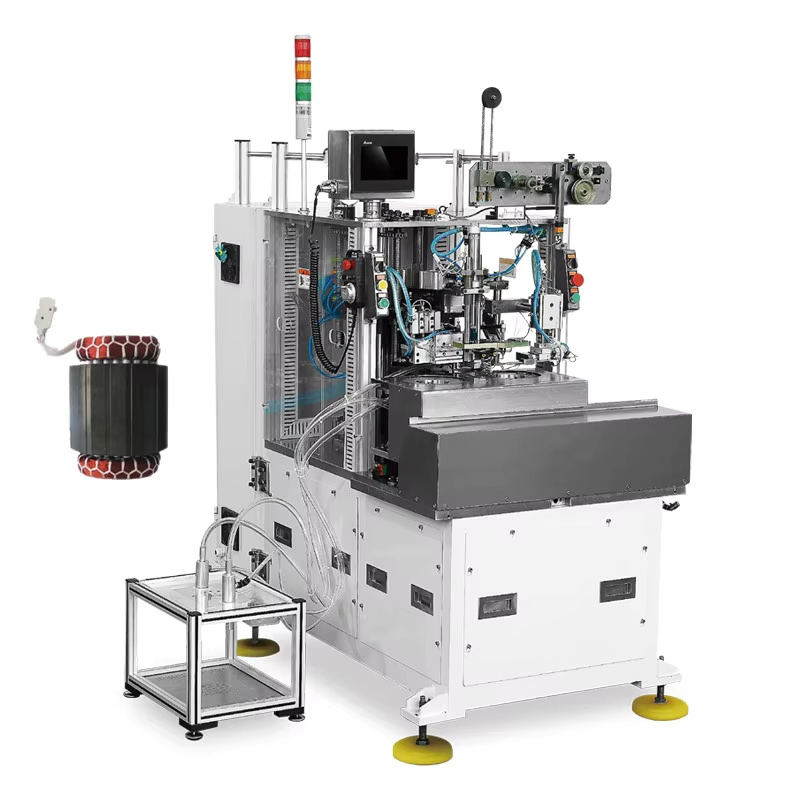

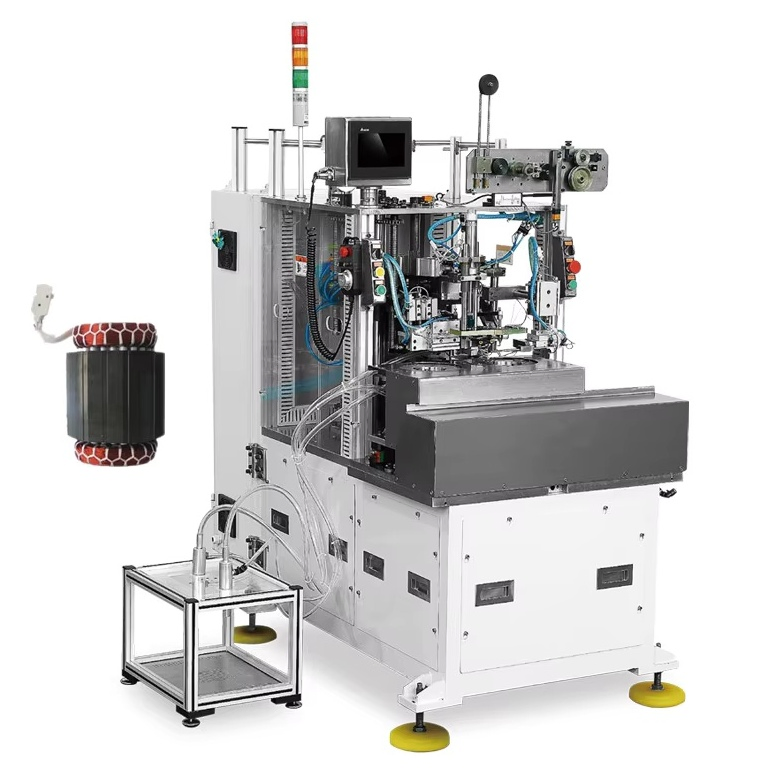

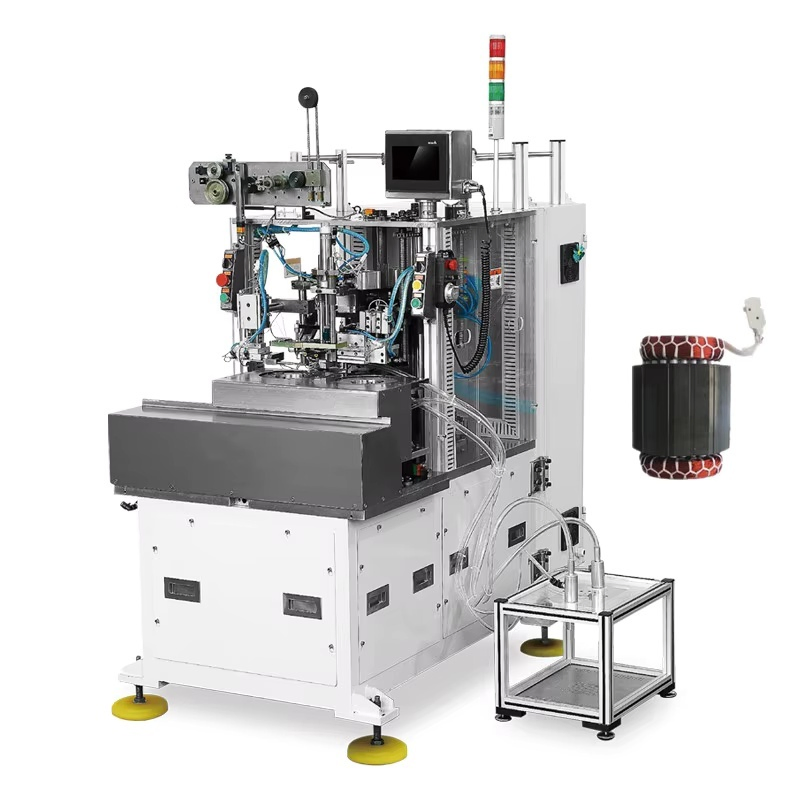

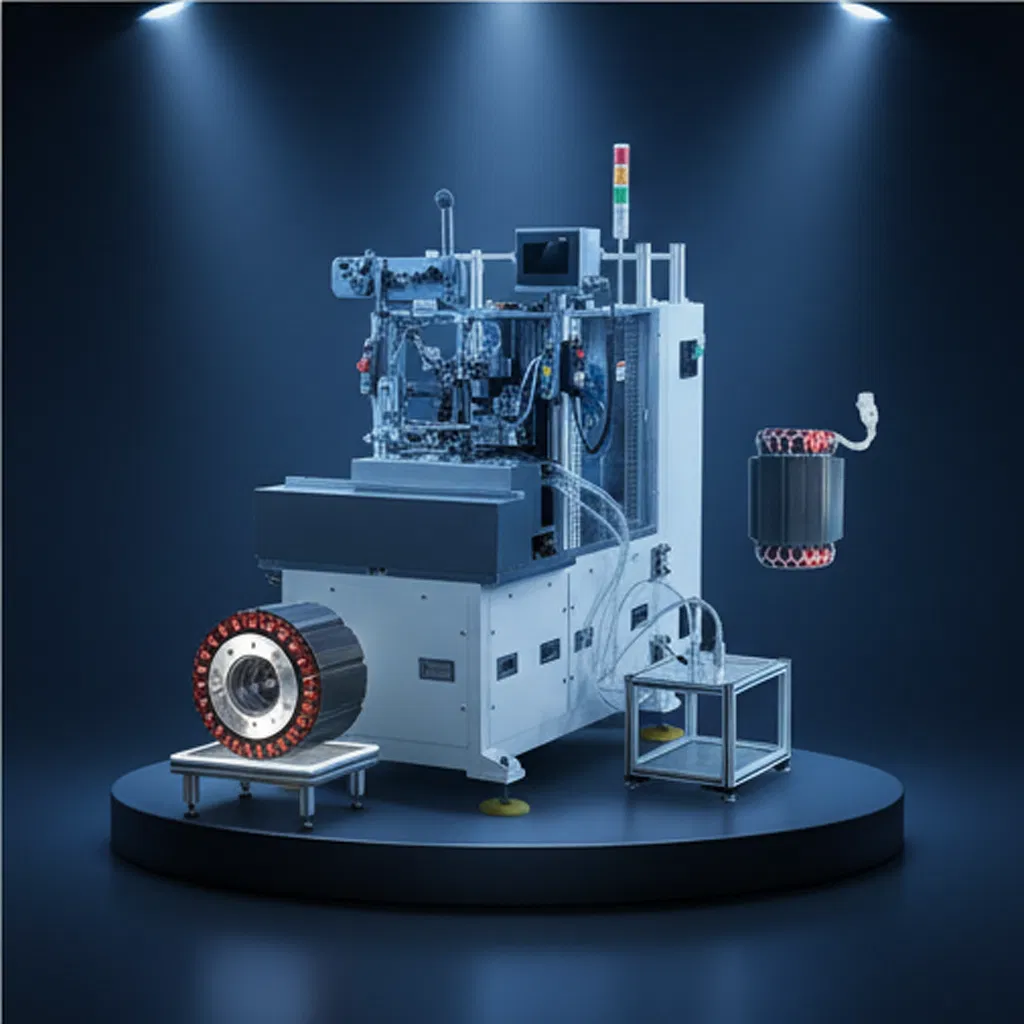

High-Speed 7-Axis CNC System for Precision Machining Applications

Customization: Available
Warranty: 1 Year
Outer Diameter of Stator: ≤ 160mm

Product Description

📊

Basic Information

Model NO.
LBX-02
Stator Inner Diameter
≥ 30mm
Transposition Time
0.5s
Adapt to Stator Stack Thickness
8mm-150mm
Wire Package Height
10mm-40mm
Lashing Speed
0.5-0.8MPa
Power Supply
380V Three-Phase Four-Wire System 50/60Hz
Power
4kw
Weight
1100kg
Specification
(L) 1650* (W) 950* (H) 1700mm
Origin
Guangdong, China
HS Code
8479899990
⚙️

Product Characteristics

CNC 7-axis CNC system controls and cooperates with man-machine interface for fast speed and high stability.
🎯
Equipped with automatic adjusting stator height, positioning, pressing, and wire feeding devices.
🛠️
Features automatic wire shearing, wire suction, and wire breaking detection systems.
🚀
Left and right mobile working platform saves stator loading time, improving overall efficiency.
🔗

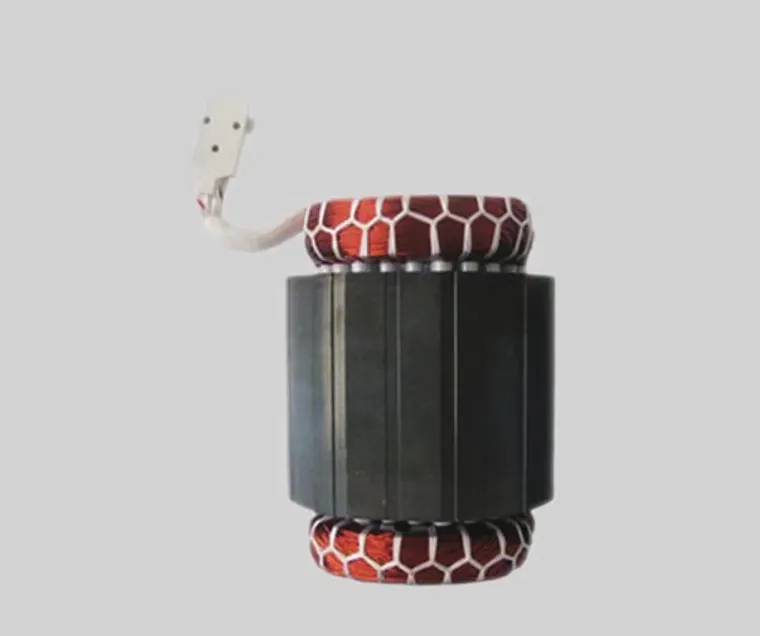

Specially suitable for binding long lead motors and automated production lines.
💎
Unique patented double-track cam design prevents damage to copper wire and tie wire.

This machine is also equipped with an automatic hook tail line device, which has the functions of automatic knotting, automatic cutting, and automatic suction. The automatic refueling system control ensures the long-term quality of equipment. With a hand wheel precision adjuster, it is easy to debug and highly humanized. The reasonable mechanical structure design ensures less noise, longer service life, and easier maintenance.

Detailed CNC System View

Frequently Asked Questions

What is the control system used in the LBX-02 model?
The machine utilizes a CNC 7-axis CNC system specifically designed for machining centers to ensure high stability and accurate positioning.
What are the compatible stator dimensions for this machine?
The machine supports a stator inner diameter of ≥ 30mm and a stator stack thickness ranging from 8mm to 150mm.
Does the machine protect the copper wire during the binding process?
Yes, it features a unique patented double-track cam design that ensures no damage to copper wires, no missing bindings, and no crossing of tie wires.
What automated features are included for wire handling?
It includes automatic wire feeding, shearing, suction, and a wire breaking detection device, along with an automatic hook tail line device for knotting.
Is this equipment suitable for high-efficiency production lines?
Absolutely. The left and right mobile working platform and fast transposition time (0.5s) significantly improve efficiency, making it ideal for automated production lines.
What are the power and space requirements?
The machine requires a 380V Three-Phase Four-Wire system and has a physical footprint of 1650mm x 950mm x 1700mm.
