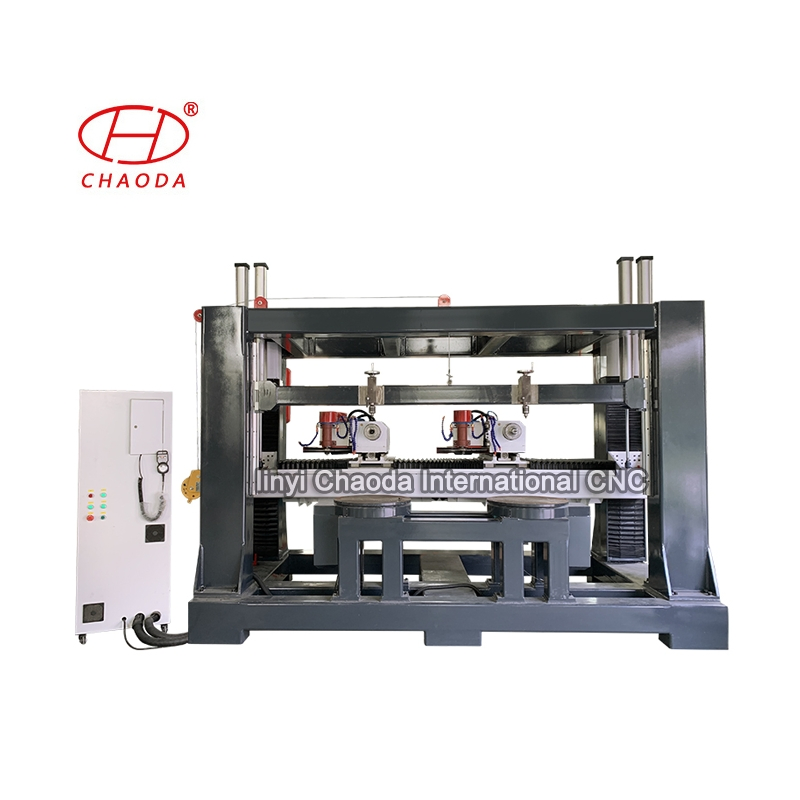

Granite CNC Engraving Machine / 5 Axis CNC Stone Cutting & Routing Machine

1 / 5

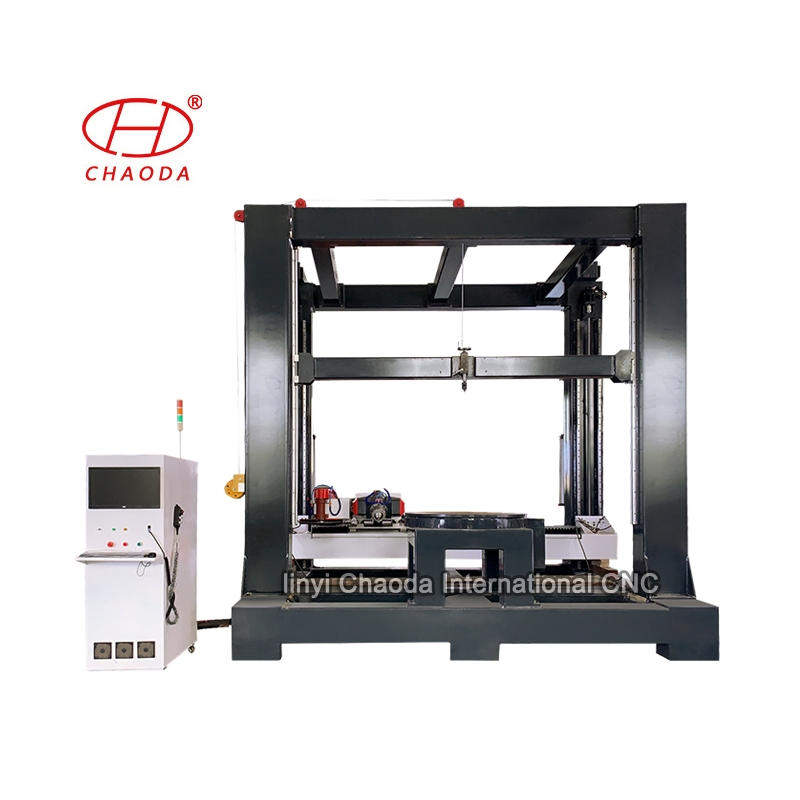

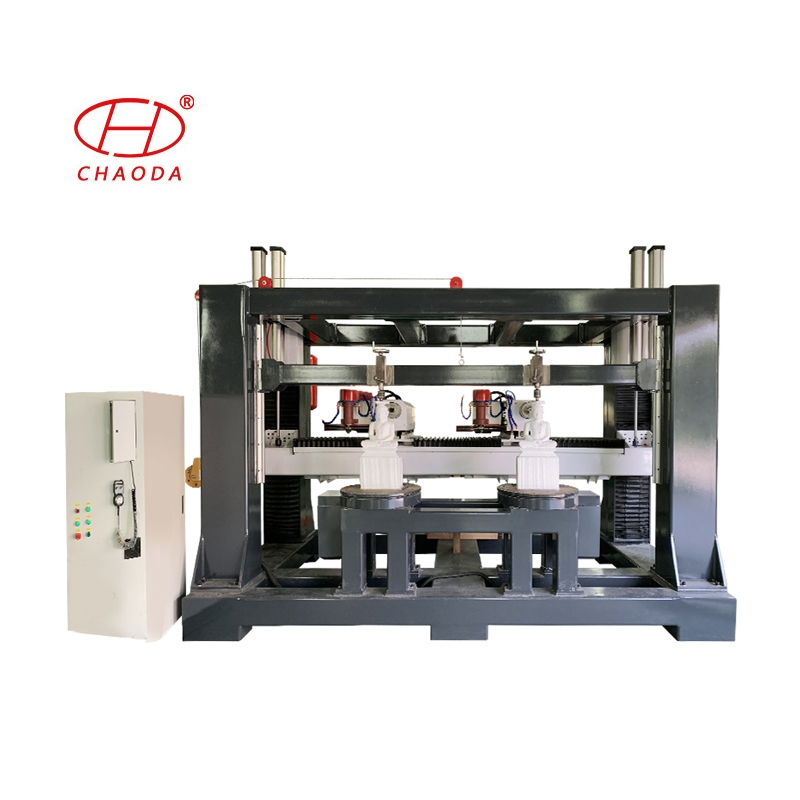

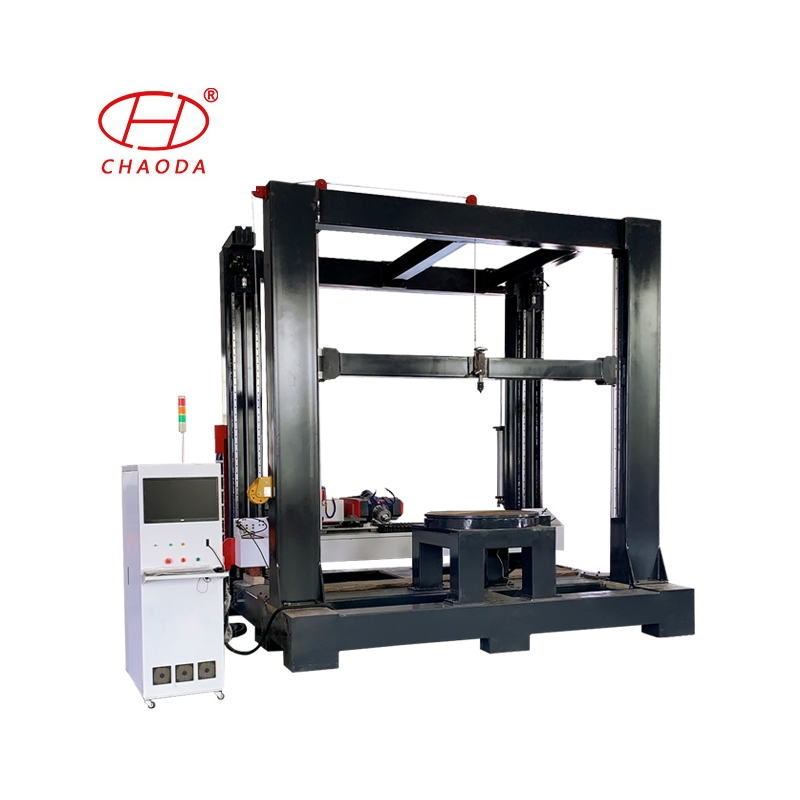

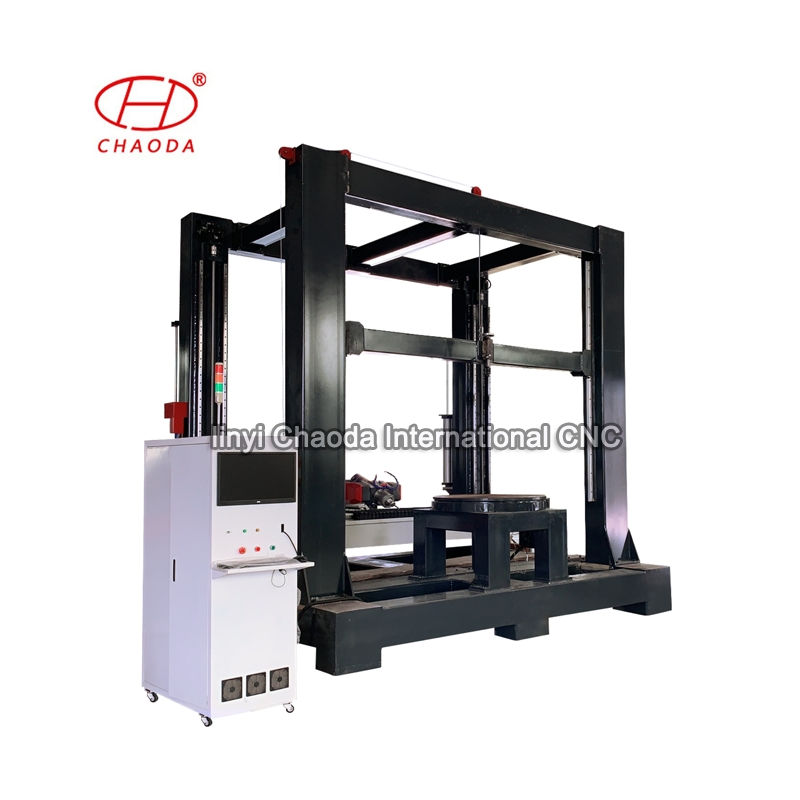

Granite CNC Engraving Machine / 5 Axis CNC Stone Cutting & Routing Machine

Customization:	Available
After-sales Service:	Online Services
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Model NO.

JCS1520R 5AXIS

Function

Hollow out, Cutting, Line Engraving, Intaglio, Basso-relievo, Lettering, Engraving, Milling

Material

Marble, Granite, Stone, Fiberglass, Wood, Plastics

Control

CNC (5 Axis Syntec)

Motor Power

High Power Servo

Spindle Power

12kw Bt40 Water Cooling

Working Size

1500mm(D) * 2000mm(L) Customized

Net Weight

9000kg

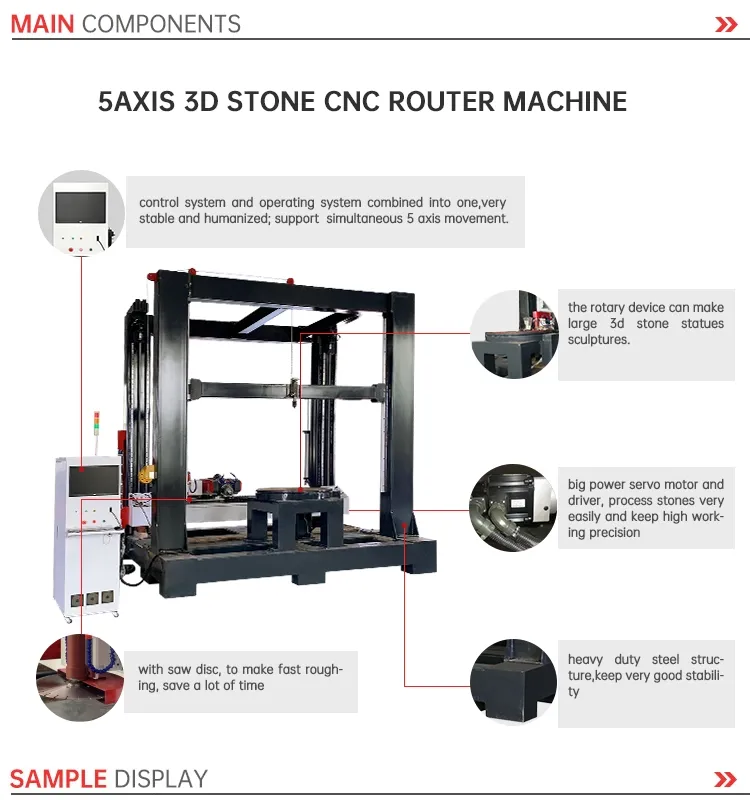

Product Highlights

Heavy Duty Structure

Heavy duty steel structure ensures machine stability for high-precision tasks.

5 Axis Rotary Device

Processes complex 3D stone statues, roman columns, pilasters, and cylinders.

Saw Blade Function

Fast rough machining, saving up to 10 times the working time.

Technical Specifications

Model No.	JCS1520R 5AXIS
Lathe bed	Heavy duty steel structure
Rotary Working size	1500mm diameter, 2000mm length
Spindle Power	12kw BT40 water cooling spindle
Spindle Speed	12000rpm
Control System	5 Axis Syntec
Motor	Servo Motor and Driver
Saw Blade	Integrated Function
Oil System	Automatic
Voltage	AC380V, 3 Phase, 50-60Hz

Applications & Services

This machine works on a wide range of materials including Marble, Granite, Stone, Terrazzo, Limestone, Sandstone, Travertine, Quartzite, Acrylic, Wood, PVC, Fiberglass, EPS Foam, and Aluminum. It is ideal for stone sculpture carving, statue engraving, and stone column making.

✔ Sample testing before shipment
✔ 2 days free training for each machine
✔ 12 months warranty for each machine
✔ Friendly English version manual and operation videos
✔ Free technical support (phone, email, chat)

Frequently Asked Questions

What materials can this 5-axis CNC machine process?

It is highly versatile and can process Marble, Granite, Natural Stone, Terrazzo, Wood, PVC, Fiberglass, EPS Foam, and even non-ferrous metals like Aluminum and Copper.

What are the main applications for the JCS1520R model?

The machine is primarily used for 3D sculpture carving, stone statue engraving, roman column making, corbels, pilasters, and various decorative architectural elements.

How does the "Saw Blade Function" benefit the workflow?

The integrated saw blade allows for rapid rough machining. It significantly speeds up the initial material removal process, saving up to 10 times the time compared to using standard routing bits alone.

What type of control system is installed?

The machine utilizes an advanced Syntec 5-axis control system, which is known for its stability, precision, and user-friendly interface for complex carving tasks.

Is technical support available after purchase?

Yes, we provide free technical support via phone, email, or remote session. Additionally, every machine comes with a 12-month warranty and 2 days of free operational training.

Can the working size be customized?

Yes, while the standard rotary size is 1500mm in diameter and 2000mm in length, the dimensions can be customized to meet your specific production requirements.
