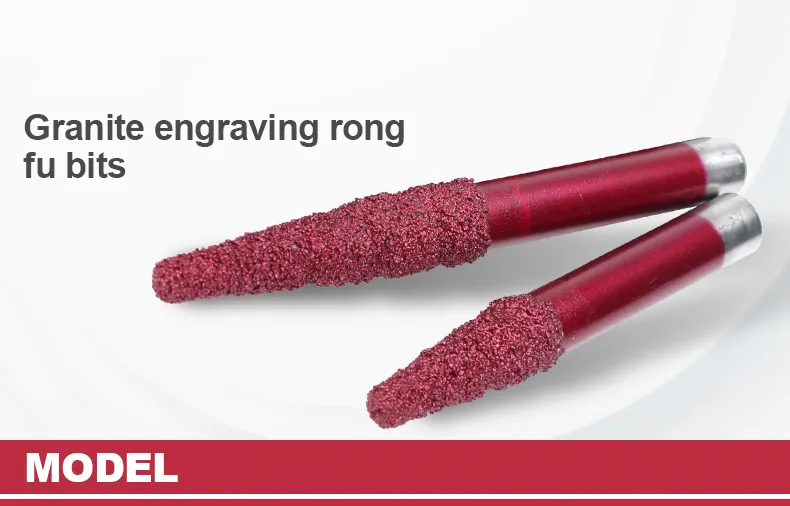

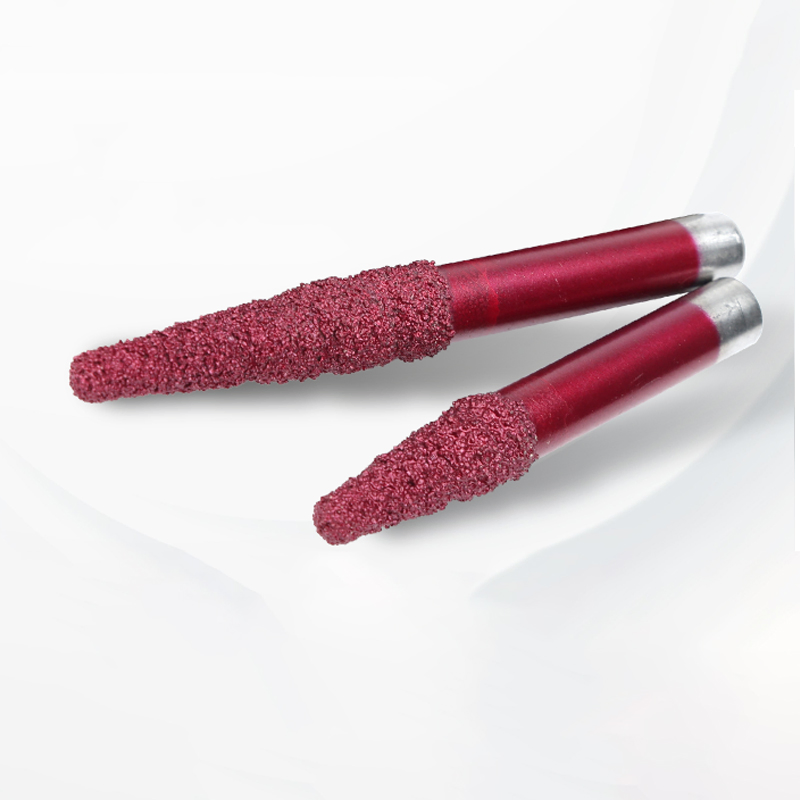

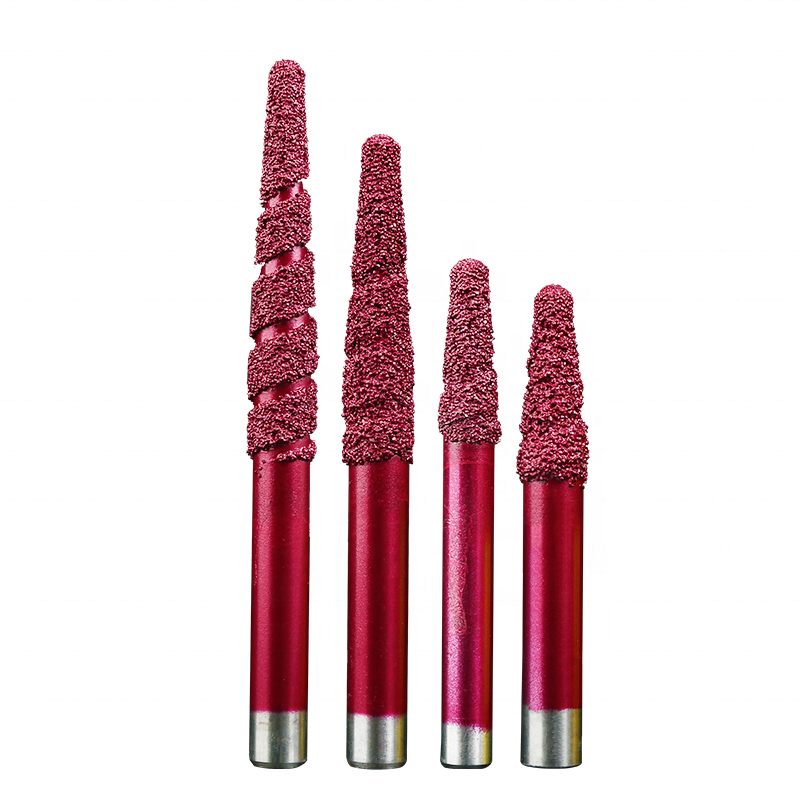

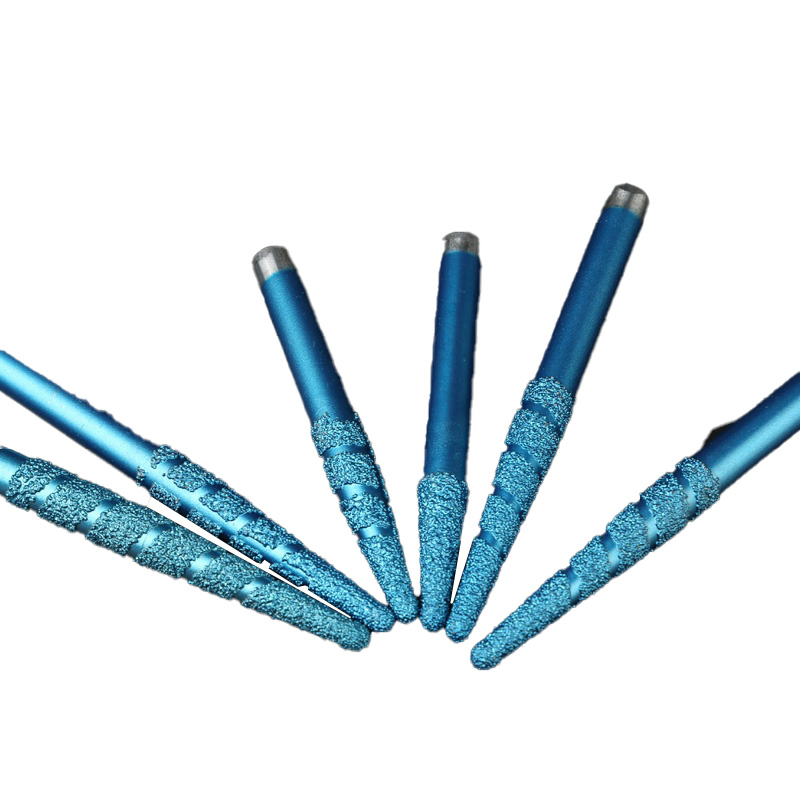

Feature 1: The tip of the tools is designed with 6mm diamond without an iron bar, providing a longer working life and increased durability. It is specifically engineered for engraving hard granite.

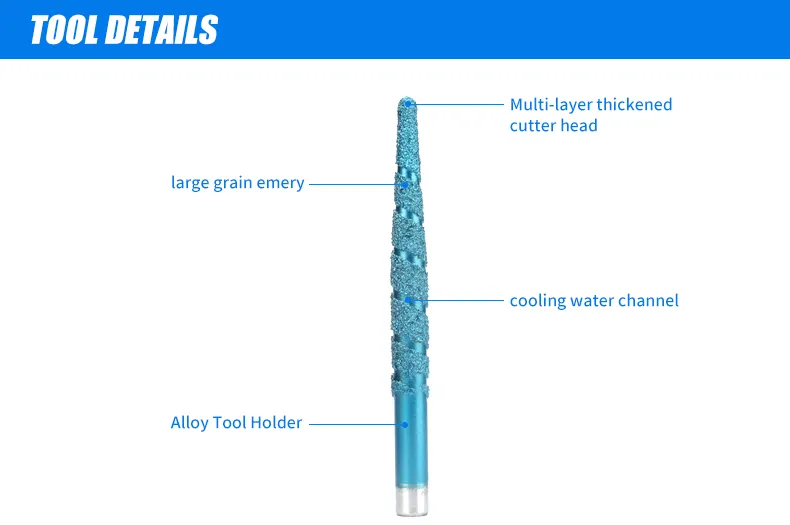

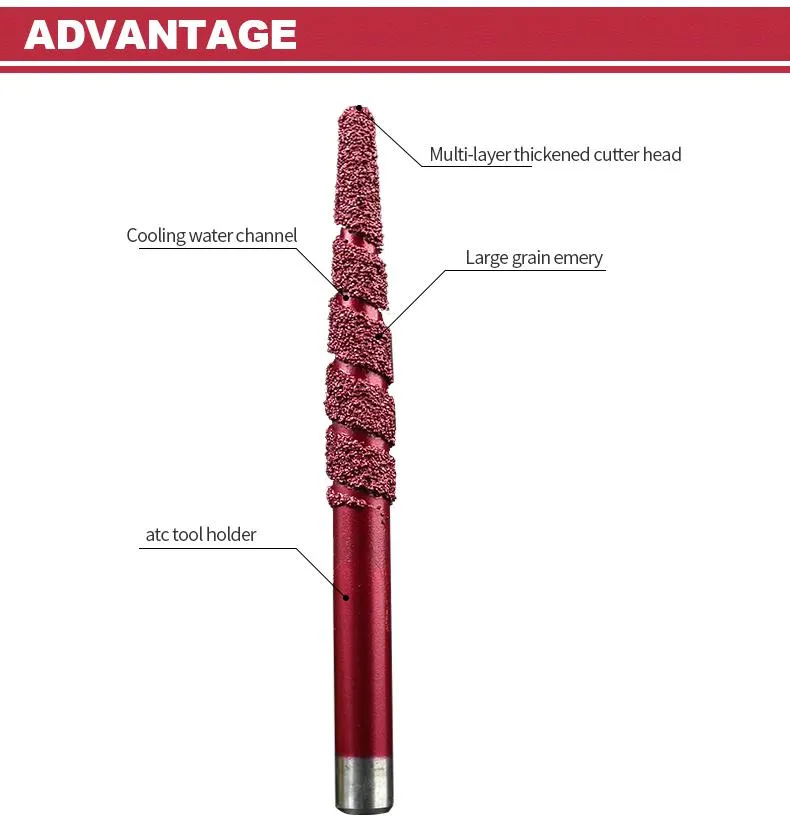

Feature 2: The tool body features multilayer diamonds, ensuring sharpness and high wear resistance.

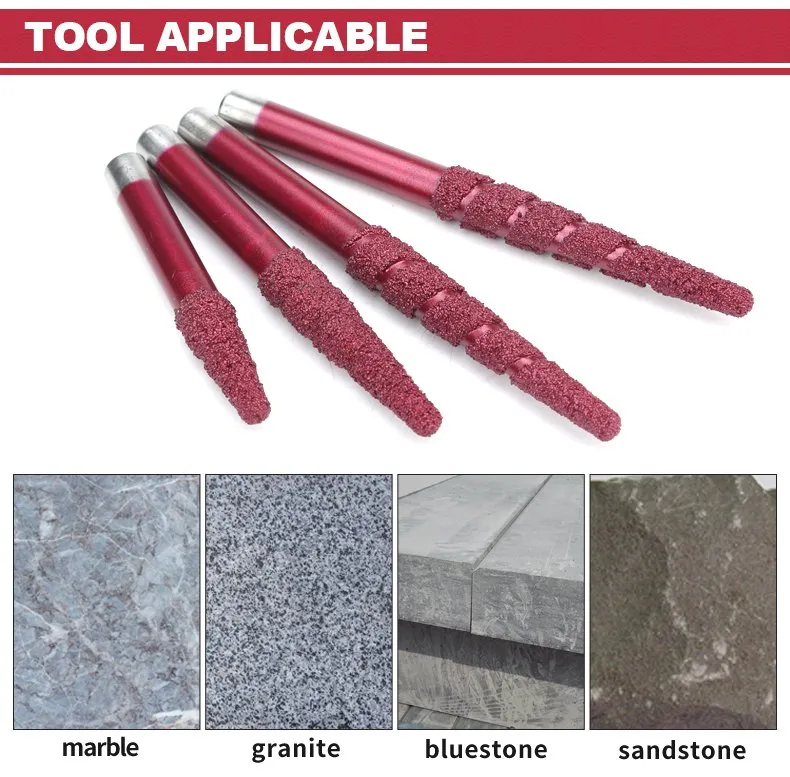

Standard angle alloy knife, cost-effective, easy to re-grind! Suitable for inscribed characters; milling of small characters; tombstone carving; and fine reliefs. For engraving granite, one cut should not exceed 0.6 mm.

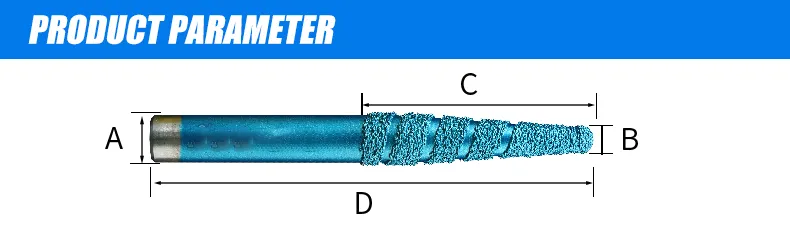

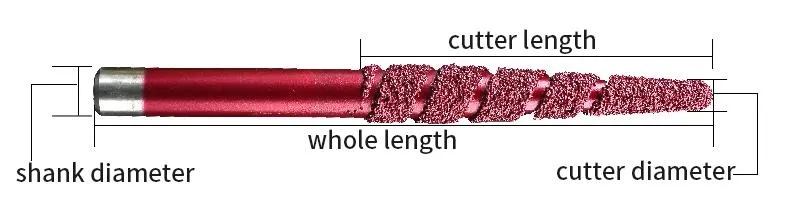

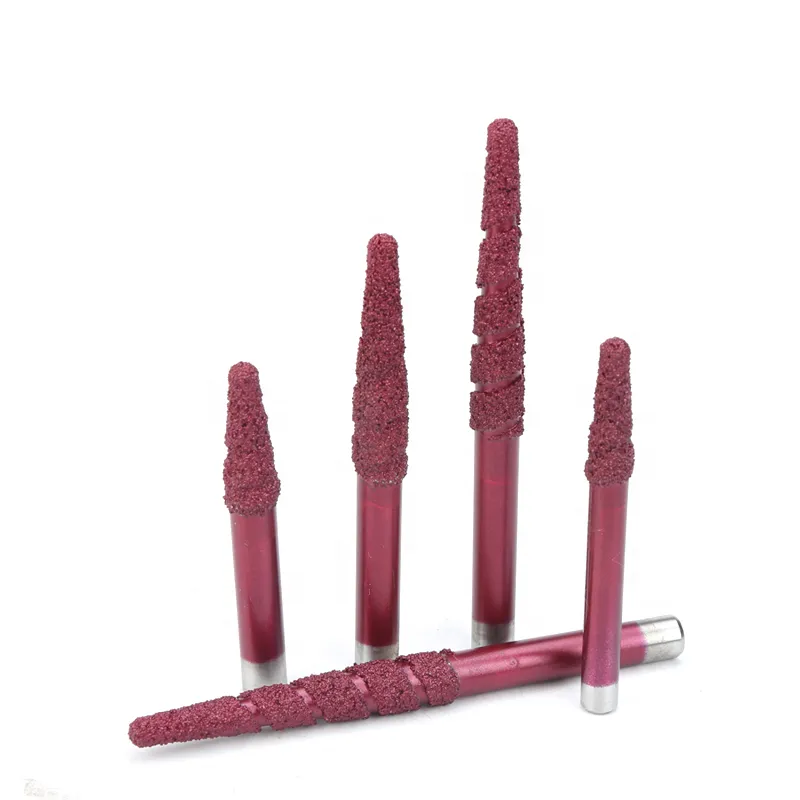

| MODEL | Diameter (mm) | Tip (mm) | Cutting Length (mm) | Total Length (mm) |
|---|---|---|---|---|
| 10-6/30 | 10 | 6 | 30 | 90 |
| 12-6/8-30 | 12 | 6/8 | 30 | 90 |
| 12-8/6-40 | 12 | 6/8 | 40 | 100 |
| 12-6-50 | 12 | 6 | 50 | 120 |
| 12-8-50 | 12 | 8 | 50 | 120 |
| 12-6/8-60 | 12 | 6/8 | 60 | 120 |
| 12-6-80 | 12 | 6 | 80 | 150 |
| 16-6/8-100 | 16 | 6/8 | 100 | 180 |
| 16-6/8-150 | 16 | 6/8 | 150 | 180 |
Handle Diameter: Prefer 8MM for reliefs within 2cm, and 10MM for those above 2cm. High-speed requirements may use 12MM tool holders.
Tip Size: Larger tips ensure longer life. If 6MM meets accuracy needs, avoid 3MM or 4MM tips.
Blade Length: Choose a length with a margin based on carving depth. For example, use a 30MM blade for a 26MM depth.

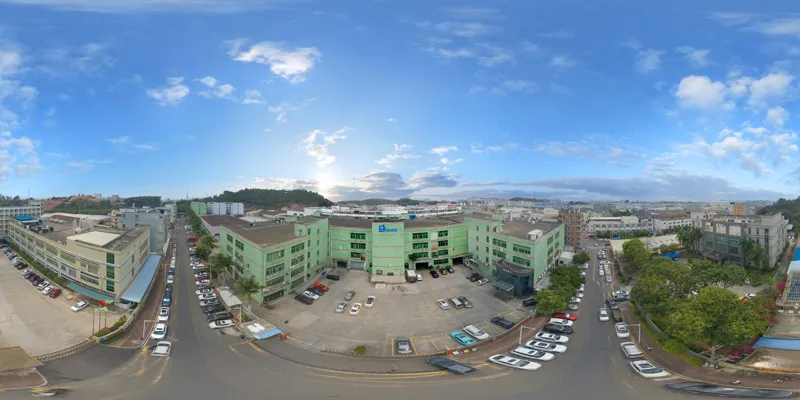

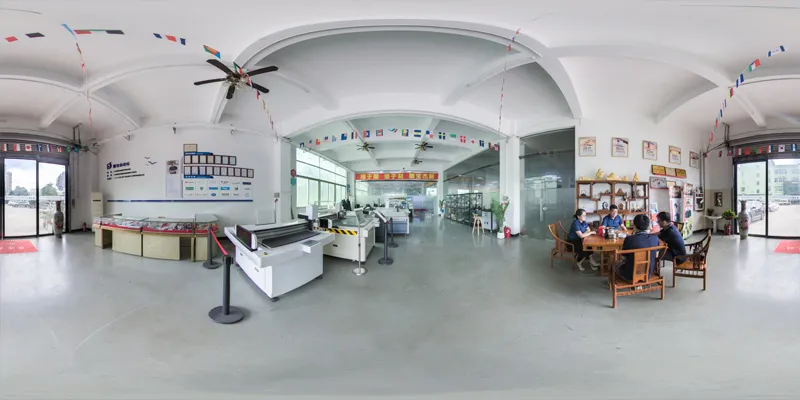

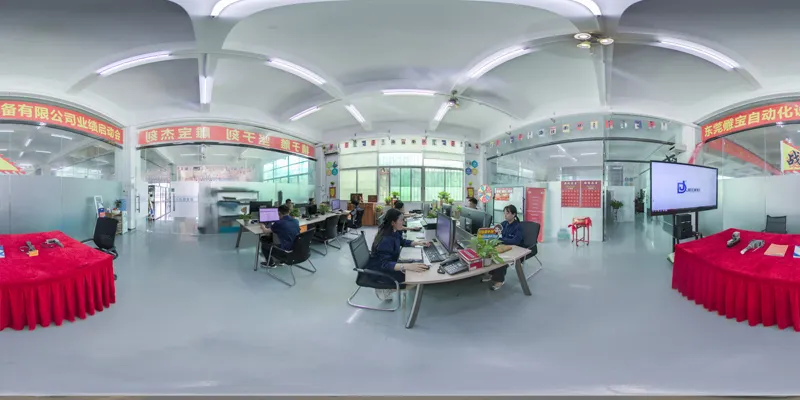

Our company integrates production, sales, and research and development for global automation equipment manufacturing. We uphold development concepts of high efficiency, intelligence, and compatibility. With standardized manufacturing bases over 10,000 square meters, we focus on high-quality CNC Machine Parts.
