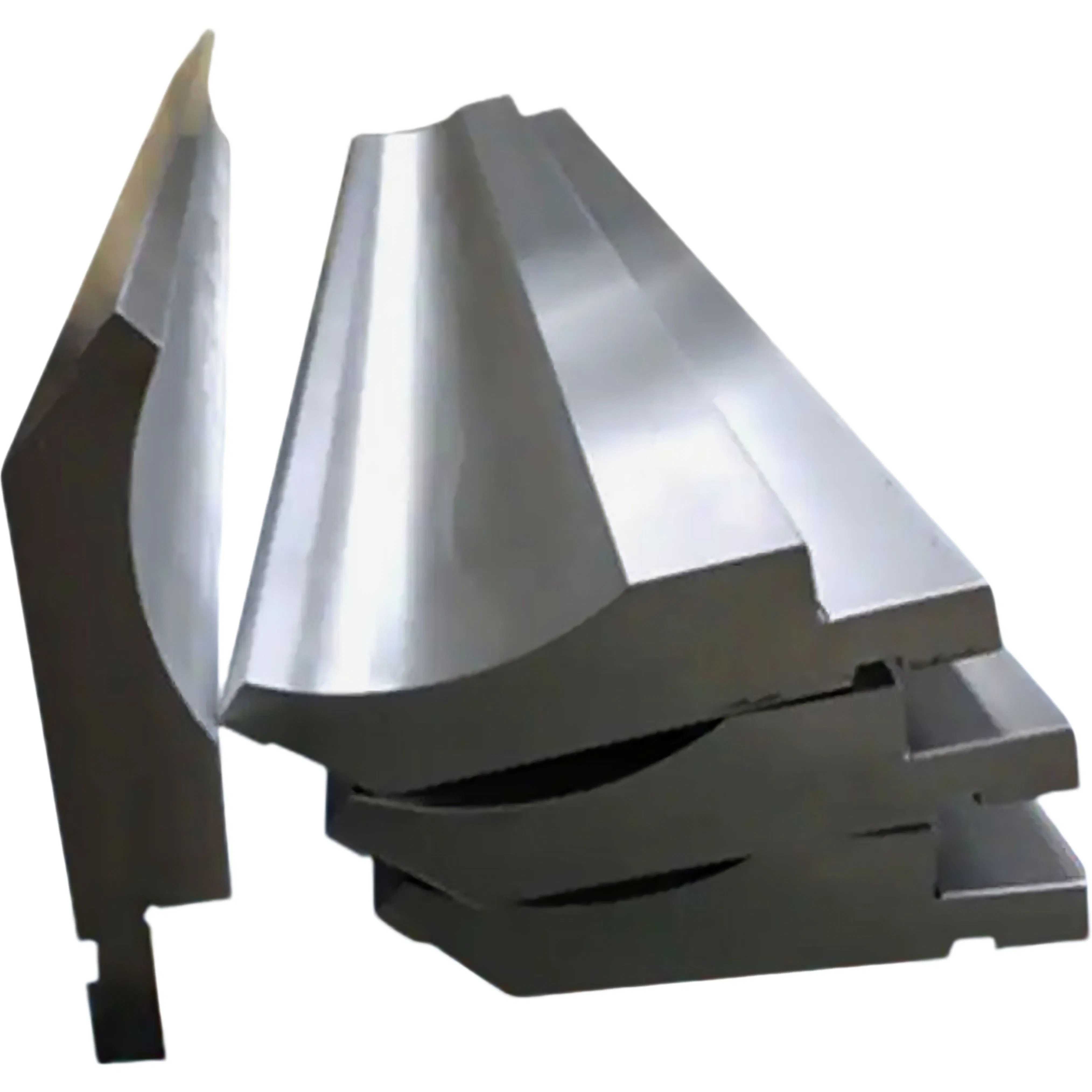

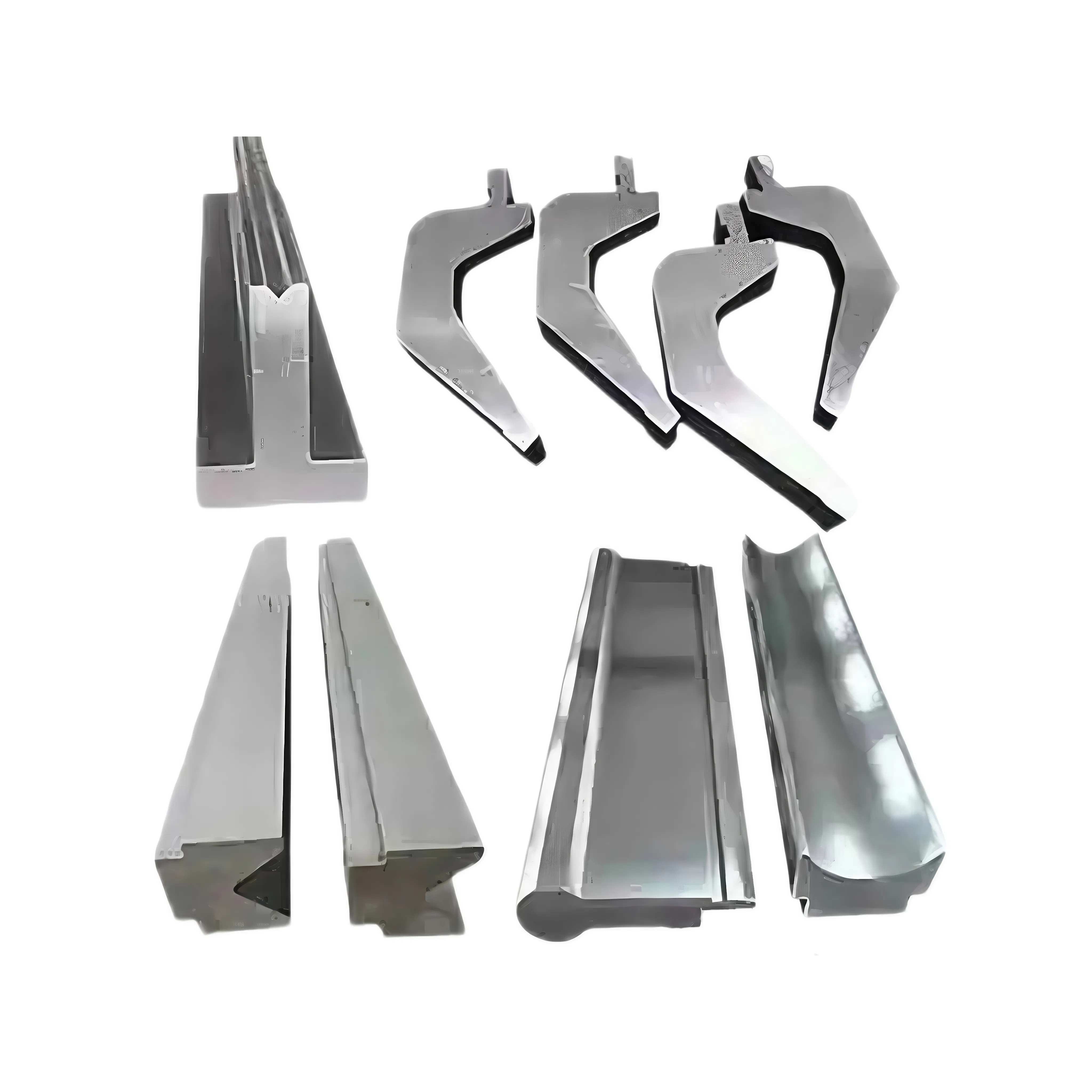

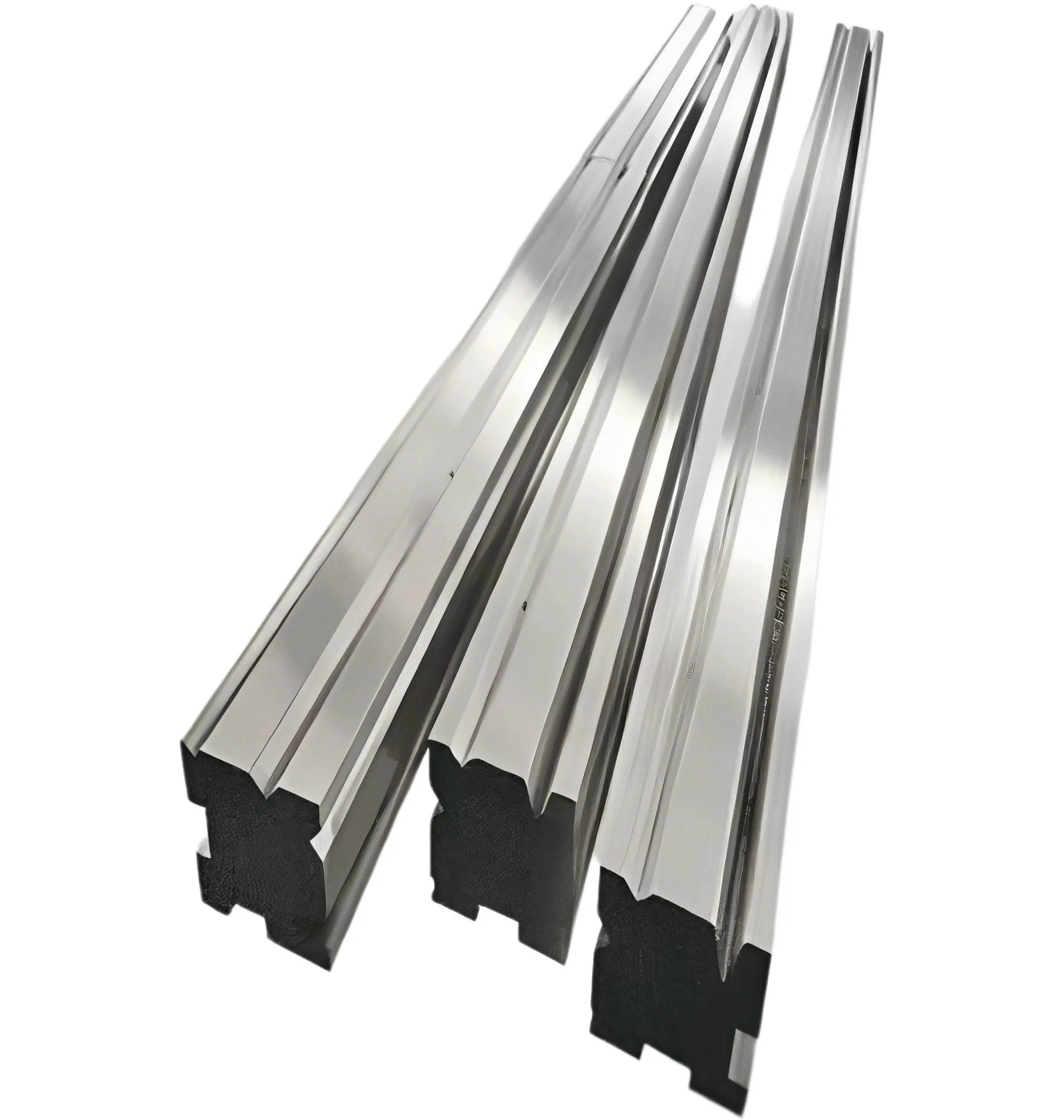

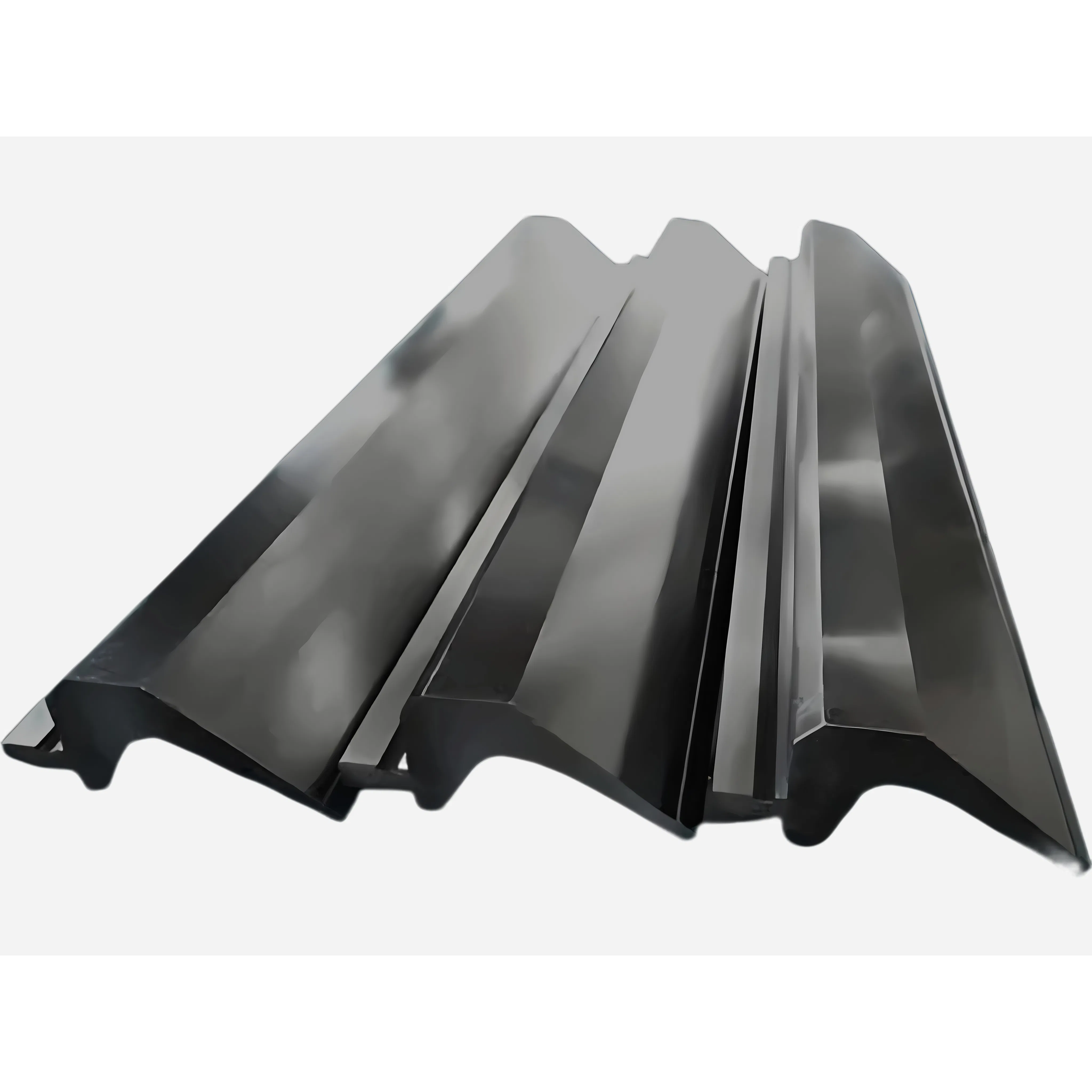

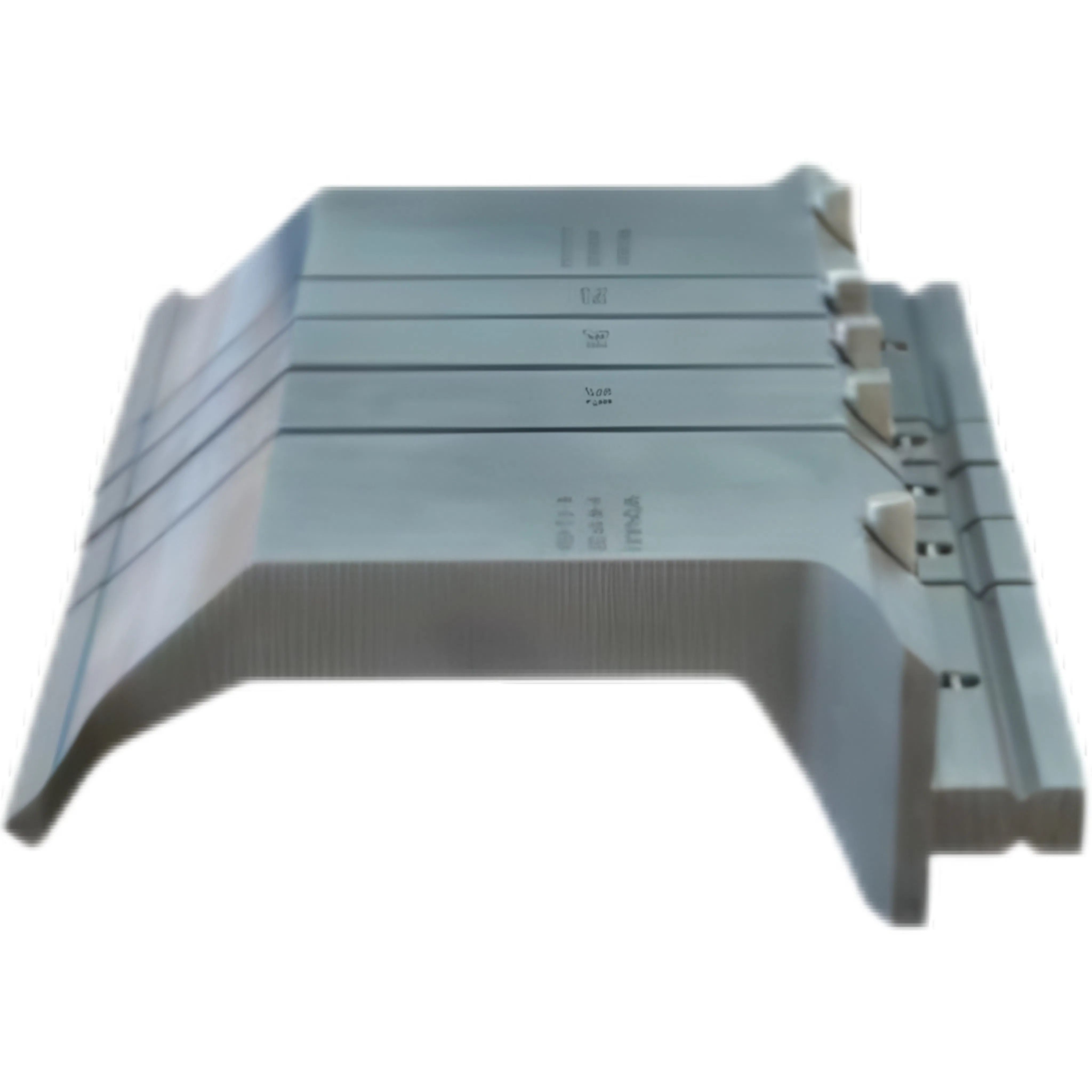

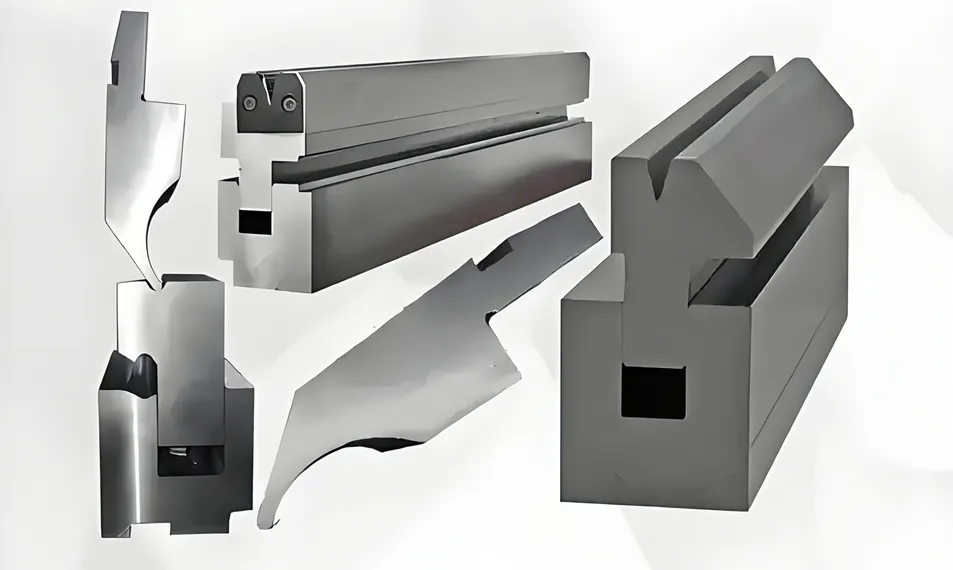

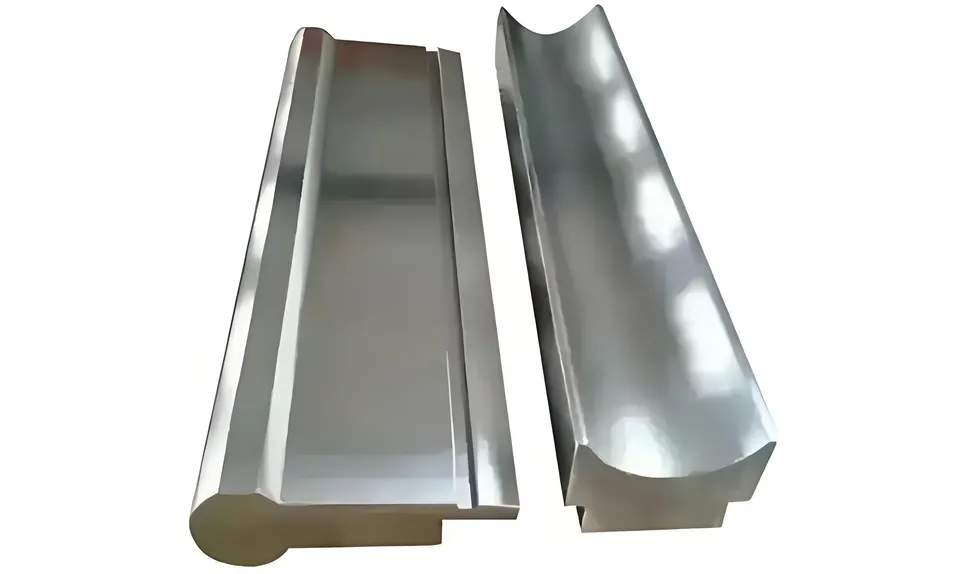

Press Brake Tooling Solutions
The materials for bending machine molds are generally Cr12Mov, 42CrMo, 45# steel, with a heat treatment hardness of HRC 47-50. These molds are essential for processing workpieces with precise angles and complex structures.

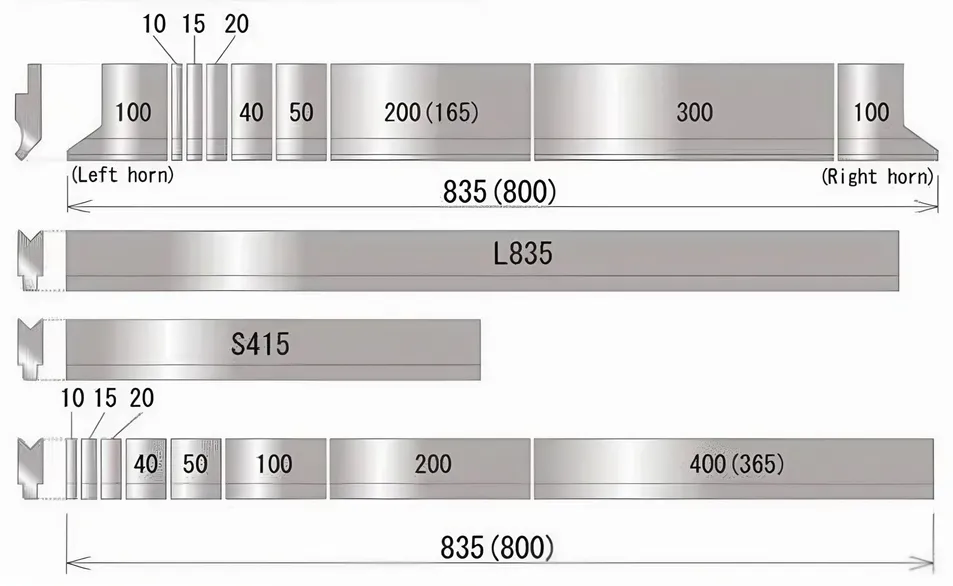

| TYPE OF MOLD | STANDARD | LENGTH OF SECTION (mm) | TOTAL LENGTH |
|---|---|---|---|
| Upper Mold | Standard A | 100(left ear), 10, 15, 20, 40, 50, 200, 300, 100(right ear) | 835MM |
| Upper Mold | Standard B | 100(left ear), 10, 15, 20, 40, 50, 165, 300, 100(right ear) | 800MM |
| Lower Mold | Standard A | 10, 15, 20, 40, 50, 100, 200, 400 | 835MM |
| Lower Mold | Standard B | 10, 15, 20, 40, 50, 100, 200, 365 | 800MM |
