| Material | Punch-body SKH51, Die DC53 |
| Heat treatment | HRC 60°- 62° |
| Hits before regrinding (Stainless) | About 300,000 hits |
| Hits before regrinding (Mild Steel) | About 500,000 hits |
| Available Machines | AMADA AE2510NT, AMADA 357, TAILIFT HP2500, MATE Ultra system, Prima Power E5X, LFK T3, Accurpress E2000, JFY ET-300, YANGLI T30, YAWEI HPH-30, FINN-POWER, KOMATS, STRIPPIT, DATONG PTC-LX230 |
| Forming Tools | Extrusion tapping, Louver, Lance and Form, Cluster, Countersink, Half-cut, Plane positioning, Knockout, Emboss Continuous, Thread screw, Center Point, HexLock, Bridge thread, MultiBend, Card guide, Hinge, Multi scribe, Logo, Ground symbol, Roller Rib, Roller Offset, Roller Shear, Roller Pincher, Roller Deburr |
| Options | Coating with TICN or Tin |
| Delivery Time | 3 - 10 Days |
1. The space of holes must be over 3.2mm or 2 times sheet thickness.
2. The punching pitch must be bigger than hole size, otherwise will damage the die.

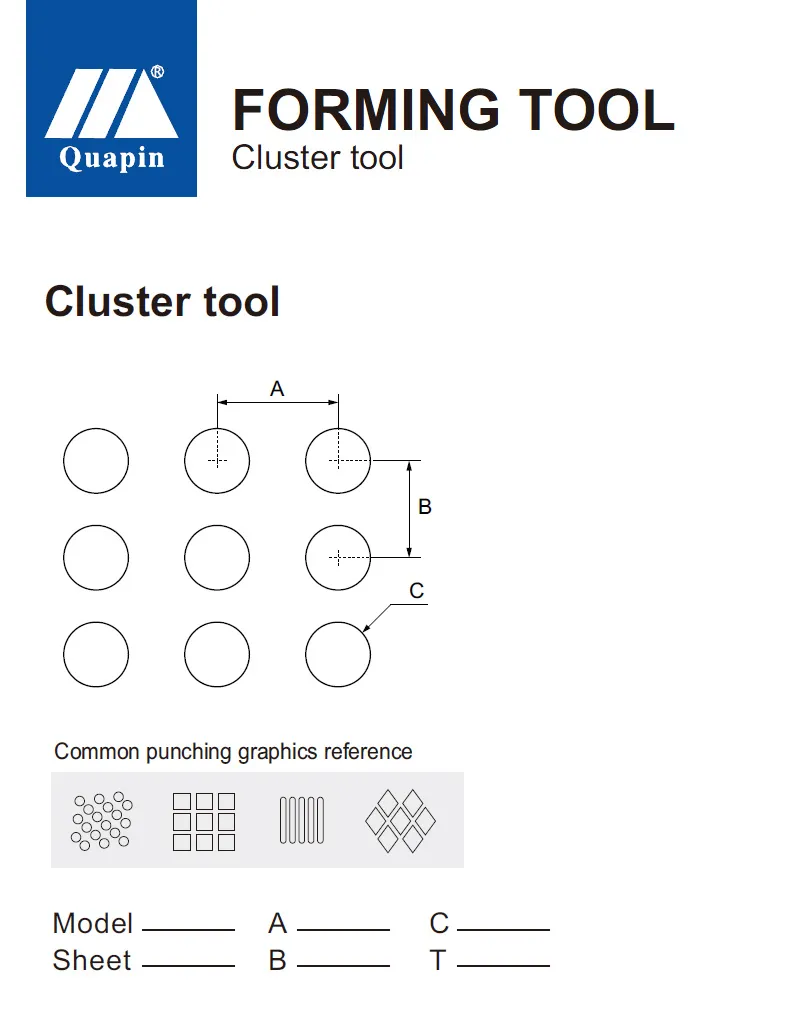

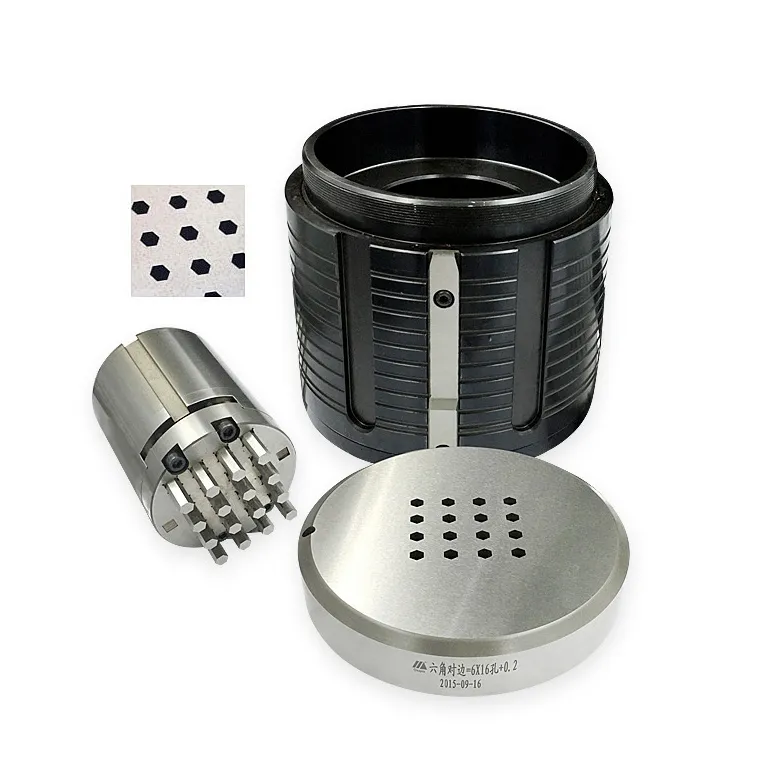

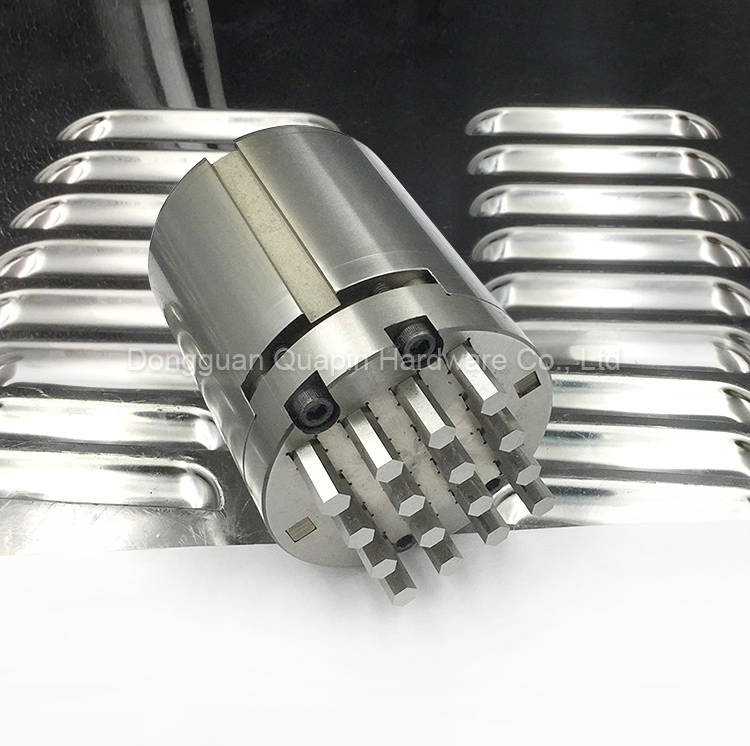

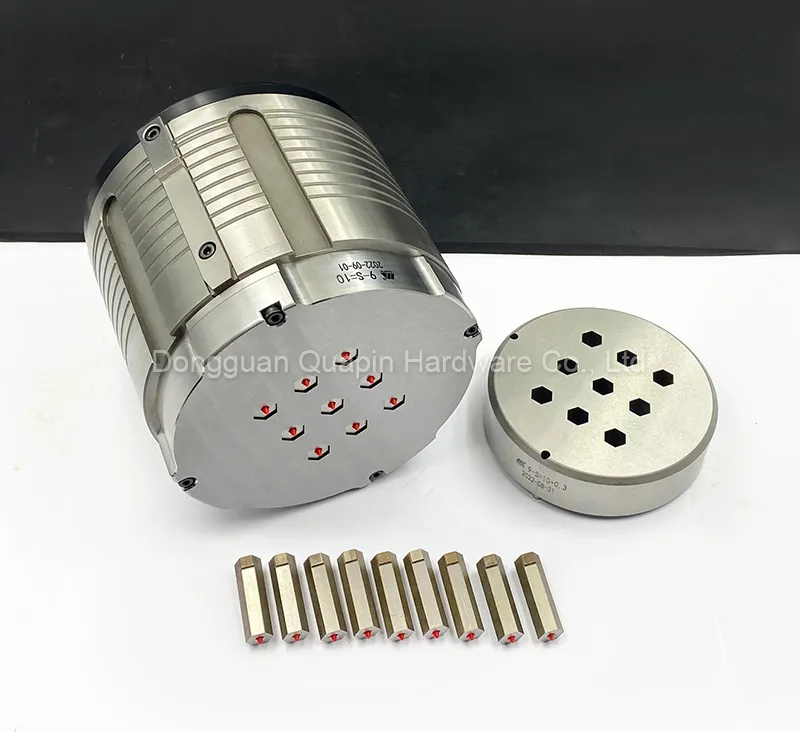

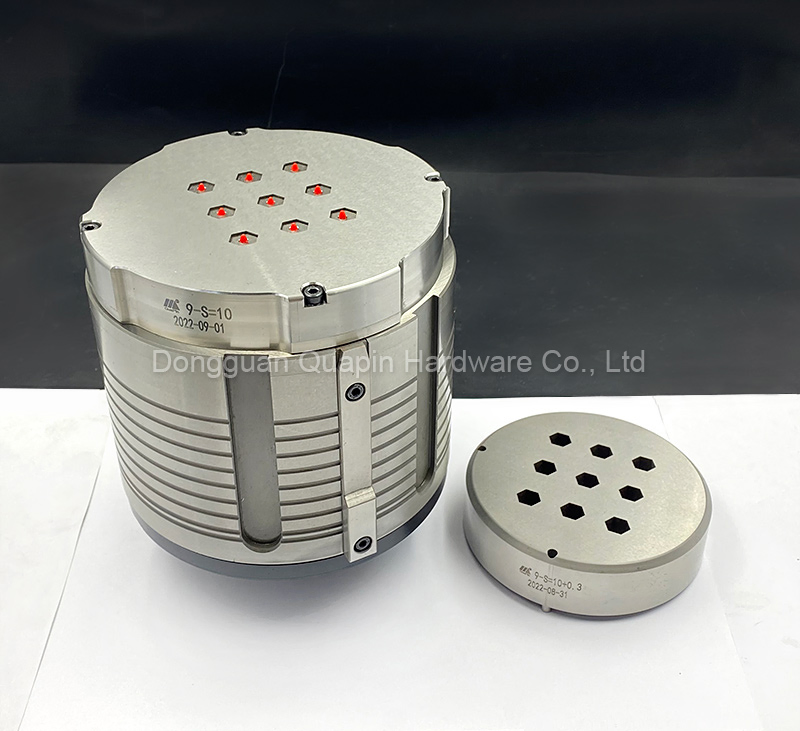

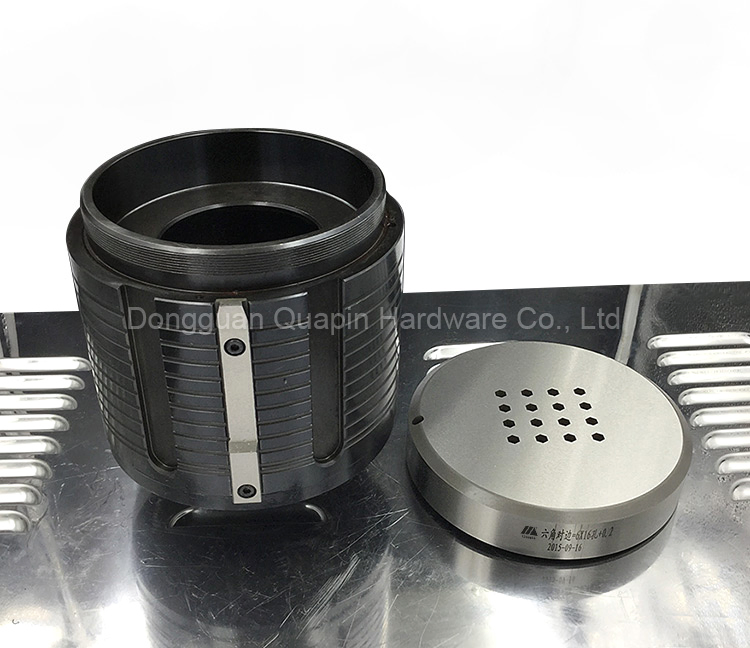

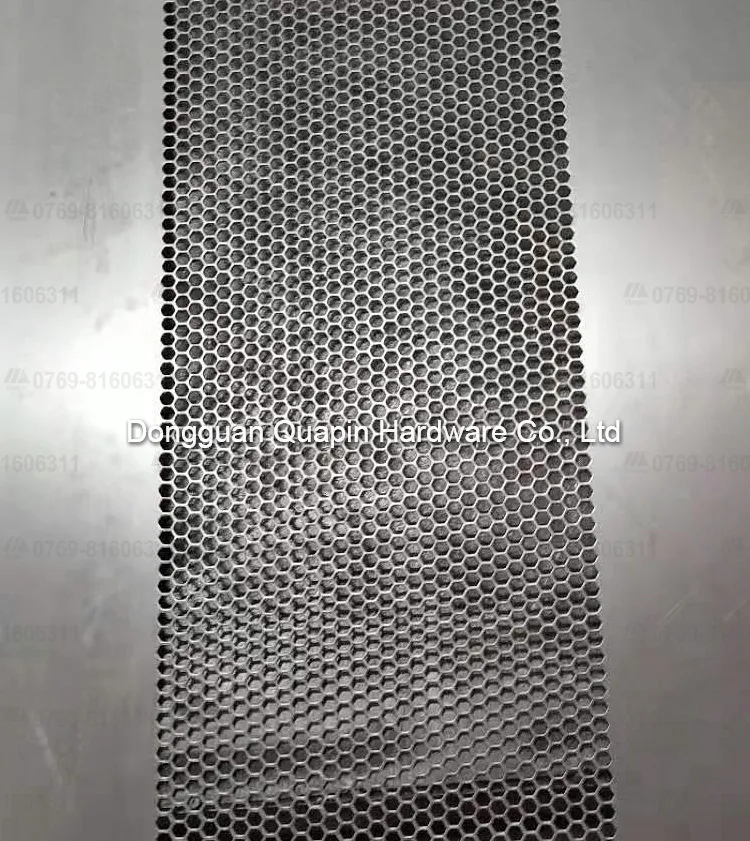

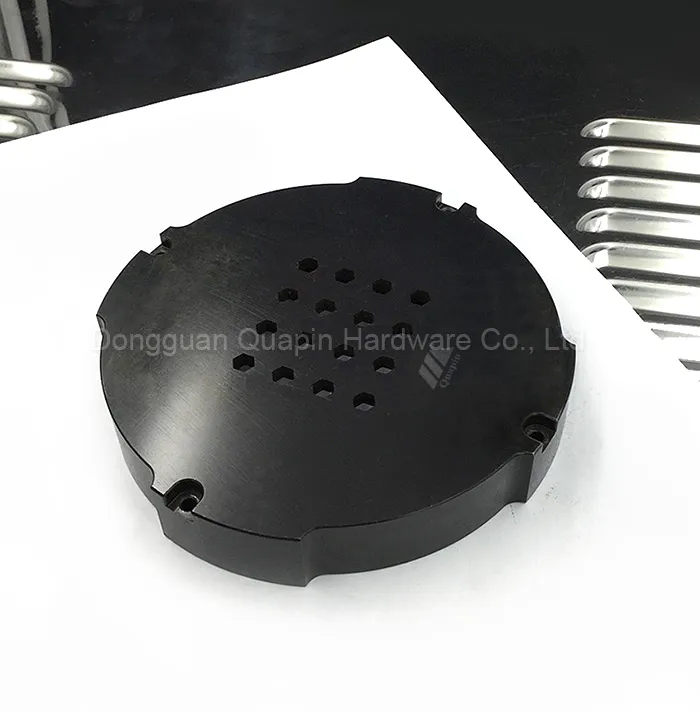

3. The cluster tool has unitary structure and replacement insert structure; tools can be designed according to customer request.
Please provide the following information when you purchase:
| Example 1 | Example 2 | Example 3 | Example 4 |
|---|---|---|---|
| AE2510-NT Thick Turret 85 Gap+0.3 Full set B-RE 30*5 |
CP1500 Thick Turret 90 Gap+0.25 Punch Assembly D-OB Φ10*50 |
EM2510NT I Type Gap+0.3 Upper/Lower stripper I-RO Φ15 |
M2048TE 114 / Vulcan Gap+0.3 Upper/Lower tooling G-SQ 62*62 |
| Drive Type | Material | 0.8mm | 1.0mm | 1.5mm | 2.0mm | 3.0mm | 4.0mm |
| Hydraulic | Mild Steel | 0.15-0.20 | 0.20-0.25 | 0.20-0.25 | 0.40-0.50 | 0.60-0.75 | 0.80-1.00 |
| Aluminum | 0.15-0.16 | 0.15-0.20 | 0.23-0.30 | 0.30-0.40 | 0.45-0.60 | 0.60-0.80 | |
| Stainless | 0.20-0.24 | 0.25-0.30 | 0.38-0.45 | 0.50-0.60 | 0.75-0.90 | 1.00-1.20 |
Punch body material: SKH51
High-speed steel, known for extreme hardness even when cooled in air. Offers superior toughness and wear resistance compared to conventional mold series.
Die material: DC53
A cold-work die steel that improves upon SKD11. It overcomes weaknesses in high-temperature tempering hardness and toughness, making it ideal for precision molds.

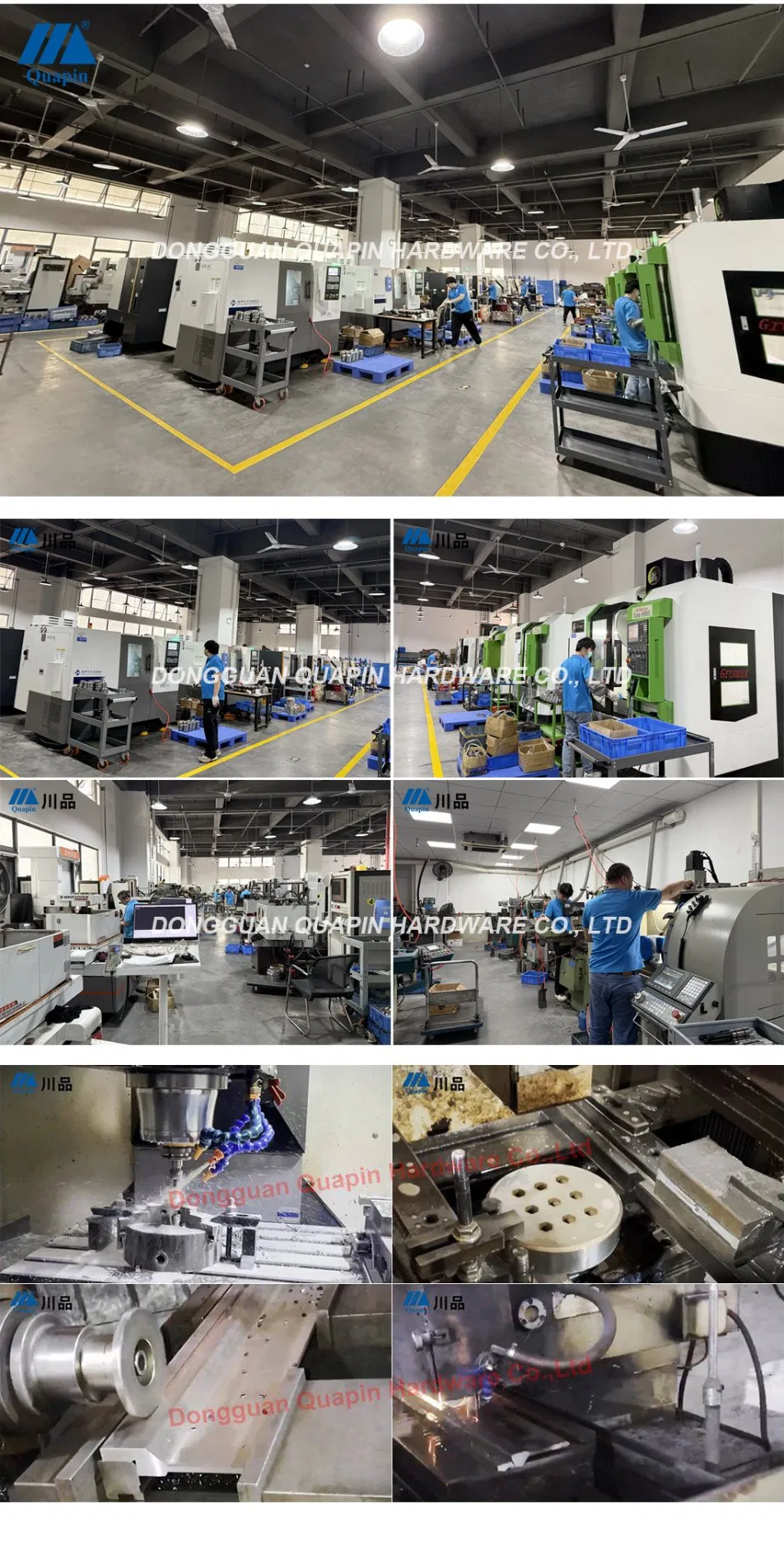

Our company is a specialized manufacturer focused on R&D and manufacturing of CNC turret punch press tooling (NCT) molds. We are equipped with advanced production and inspection equipment, including CNC machining centers, Sodick wire-cut machines, and precision grinders. With years of experience, we have established a high-efficiency management system and CAD/CAM/UG manufacturing capabilities. We aim to help sheet metal manufacturing enterprises increase production efficiency and minimize processing costs through innovative tooling solutions and technical services.
