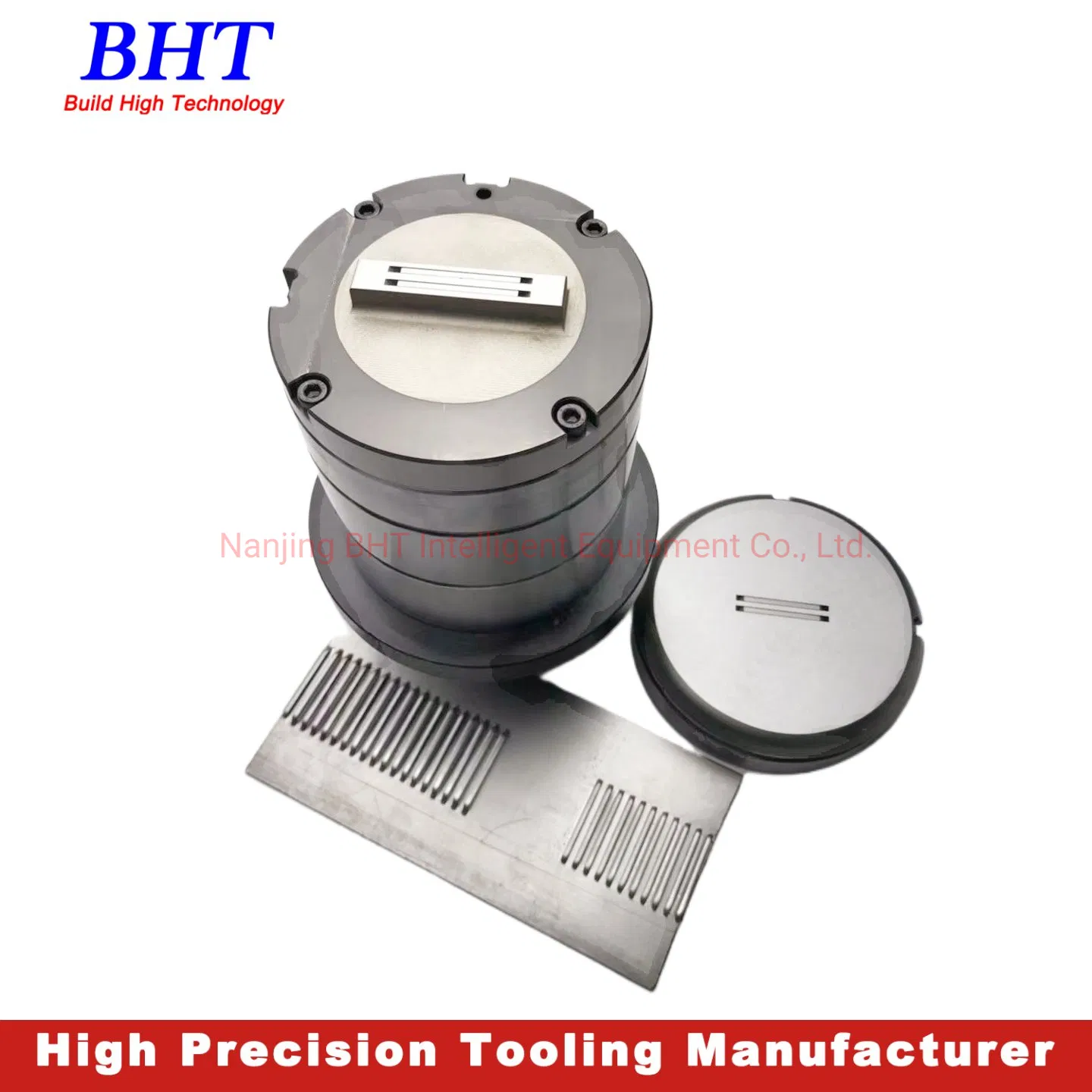

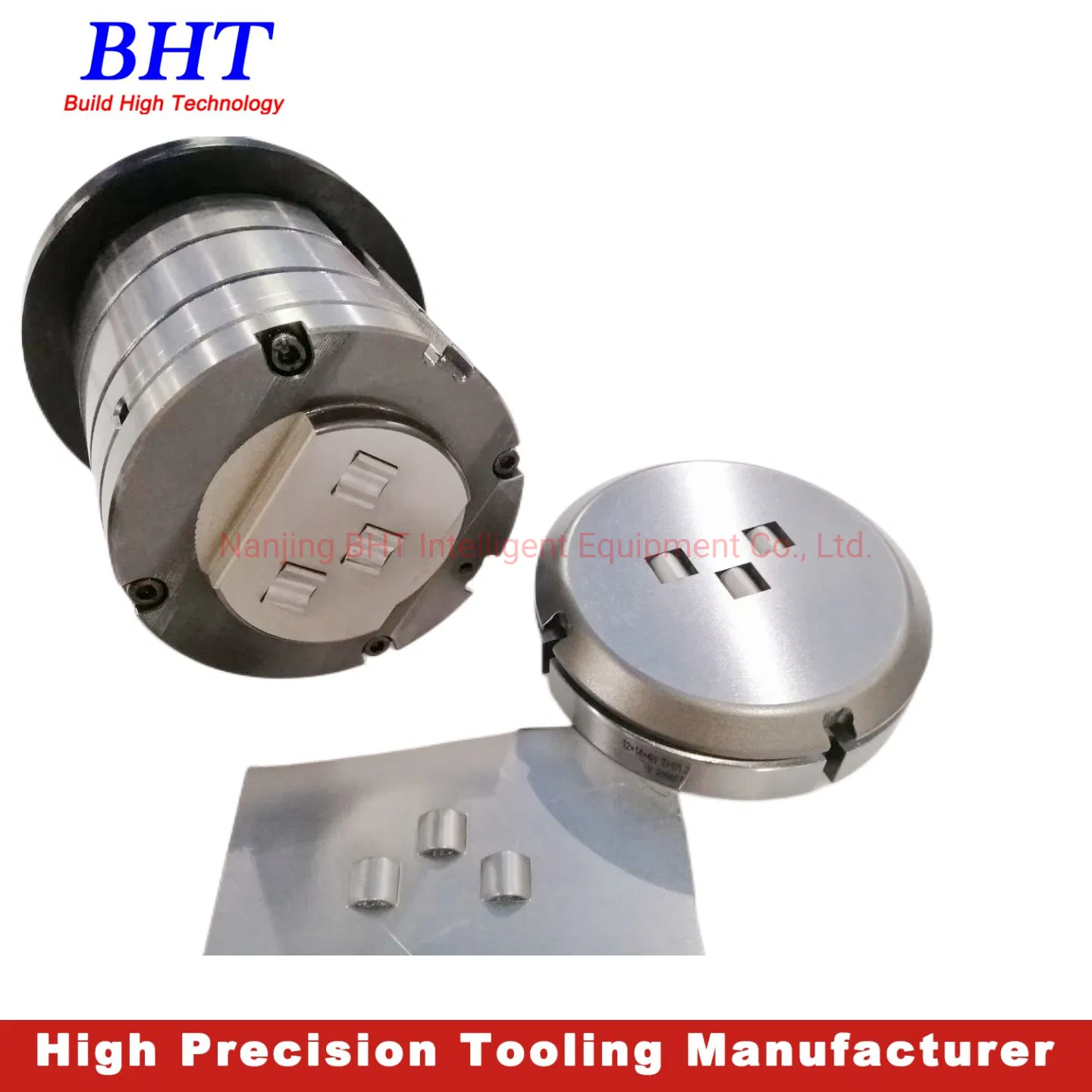

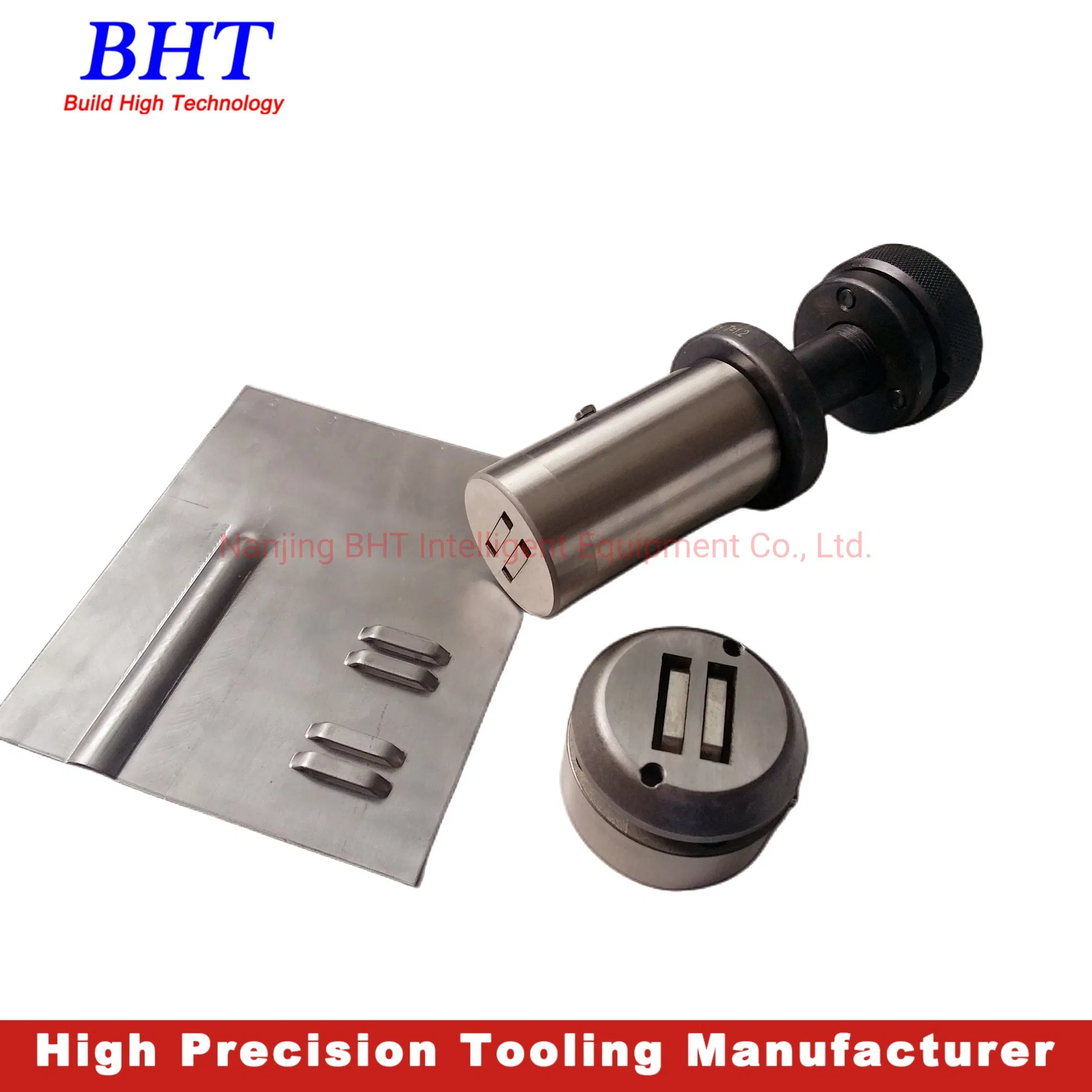

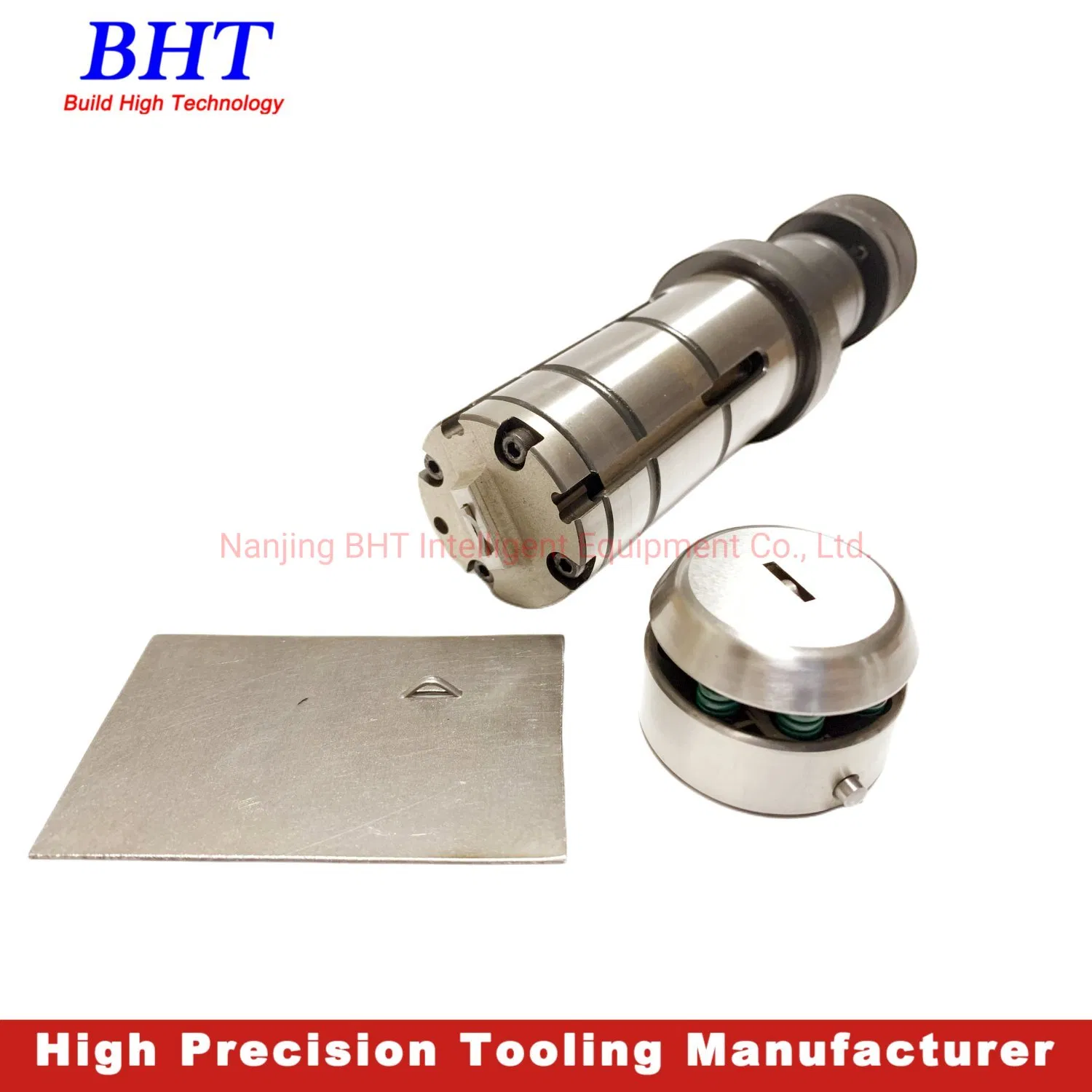

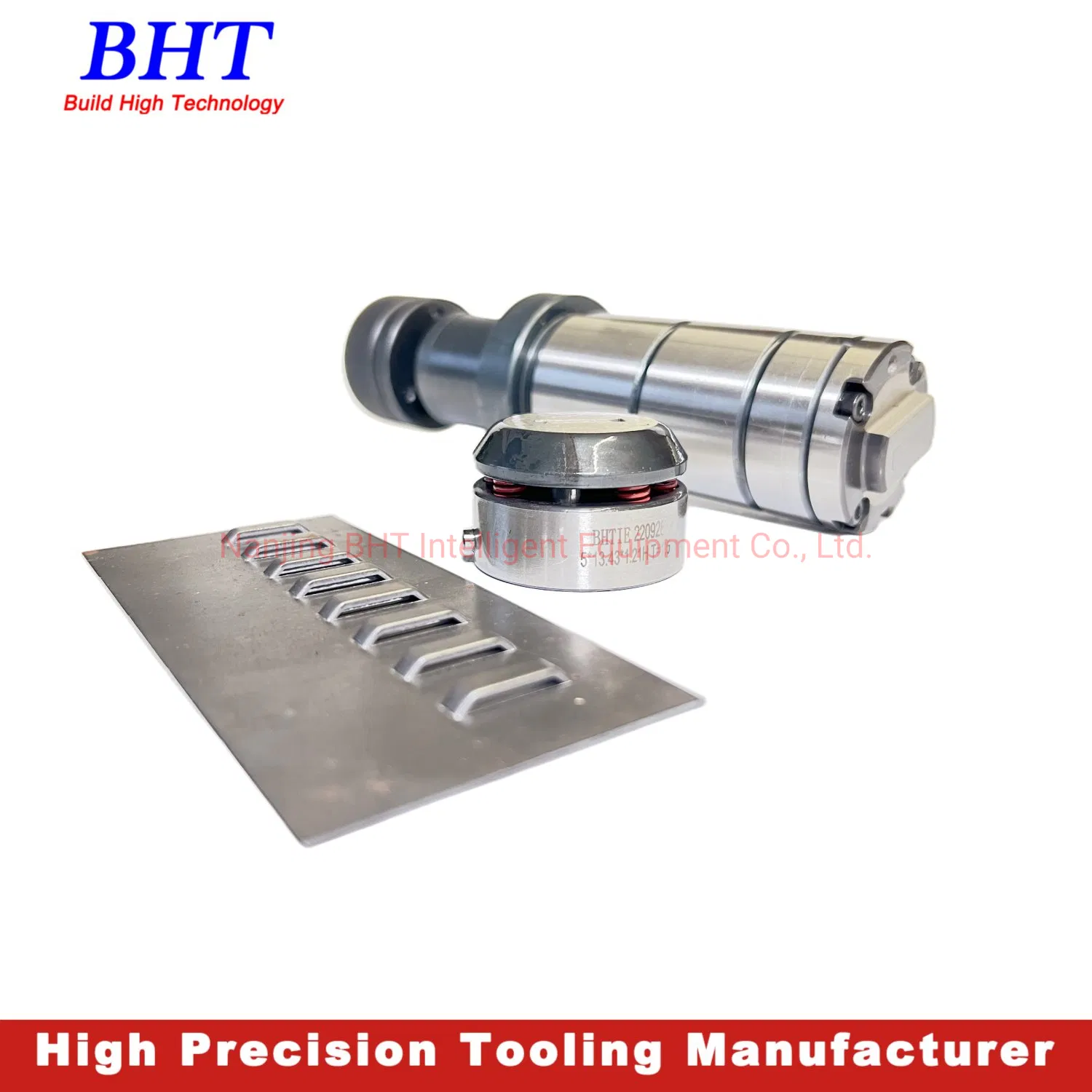

B Station Bridge Forming up Tooling, Punch Mould Die for CNC Turret Punch Machines

1 / 5

B Station Bridge Forming up Tooling, Punch Mould Die for CNC Turret Punch Machines

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

456

Material

High-Speed Steel

Processing Method

Punching and Shearing Mould

Technics

Forming Die

Process Combination

Single-Process Mould

Manufacturing

Computer Technology

Mold Cavity

CNC Milling

Hardness

HRC62-63

Punch Material

M2, D2, Skh, SKD

Coating

Tin / Ticn

Tolerance

0, +0.01mm

Production Capacity

168,000 PCS Per Month

Product Description

🚀 Compatible Brands

Our tooling is compatible with a wide range of CNC turret punch machines including: Trumpf, Amada, Finn-Power, Prima-Power, Euromac, Baykal, Ermaksan, Durma, Bystronic, Gasparini, Haco, LVD, Tailift, Yawei, Yangli, JFY, YSD, MVD, LFK, Rainer, SimasV, SNK, Dener, ITE, and more.

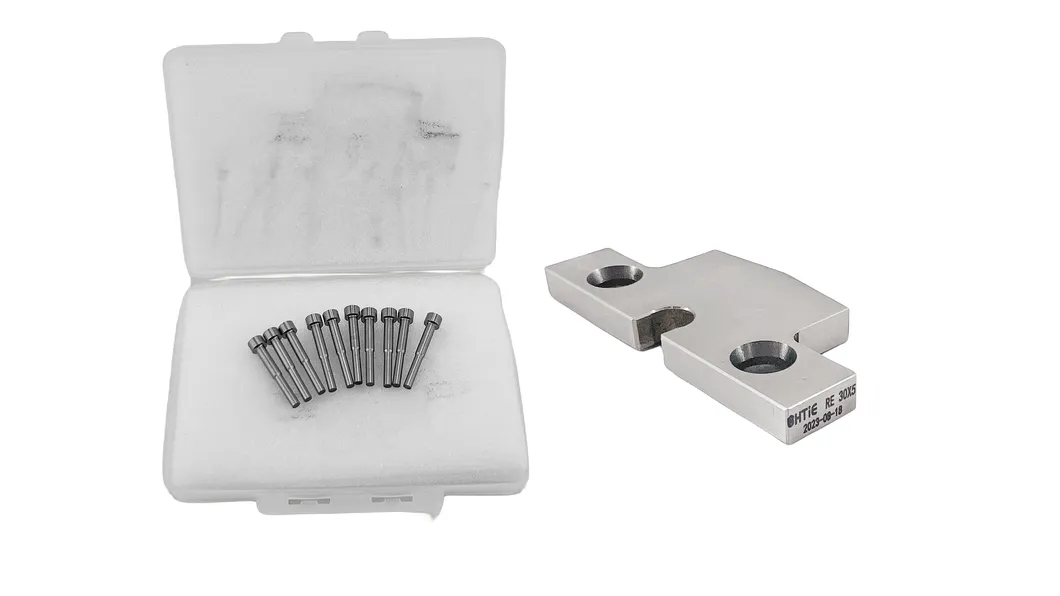

Premium Materials & Treatments

M2 (SKH51)
Excellent abrasion resistance and toughness. Suitable for stainless steel and high-volume production.

D2 (DC53)
Typical tool steel for sheet metal processing. Includes Super-subzero treatment to improve wear resistance.

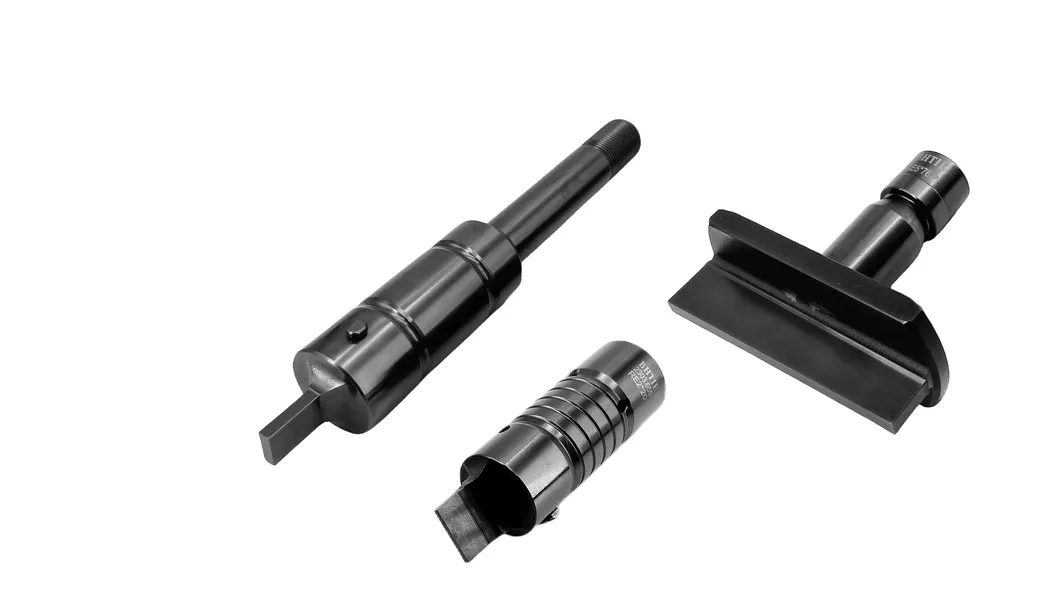

💎 Coating Technology

TiCN Coating: Applied to our premium high-speed steel. Surface hardness reaches Hv2,700 - 3,000, significantly harder than standard Tin coating, ensuring longer tool life.

Technical Reference & Design

📏 Clearance Calculation

Clearance = material thickness x clearance ratio

Mild Steel: Ratio 0.2-0.25 (Hydraulic) / 0.15 (Mechanical)
Stainless Steel: Ratio 0.25-0.3 (Hydraulic) / 0.2 (Mechanical)
Aluminum: Ratio 0.15-0.2 (Hydraulic) / 0.1 (Mechanical)

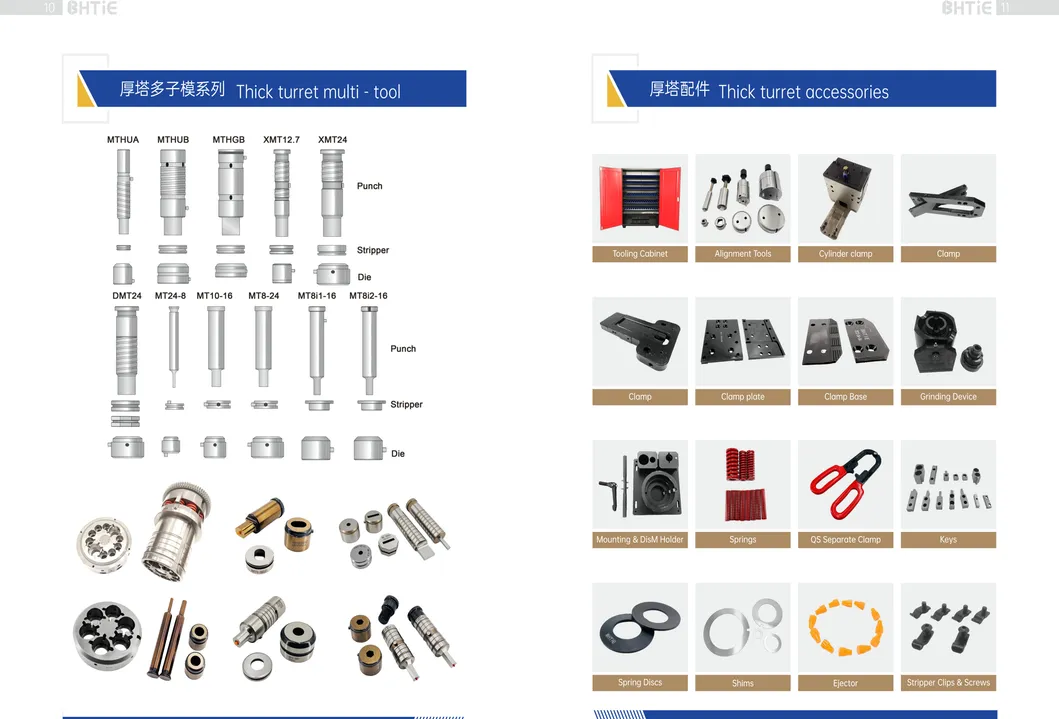

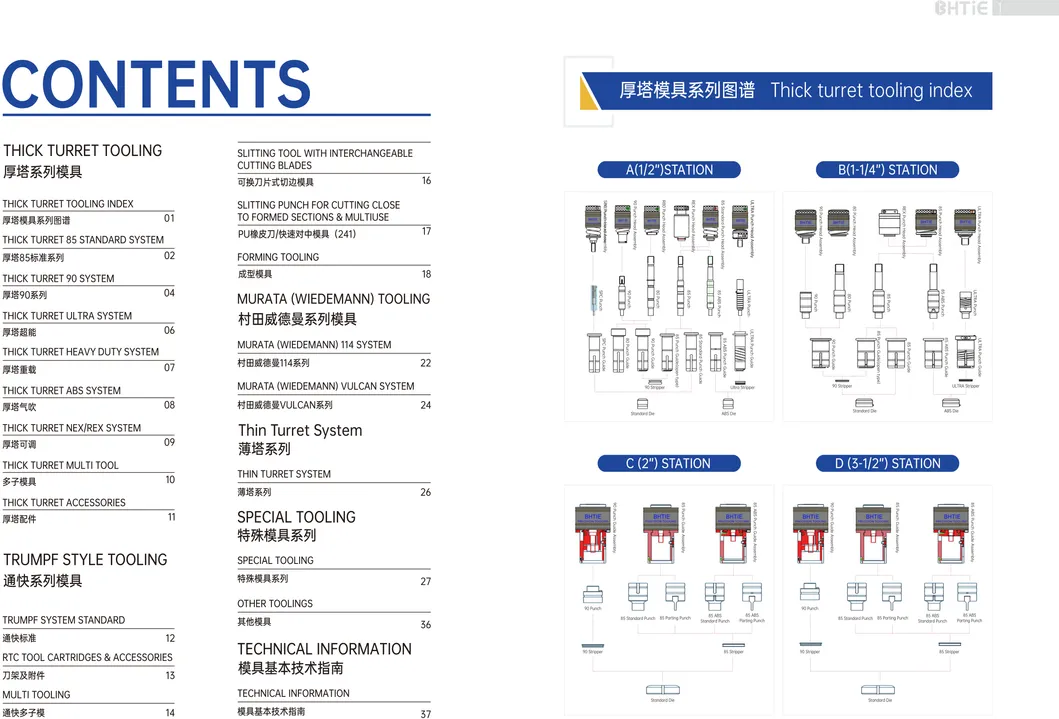

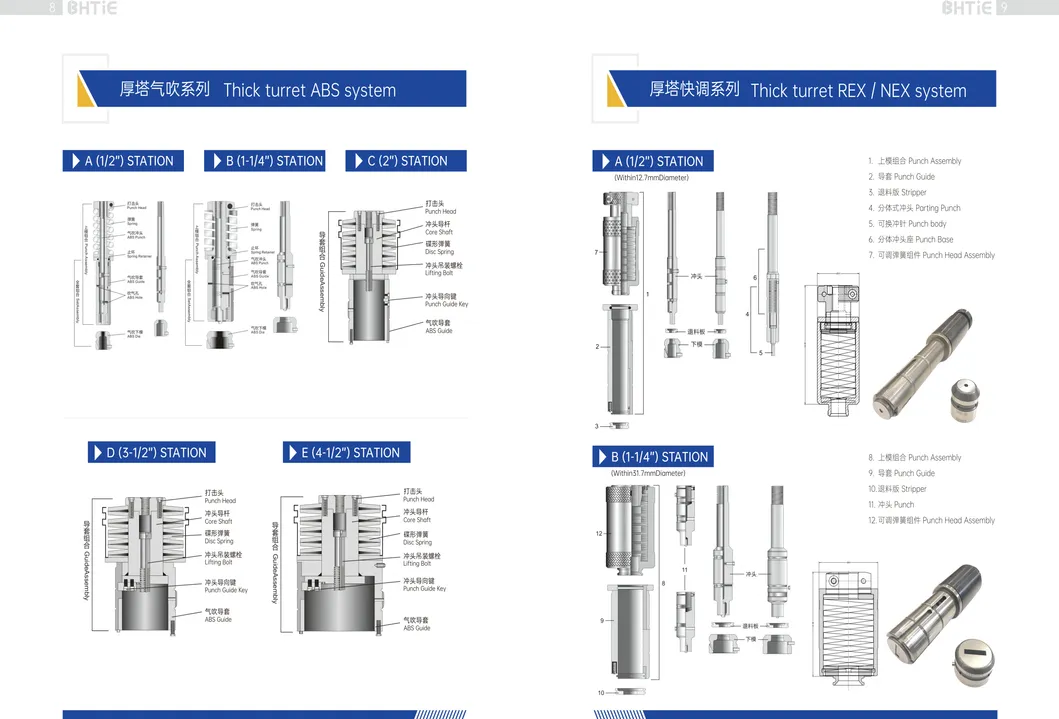

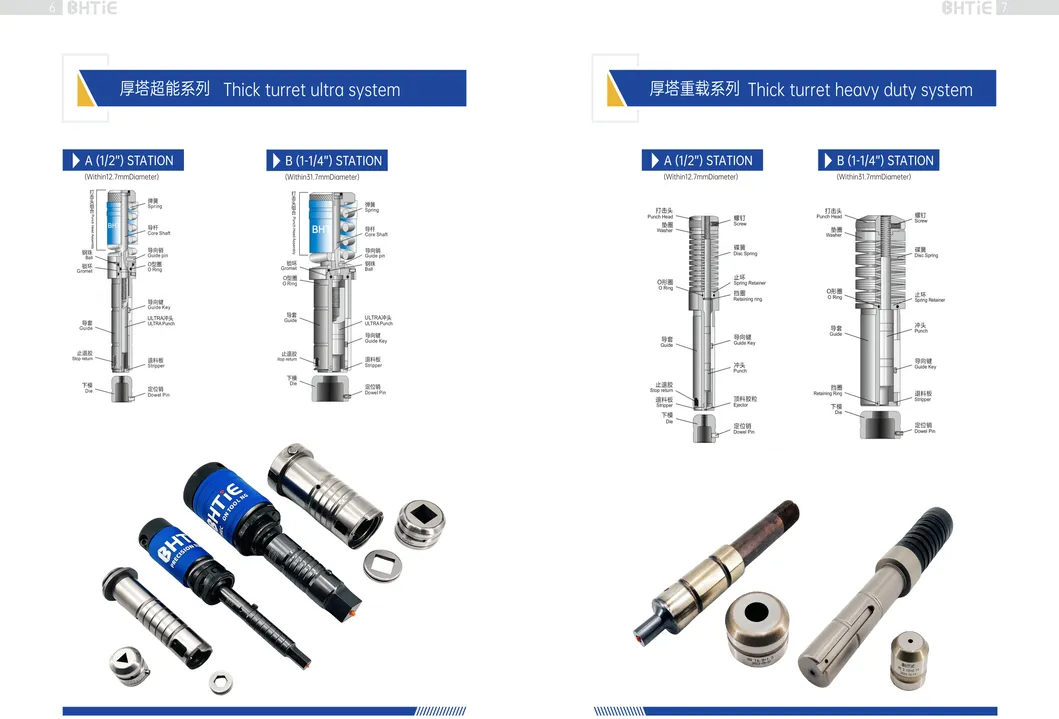

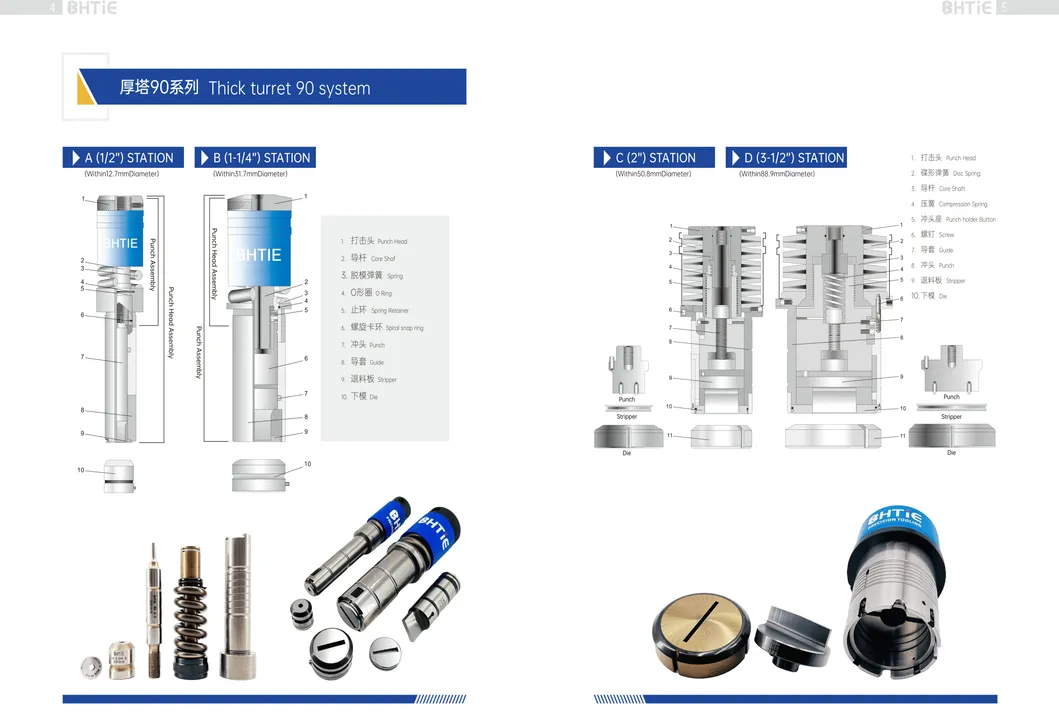

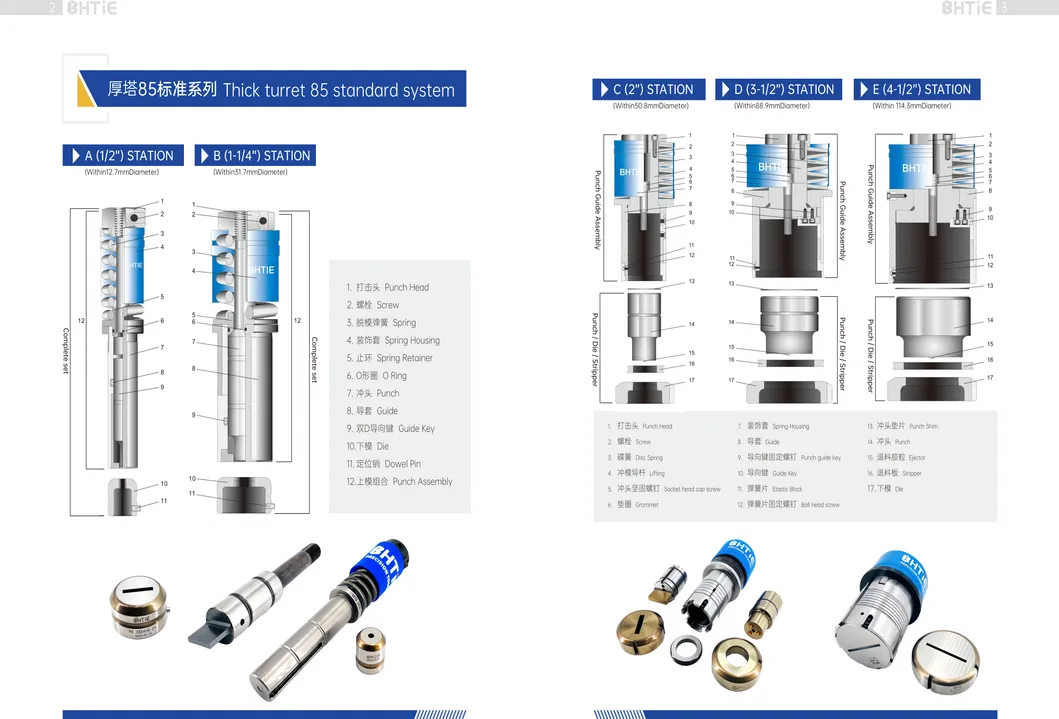

Tooling Catalog

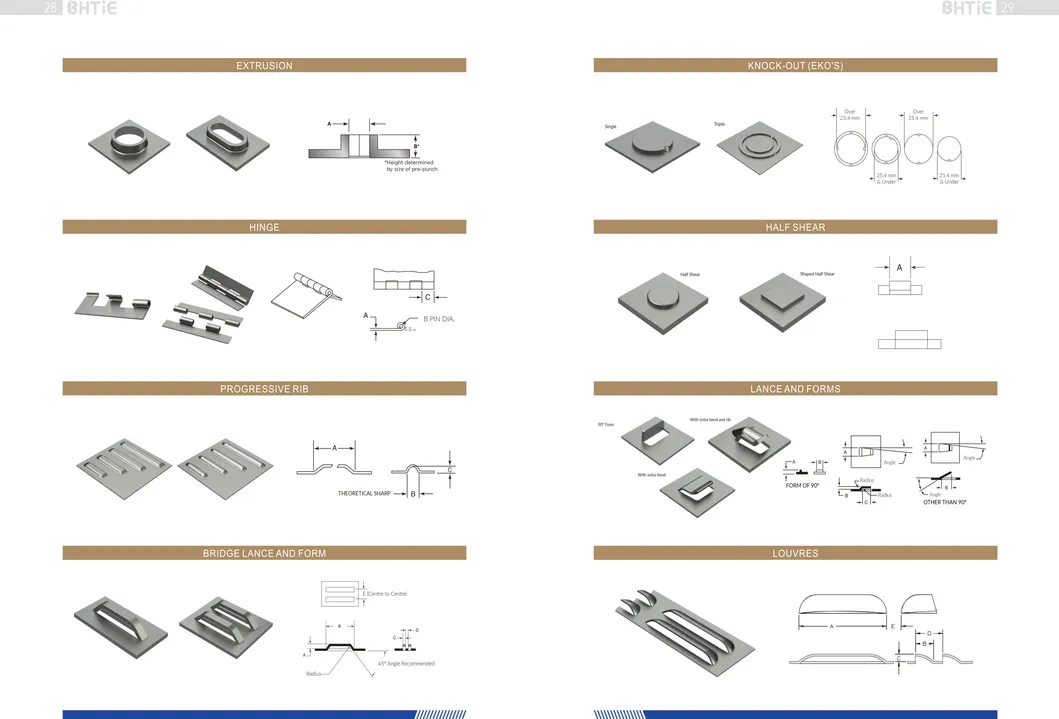

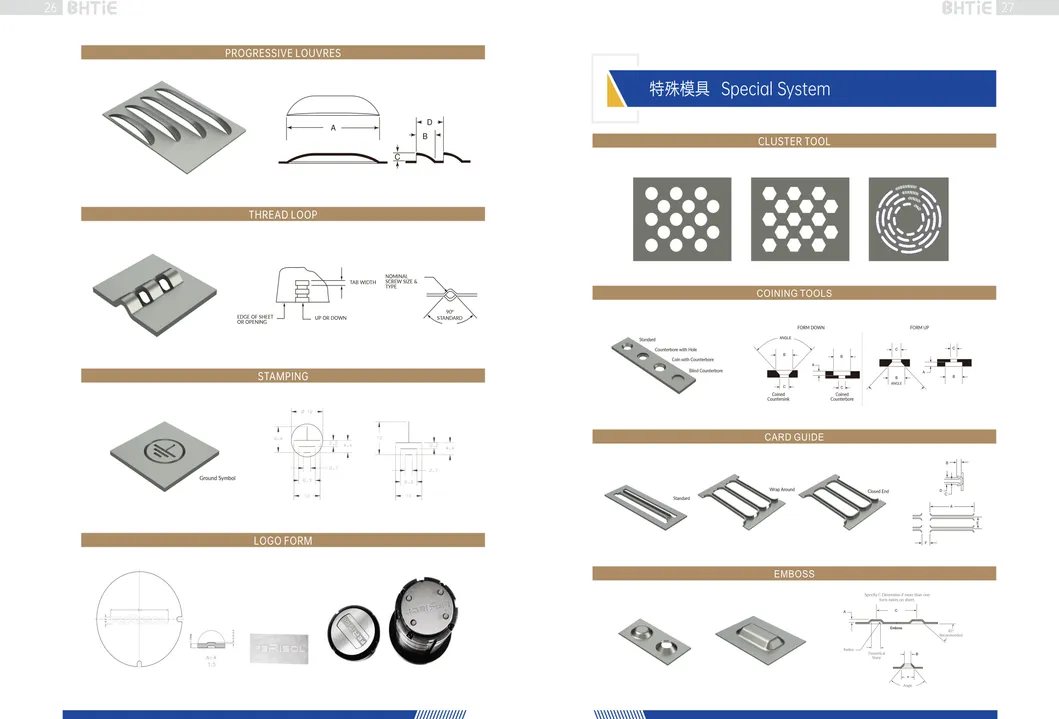

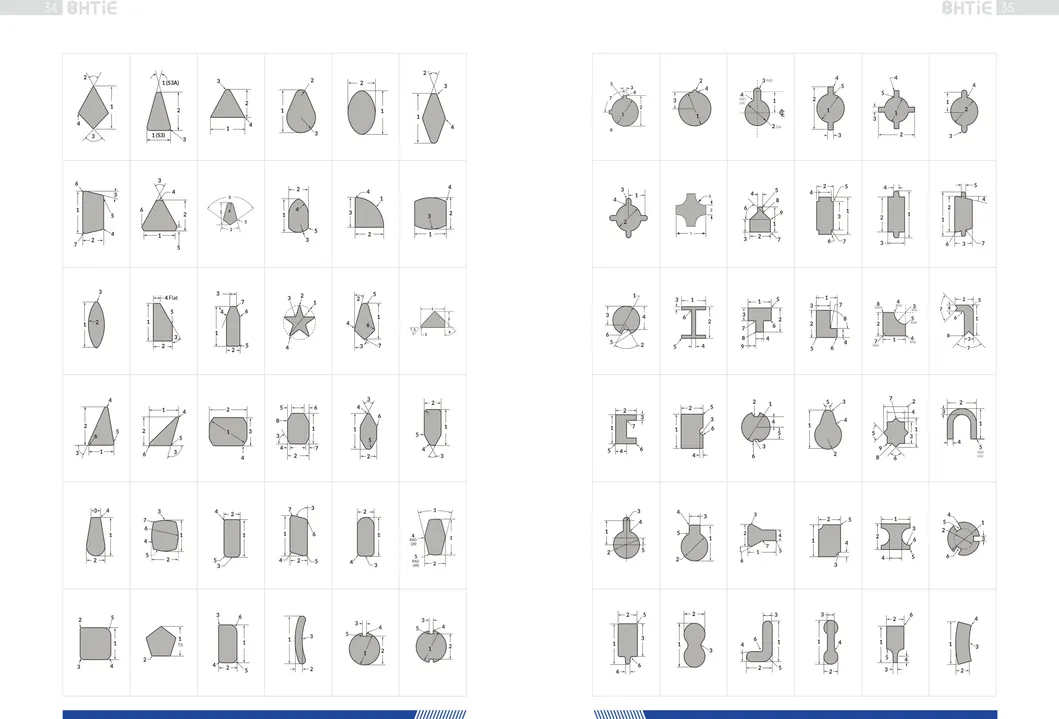

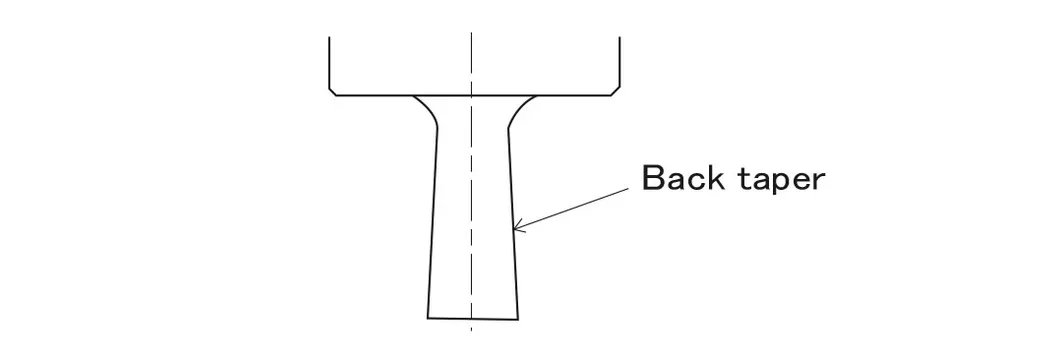

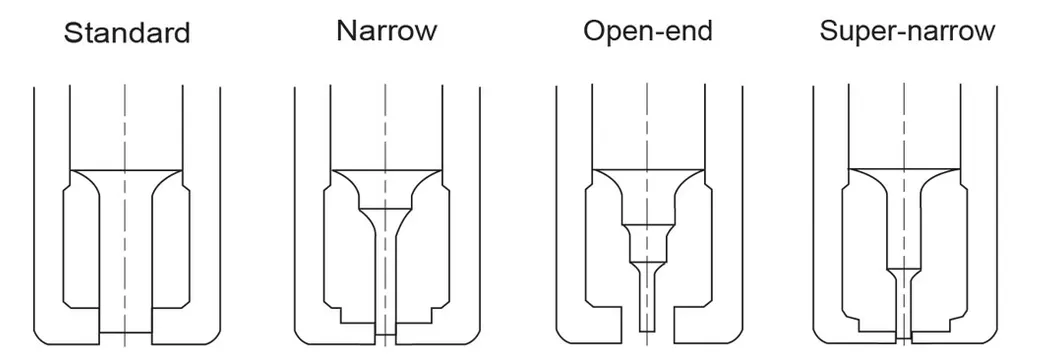

Special Applications

Manufacturing Excellence

Equipped with over 100 sets of CNC Machine Centers, EDM, WEDM, and Grinding Machines, primarily imported from Europe and Japan. We focus on high-precision Tooling Designing, Manufacturing, and Maintenance.

Global Presence

Our products have been exported to over 65 countries across Europe, North America, South America, Asia, and Oceania, serving high-demand industrial markets worldwide.

Packaging & Shipping

Frequently Asked Questions

What materials are used for the punch and die?

We use premium high-speed steels including M2 (SKH51), D2 (DC53), and ASP-23, chosen for their superior wear resistance and impact strength.

How can I extend the life of my tooling?

We recommend using TiCN coatings, implementing early regrinding, and ensuring proper alignment of the turret station. Choosing the correct clearance for your material thickness is also vital.

Is this tooling compatible with my machine?

Our tools are designed to fit major CNC turret punch brands including Amada, Trumpf, LVD, Durma, Finn-Power, and many others.

What is the advantage of TiCN coating?

TiCN coating provides a surface hardness of Hv2,700-3,000, which is significantly higher than standard Tin coating, reducing friction and tool wear.

How do I calculate the appropriate die clearance?

The clearance is generally calculated by multiplying the material thickness by a specific ratio (e.g., 0.15 for mild steel on mechanical machines). Refer to our technical chart for specific ratios.

What kind of tolerances can I expect?

Our high-precision manufacturing allows for punch tolerances within 0 to +0.01mm, ensuring consistent production quality.
