Based on diverse customer requirements, we choose the optimal mold design program to ensure quality and rapid delivery. Please provide the following details for selection:

• Detailed shape of finished product and bent portion (radius, contour size, tolerance).
• Material type and thickness.
• Scratch/Injury requirements.
• Machine specifications (model, tonnage, table length).

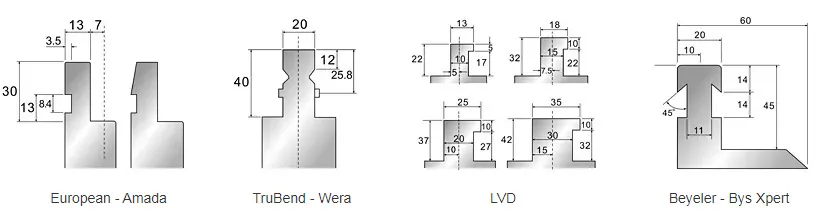

Upper Die Interface Category

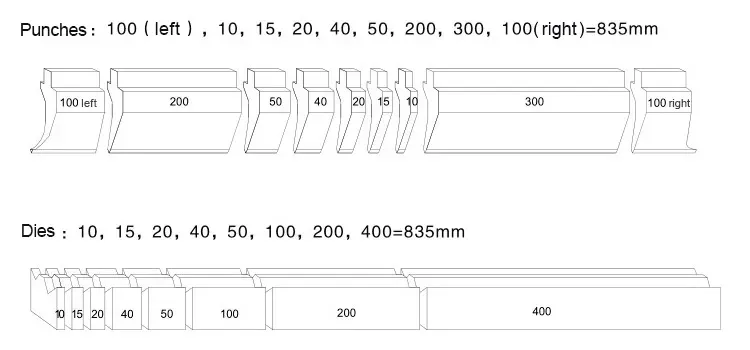

Regular Segmentation Specifications

• Upper Die Section 1: 100(L), 10, 15, 20, 40, 50, 200, 300, 100(R) = 835mm
• Lower Die: 10, 15, 20, 40, 50, 100, 200, 400 = 835mm
• Section 2: 100(L), 10, 15, 20, 40, 50, 165, 300, 100(R) = 800mm

Production Process

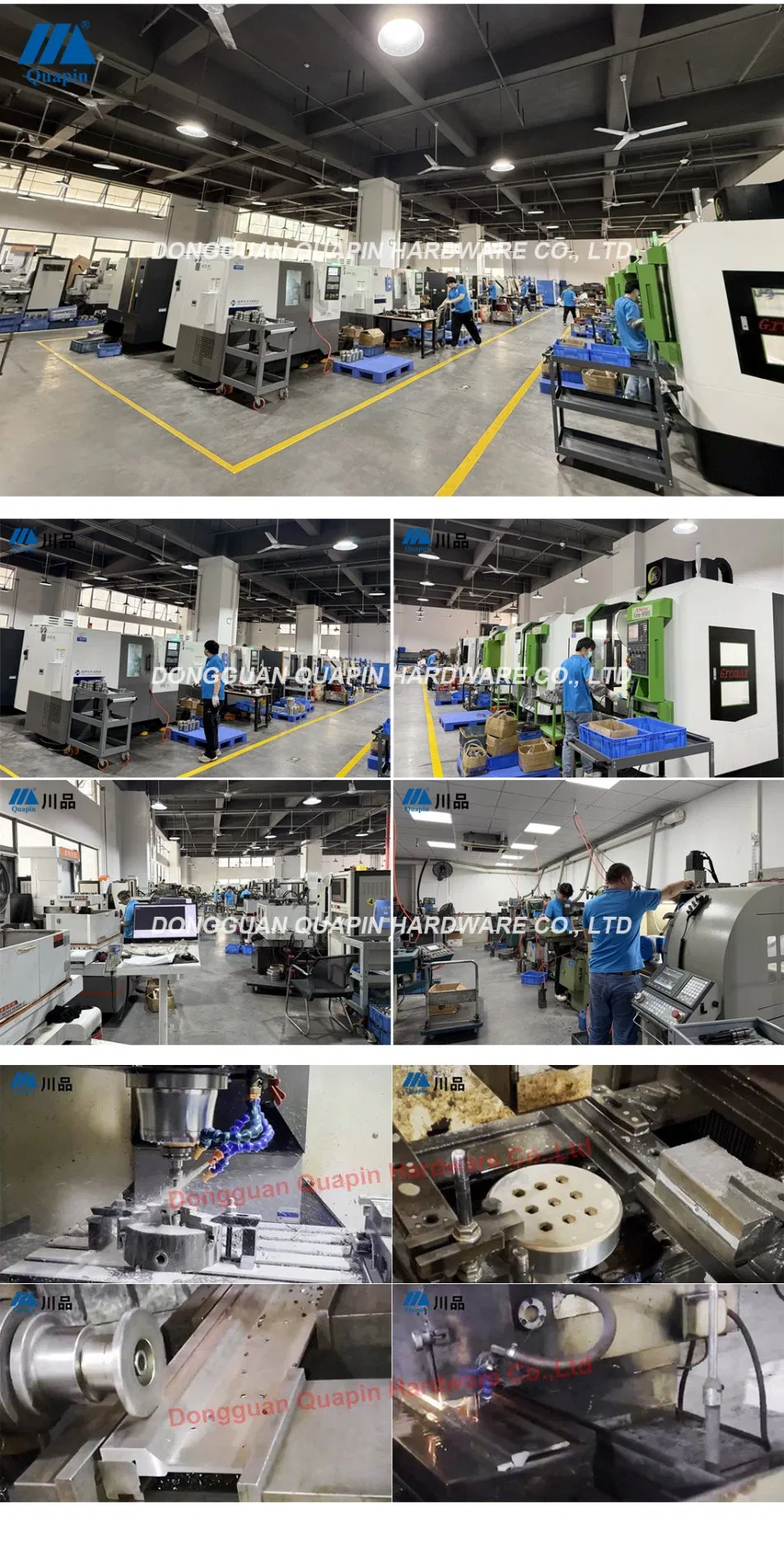

Our facility specializes in R&D and manufacturing of CNC turret punch press tooling (NCT) molds. We are equipped with advanced production and inspection equipment including CNC machining centers, computer lathes, Sodick wire-cut machines, EDM machines, and precision grinders. We leverage CAD/CAM/UG manufacturing capabilities to ensure high-efficiency management.

The team provides free technical services, rapid delivery, and intelligent stocking to help metal manufacturing enterprises increase production efficiency while minimizing processing costs. We serve thousands of businesses across the elevator, machine tool, and top-tier industrial sectors globally.
